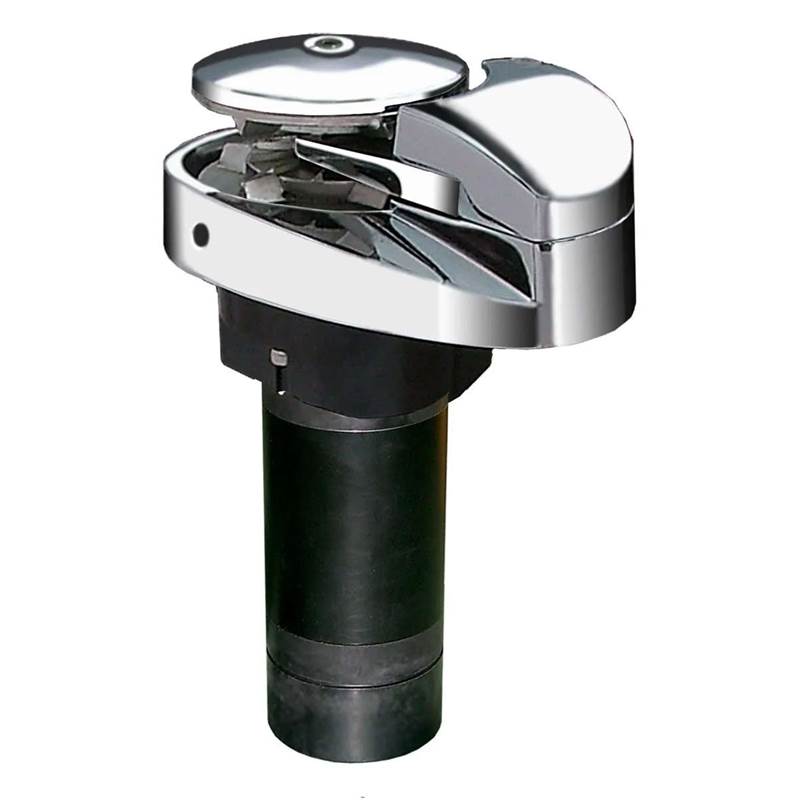

Vertical Windlass Kits with Aluminium Base - VA Series The VA Series of one piece vertical windlasses come in two models with a combination of gypsy. The 1000W, VA1000 with an 8mm gypsy and the 700W, VA600 with either a 6mm or 8mm gypsy.

The VA series are made of marine grade aluminium alloy with a powder coated finish to ensure corrosion resistance. The metal gearbox, heavy duty DC motor and base have been designed in one providing a robust unit and enabling easier installation. The one piece vertical unit also eliminates the need for additional gears.

Windlass Kit

• Windlass VA Series
• Direct Control Switch SW-200 (no solenoid required)
• Circuit Breaker CB-001-30
• Fixing Bolts
• Manual & Template

Features:

• Stainless steel gypsy takes both rope and chain
• Efficient spur gears, low current draw, high output power
• A torque limiter to deliver smoother operation and greater reliability.
• Efficient heavy duty DC motor produces less heat
• Manual retrieval capable with a handle bar included
• Compact one-piece unit for easy installation

Specifications

• Power:700W
• Operating Voltage : 12V DC only
• Max. Working Load : 300kg
• Typical Working Load : 55kg
• Retrieval Speed : 20m/min
• Pay-Out Speed : 25m/min
• Current Draw (Typical) : 22 A
• Gear Type : spur gear
• Weight : 6.5kg / 7kg

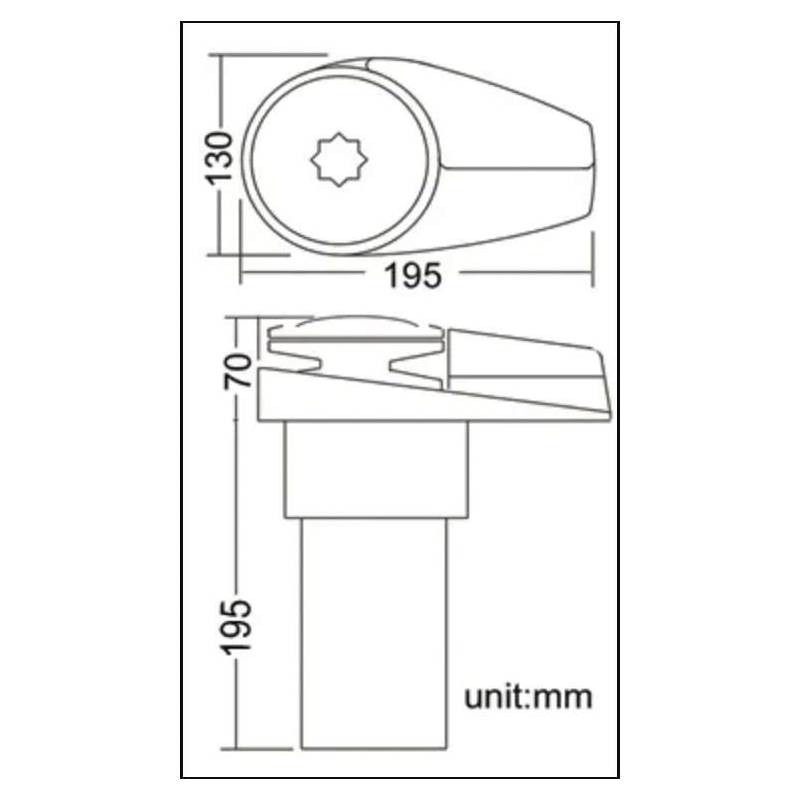

• Dimension above deck: 195mm x 130mm x 140mm
• Gypsy: 6mm chain which suits rope of 12mm.
• Suit Deck Thickness : 3mm~60mm
