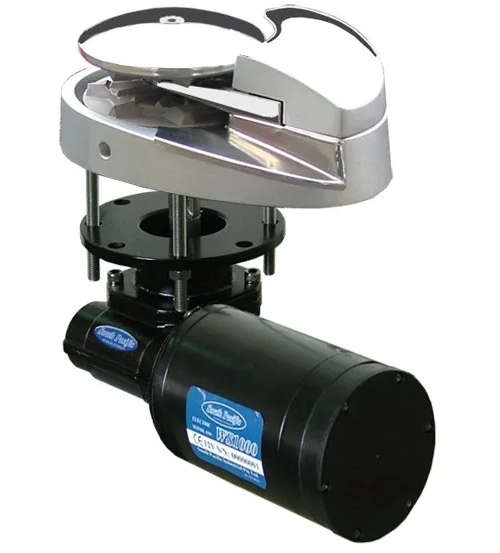

Vertical 1100W Windlass Kit WA1100 with Aluminium Base, Horizontal Power Unit & 8mm Gypsy. South Pacific WA1100 series is designed for boats from 28ft to 42ft or to handle an anchor up to 18kg. The power unit is held horizontally and beneath the deck which reduces the space requirement of the unit but at the cost of a more complex gear box and power efficiency. The unit benefits from an improved self-locking worm gear box which gives it high stress capacity and can also can reduce power consumption by up to 15%. The power unit can be oriented in one of eight horizontal positions. A built in torque limiter absorbs sudden impacts to deliver a smoother operation and greater reliability. Available with an 8mm stainless steel gypsy.

Windlass Kit

• Windlass WA1100
• Switch for Solenoid SW-025
• 200A solenoid K-200
• Circuit Breaker CB-003
• Fixing Bolts
• Manual & Template

Features

• A torque limiter to deliver smoother operation and greater reliability
• Efficient heavy duty DC motor
• Stainless steel Gypsy takes both rope and chain
• Manual retrieval capable

Specifications

• Power: 1100W
• Operating Voltage: 12V only
• Weight: 9kg
• Max. Working Load: 500kg
• Typical Working Load: 85kg
• Current Draw (Typical): 65A(12V)
• Current Draw (Max.):320A
• Gear type: worm gear
• Retrieval Speed: 20m/min
• Pay-Out Speed: 24m/min

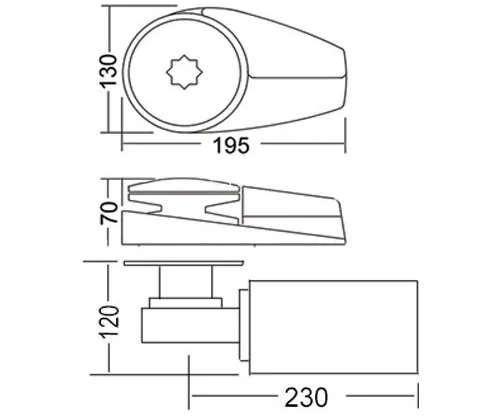

• Dimension above deck: 195mm x 130mm x 140mm
• Gypsy 8mm chain which suits rope of 12mm-14mm
