Silva Steering and Sighting Boat Compass 70UN

  • Unavailable

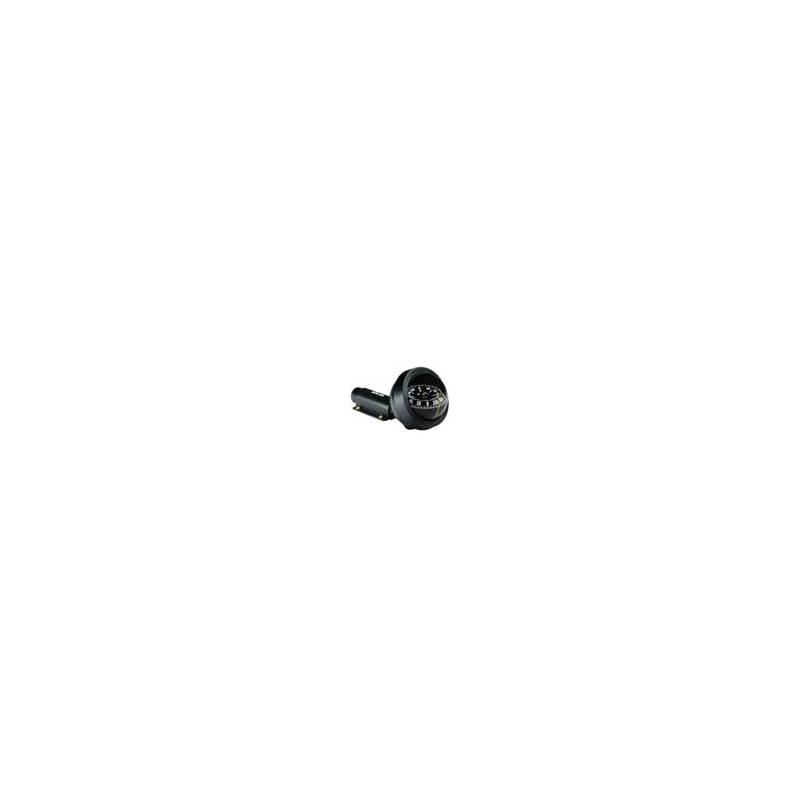

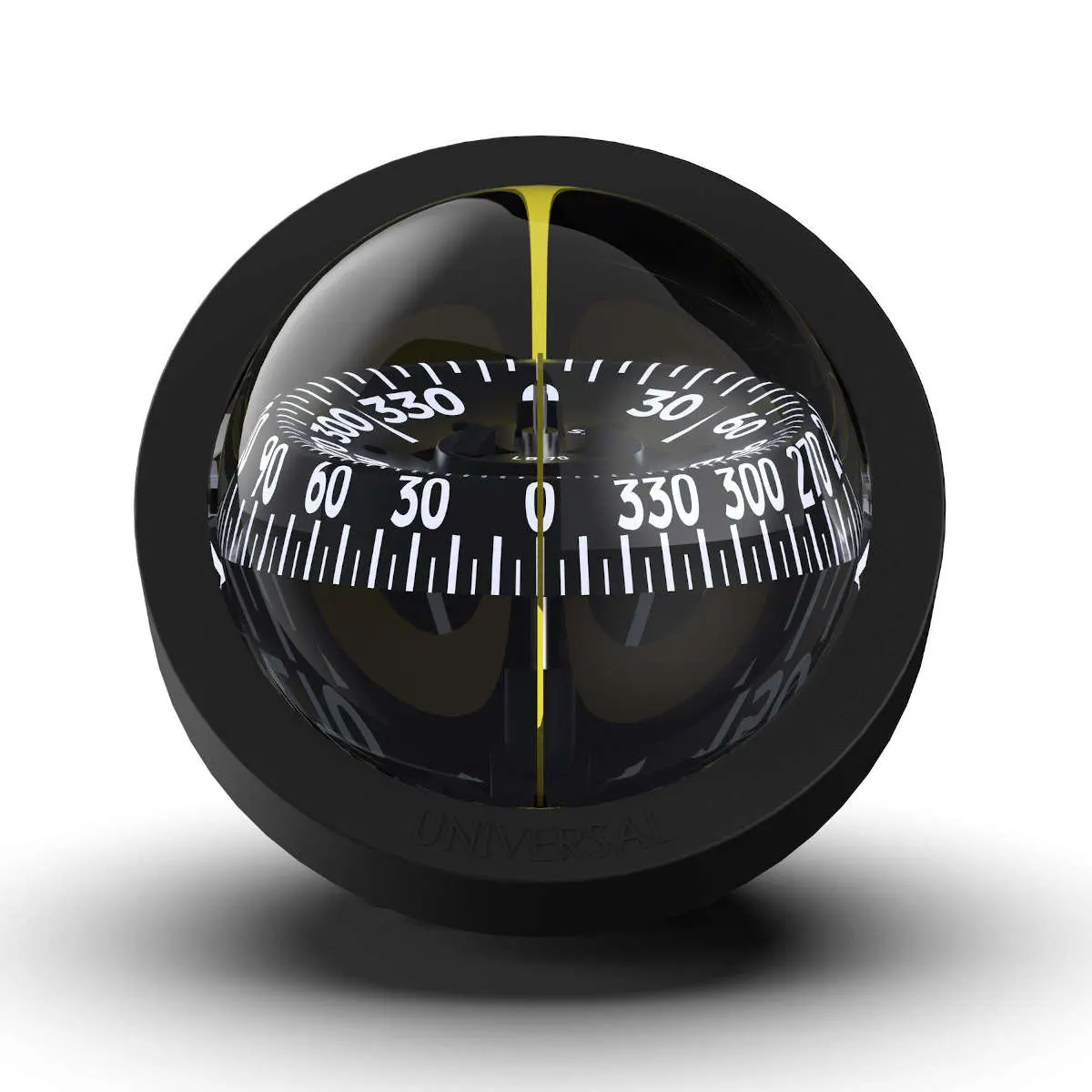

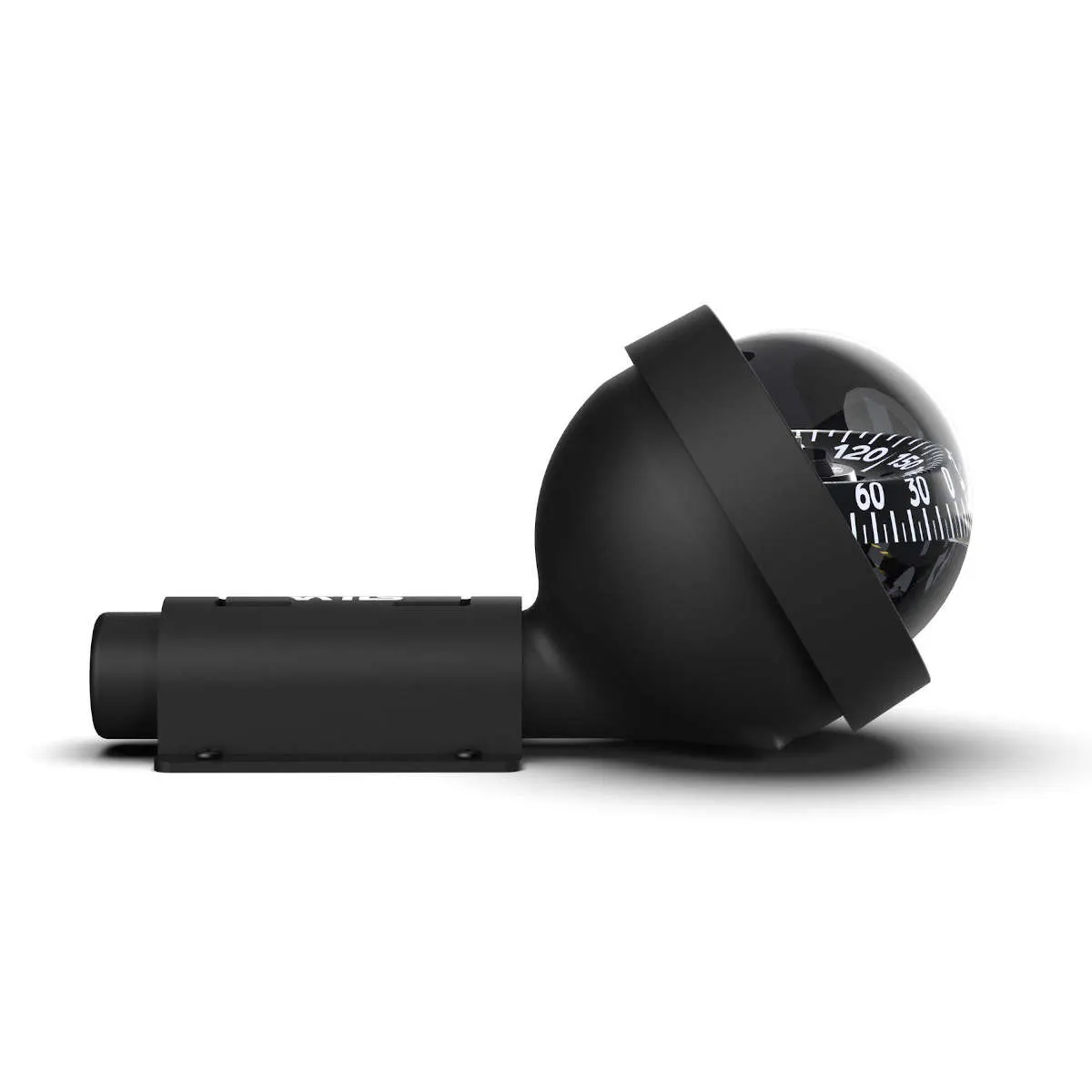

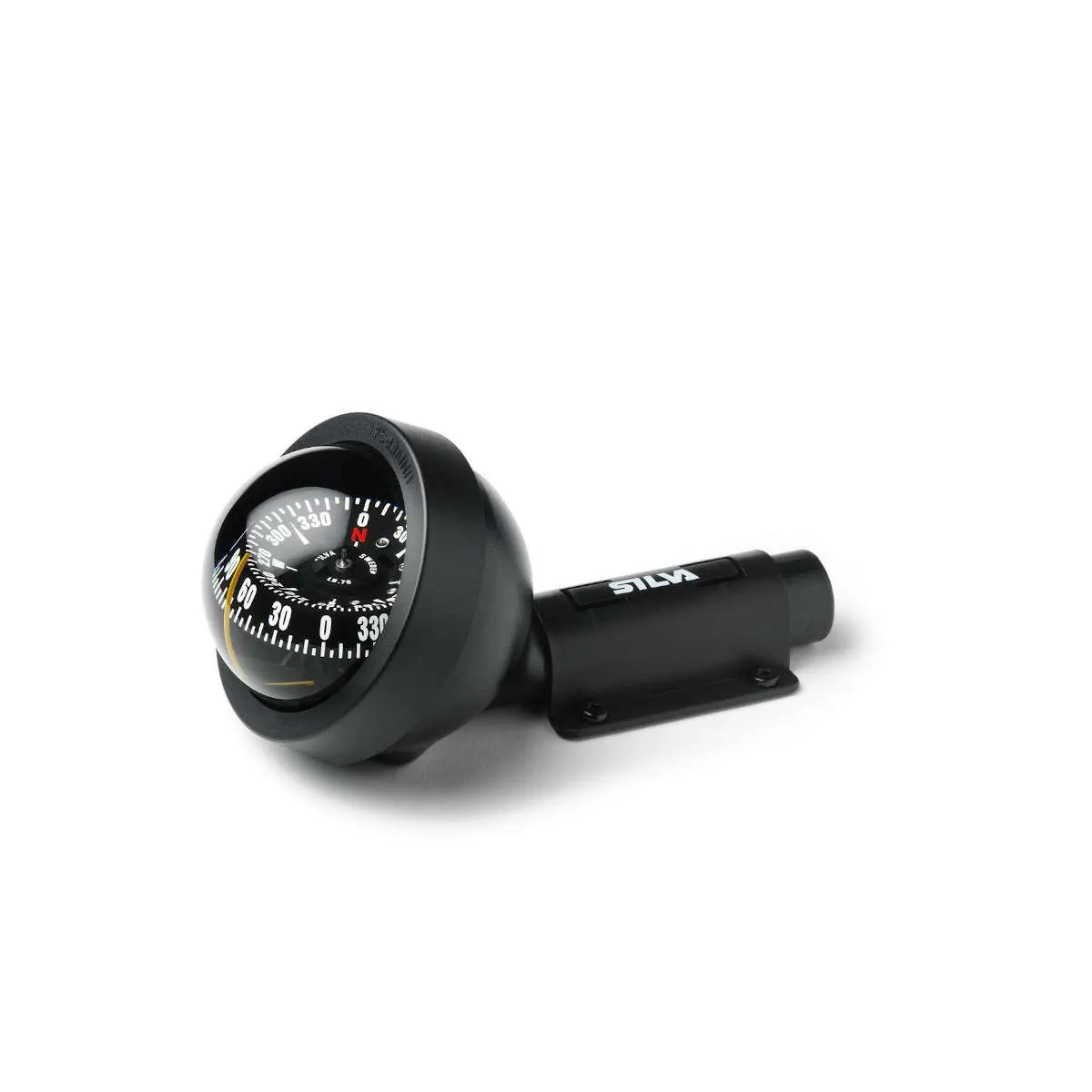

The Silva Multi-Purpose and Handheld Compass 70UN for use on small vessels has the dual function of acting as a bearing compass when it is installed in its mounting with the option to use it as a handheld compass when it is removed from that mounting.


Product added to the basket.
There was problem with adding product to the basket. Please contact our support.

Silva Steering and Sighting Boat Compass 70UN

The Silva Multi-Purpose and Handheld Compass 70UN for use on small vessels has the dual function of acting as a bearing compass when it is installed in its mounting with the option to use it as a handheld compass when it is removed from that mounting.

In addition, the versatility of this compass is enhanced as it can be mounted in a whole variety of ways to suit the particular situation on board the boat it is used on. For example, it can be installed in any position and in any inclination and even then the mounting supplied with it allows it to be removed quickly and easily.

The Silva Multi-Purpose and Handheld Compass 70UN is suitable for use on a variety of small craft such as canoes, kayaks, dinghies, and other small boats.

Specification

  • Temperature range operation: -10 to +70°C (+14 to +158°F)
  • Temperature range storage: -30 to +80°C (-22 to +176°F)
  • Weight: 405 g
  • Illumination: No
  • Compensator: Optional (sold separately; Art. No. 34475)
  • Accuracy: ±1°
  • Apparent card diameter: 70 mm (2.7 inches)
  • Card type: Cone

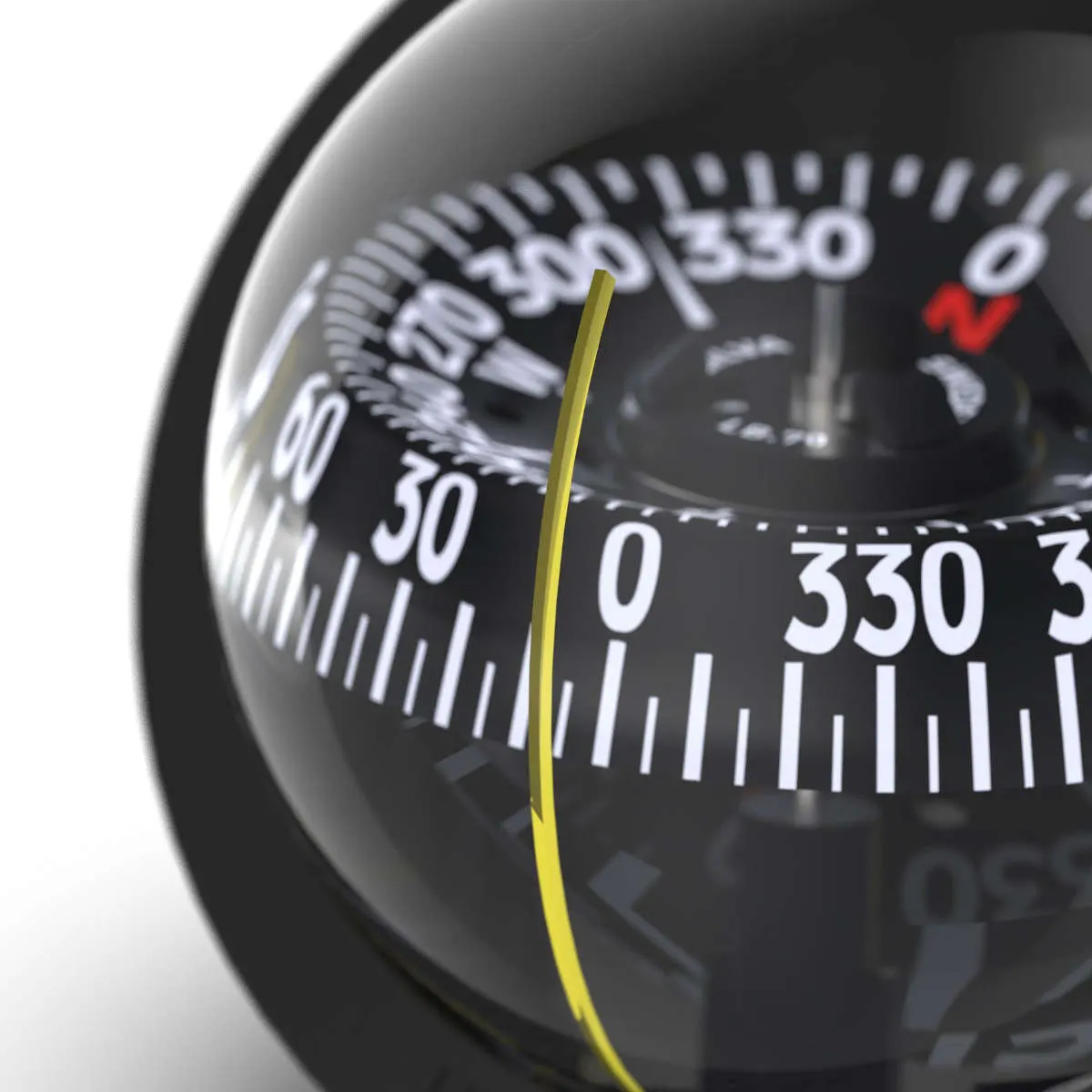

  • Card graduation: Edge: every 5°; Top: every 5°
  • Lubberlines: Centre
  • Heeling angle: Roll: 30°; Pitch: 360°
  • Gimballed cradle: No
  • Mounting: Bracket (incl)
  • Mounting angle: Any
  • Warranty: 5 years
