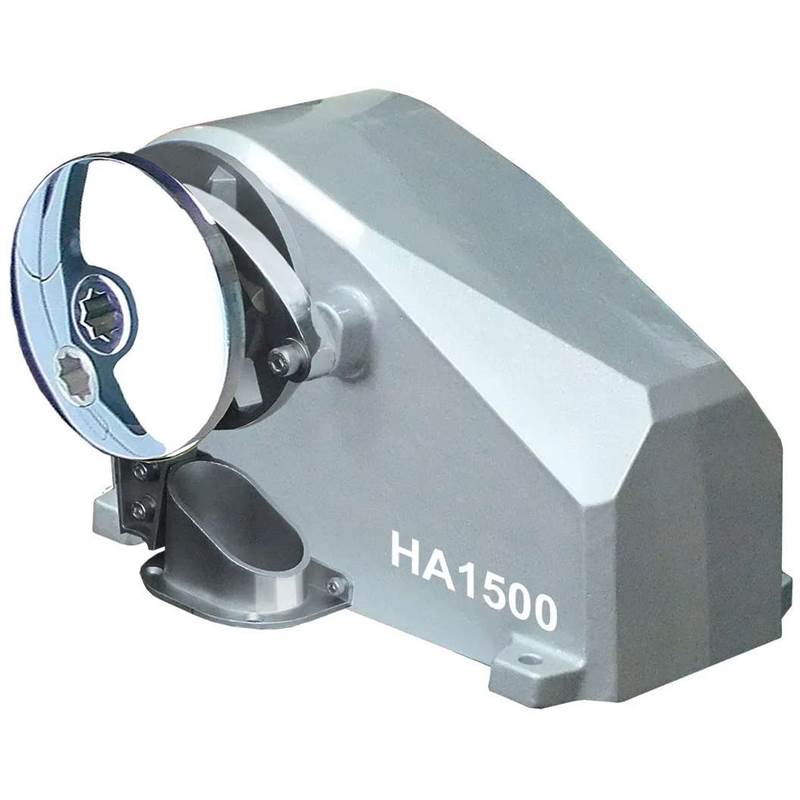

South Pacific HA1500 series is designed for boats from 40ft to 60ft or to handle an anchor up to 27kg. This larger windlass uses an improved self-locking worm gearbox providing high stress capacity and reduced power consumption. Marine grade aluminium alloy case and the newest surface coating treatment technology maintains the windlass' corrosion resistance.

Available in two models with either an 8mm or 10mm stainless steel gypsy.

Windlass Kit

• Windlass Horizontal 1500W
• Switch for Solenoid SW-025
• 400A solenoid K-400
• Circuit Breaker CB-003-140
• Fixing Bolts
• Manual & Template

Features:

• Stainless steel gypsy takes both rope and chain
• DC motor minimises heat
• Switch select free fall or power out mode
• Stainless steel drive shaft and parts
• A torque limiter absorbs sudden impacts, delivers smoother operation and greater reliability
• Compact one-piece housing ensures water resistance
• Aluminium alloy case with powder coated finish
• Installation is simple with the whole one-piece unit fitting on deck.

Specifications

• Power: 1500W
• Operating voltage: 12V DC only
• Max. working load: 680kg
• Typical working load: 120kg
• Max. retrieval speed: 20m/min
• Pay-out speed: 22m/min
• Current draw: 90amp
• Current draw: 440amp
• Gear type: worm gear
