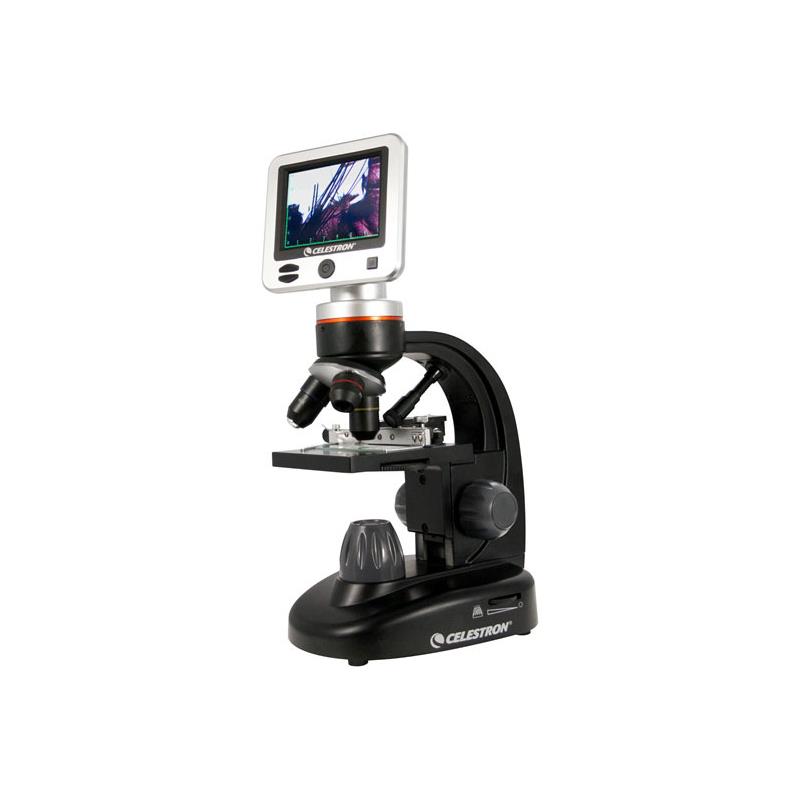

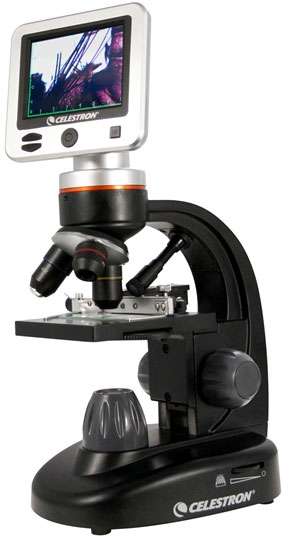

Celestron LCD Digital Microscope II

The Celestron LCD Digital Microscope II is a professional-level biological LCD microscope with fully achromatic lens objectives that limit chromatic and spherical aberration.

This impressive microscope features a mechanical stage, a 3.5-inch full-colour TFT screen and a 5MP CMOS sensor to enable high-resolution imaging of specimen slides.

The Celestron LCD Digital Microscope II is supplied complete with a 1GB SD card which has enough memory capacity to store over 600 high-resolution images for lab reports, papers, lessons, reference and so on.

The magnification ranges from 40x up to 1600x with a digital zoom for viewing a range of cellular specimens on slides. The LCD screen rotates 180° so you can display your findings to people grouped around you. For a larger audience, you can use the television output to display on a television or via a projector onto a wall screen.

The Celestron LCD Digital Microscope II will prove a very effective instrument in schools, laboratories and research institutions.

Features

  • Professional digital biological microscope
  • Full-colour 3.5-inch TFT LCD screen with onboard software
  • Built-in 5MP digital camera captures high-resolution images and 30 fps SD video of specimen
  • Fully adjustable mechanical stage for easy slide movement

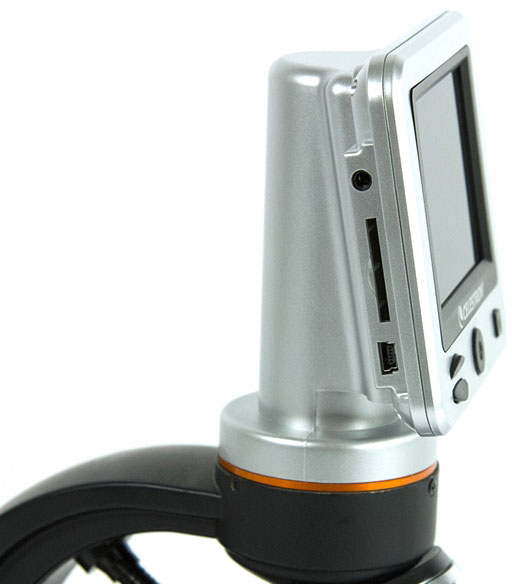

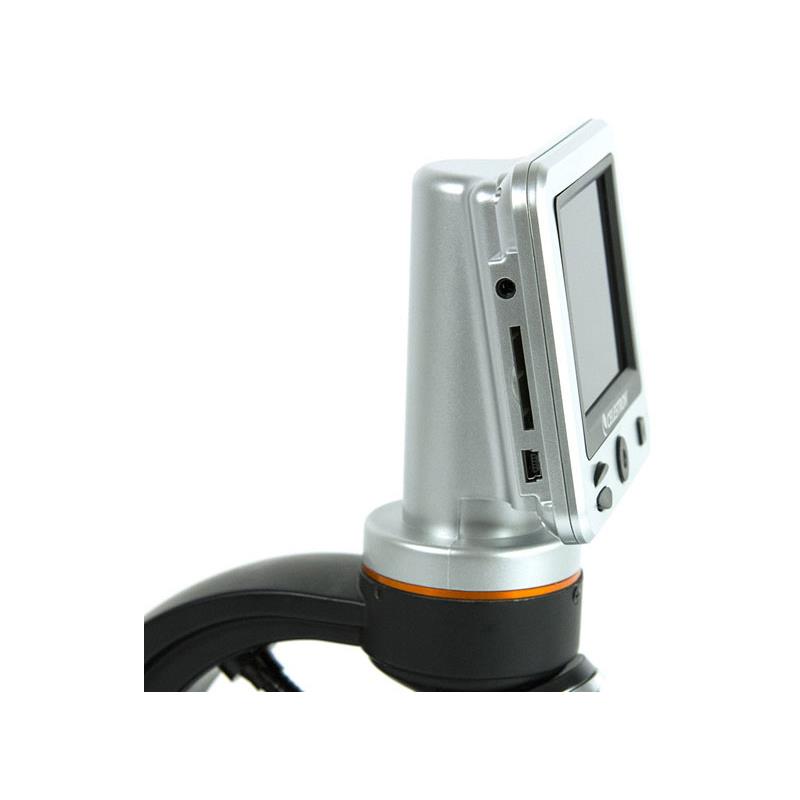

  • 180° rotating head for easy sharing of images
  • Rotating objective lens turret with 3 lens powers: 4x, 10x, 40x
  • Camera sensor acts as 10x eyepiece lens yielding 40x, 100x, 400x powers
  • 4x digital zoom for magnification up to 1600x
  • Measuring reticle for comparing specimen sizes
  • 1GB SD card included can store up to 620 high-resolution images
  • TV output for display on large monitors for classroom or lab environment

Specification

  • Stage: Fully mechanical stage with metal clips
  • Stage dimensions: 88 x 88 mm (103.5 x 3.5 inches)
  • Digital camera: 5MP CMOS sensor, 10x magnification in lieu of eyepiece

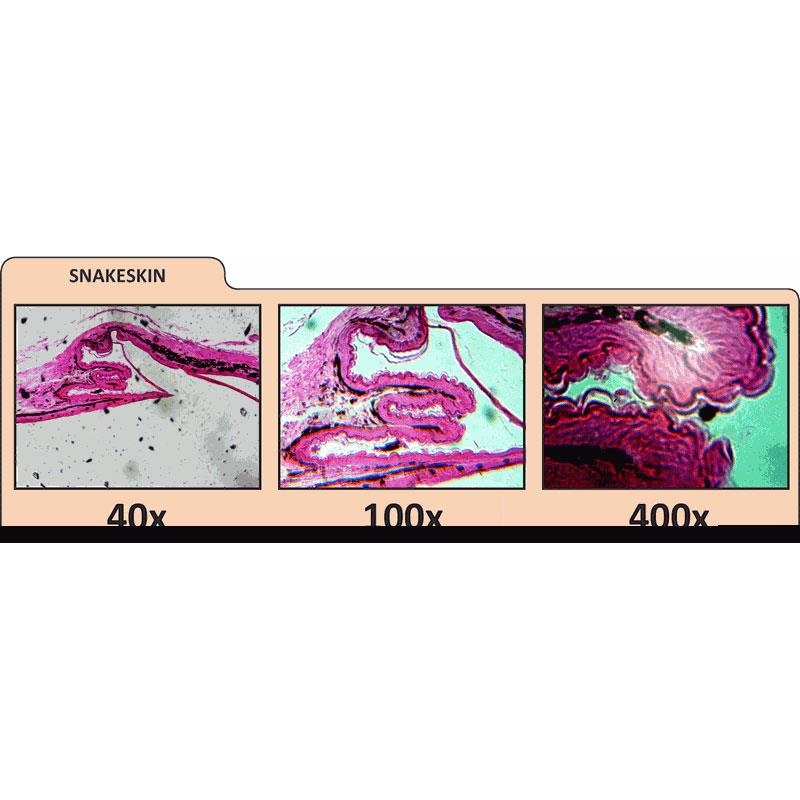

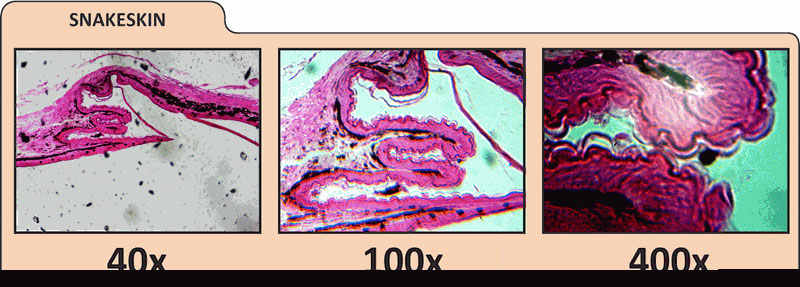

  • Magnification: 40x, 100x, 400x (1600x with digital zoom)
  • LCD monitor:
  • 3.5-inch (90-mm) diameter with 4x digital zoom
  • High-definition touch digital TFT display
  • Resolution: 320 x 240 pixels
  • Contrast ratio: 300, colour
  • Support: 262K colours
  • Brightness/luminance: 430 cd/m2
  • Focuser: Smooth, single motion
  • Objectives: Achromatic 4x, 10x, 40x
  • Memory: SD card slot with 1G SD card included (supports up to 32G)
  • USB cable: 1.5 m, USB2.0
  • Illuminators: Built-in upper and lower adjustable LED: DC 5V, 2~3W
  • AC adapter: Input universal 100-240V, 50/60hZ
  • Imaging sensor: CMOS 5.0MP, 10x magnification in lieu of eyepiece
  • AC adapter: Input universal 100-240 volt, 50/60 Hz, 4-plug multi-country
  • USB connection: 1.5-m USB2.0 cable included
  • Low power magnification: 40x
  • High power magnification: 400x (1600x with digital zoom)
  • Continuous video (VGA): Yes, 30 fps
  • Included accessory: 1GB SD memory card
  • Objective nosepiece: 3 positions with click stop
  • Objective lens diameter: 3 achromatic 4x, 10x, 40x
  • Condenser lens: 0.65NA
  • Illumination: Built-in adjustable LEDs upper and lower
  • Stage: Fully mechanical with metal clips; 88 x 88 mm (3.5 x 3.5 inches)
  • LCD screen: High-definition touch, 320 x 240 pixel resolution, 90 mm (3.5 inches) with 4x digital zoom, 262K colours
  • 6-position filter wheel: Red, blue, green, 1-mm, 3-mm, 6-mm aperture
  • Dimensions: 170 x 140 x 330 mm (6.7 x 5.5 x 13 inches)
  • Weight: 1600 g (56 oz)

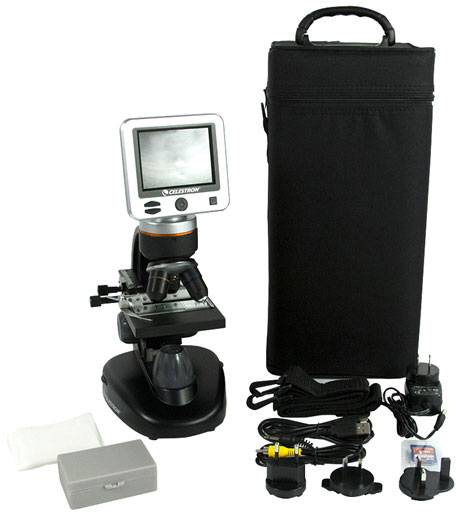

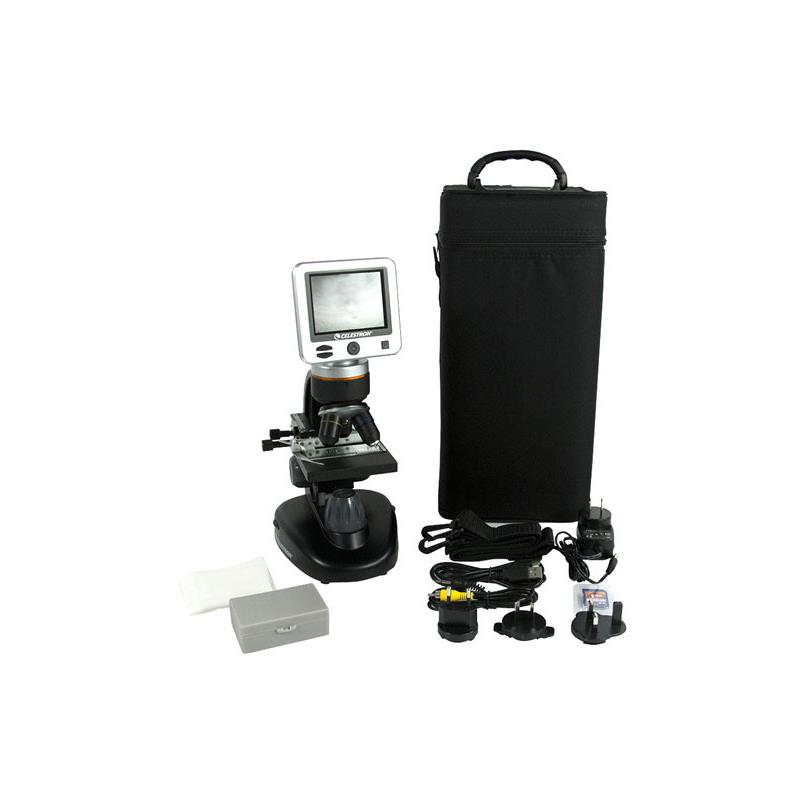

Included Accessories

  • 1GB SD card
  • 5 prepared slides
  • 4-plug, multi-country AC adapter
  • Dust cover
  • Rugged canvas carrying case with shoulder strap
