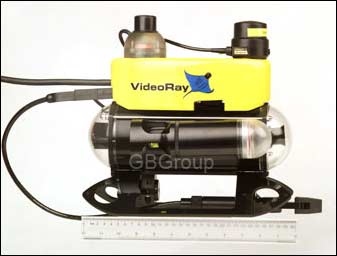

Videoray Pro III XE Underwater Camera

The VideoRay Pro III XE Underwater Camera is the latest model of the VideoRay Pro line, the most popular model for commercial or demanding applications.

It includes the submersible, integrated control box, 76 m (250 ft) of tether on Tether Deployment System reel, manual, two watertight, rolling Pelican cases, and tool kit.

The Pro III XE is depth rated to 152 m (500 ft).

Standard features that go beyond those offered on the Scout and Explorer include high-thrust 60 mm props, on-screen data display, black and white, ultra-low light rear-facing camera with LED light array, audio annotation system and an integrated control box.

The integrated control box is equipped with a large 15 inch picture-in-picture display that will display both video and a computer screen simultaneously in either PAL or NTSC.

It also includes a new sunshade and tilt adjustment arm for ergonomic use in bright sunlight.

The Pro III XE is also PC computer control enabled, allowing operators to control the Pro III XE using included wired or wireless game controllers with a user-supplied laptop computer.

The Pro III XE can even be controlled by software applications or remotely via a network.

The Pro III XE can easily accommodate recording devices, modular instrumentation and tools such as: scanning imaging sonar for low visibility environments; manipulator for object retrieval or intervention; positioning system for exhaustive area searches; water quality sensor, metal thickness gauge and more.

Pro III XE units can accommodate additional neutrally buoyant, negatively buoyant or positively buoyant tether extensions to reach up to 305 m (1,000 ft) in overall distance but limited to 152 m (500 ft) in water depth.

Included is an inverter for operation using a 12 volt power source such as a car battery.

Standard features of VideoRay Pro III XE

• Depth Rated to 152 m (500 ft)
• Tether Deployment System with 76 m (250 ft) of neutrally buoyant tether
• Front mounted 570 line high-resolution, 0.3 lux colour camera with wide angle lens
• Front camera features tilt (175 degrees field of view) and a wide focus range, both controllable from the surface
• Rear mounted 430 line 0.1 lux camera (B&W)
• Integrated 15 inch colour video display monitor (supports 1024 x 768 resolution)
• User option to superimpose date, time, depth and heading information on video display
• Digital video recording and stills capture device included (requires PC)
• Composite video output works with wide variety of video display and recording devices
• Integrated Control Box has room for a variety of optional user-supplied recording devices such as camcorders
• Video display sun shade for working in bright light
• Video display tilt adjustment for optimal viewing angle
• Audio annotation microphone for simultaneous recording of audio with video
• Two forward looking 20 watt high efficiency halogen lights, controllable from the surface
• Rear looking Light Emitting Diode (LED) array, controllable from the surface
• Depth gauge, heading, and cumulative hour meter, reading on LCD display on control box
• Joystick controls horizontal movement plus user selectable choice of depth, camera tilt, focus, lights or optional manipulator allowing one-hand control
• Depth rate of increase/decrease controllable from surface
• Depth holding function using Auto Depth included
• PC Pilot computer control option is enabled
• Wireless game pad style controller included (requires PC)
• Joystick style controller included (requires PC)
• Serial to USB adapter included for notebook computers without serial ports
• Four port USB hub
• Accessory connector allows simple connection of various instruments and measurement sensors
• Upgradeable to Greater Thrust Option (GTO)
• Operates from a variety of power sources 100-240 Volts 50-60 Hz AC or 12 Volts DC
• 12 Volt DC 800 Watt inverter included
• Power consumption less than 500 Watts
• Maximum voltage in tether is 48 V DC
• Entire system fits in two included Pelican cases, easily transported by one person and checked as airline baggage
• Total System Weight less than 45 kg (100 lb)
• Owners Manual, Spare Parts, and Basic Tool Kit included
• One-year VideoRay Advantage! program membership included

Optional extras, for cost please call us on +44 (0)870 748 5700 or email sales@outdoorgb.com

Item	Description
Greater Thrust Option	Powerful thrusters for improved performance
Manipulator	remotely controlled gripping device
Extension Tether	Adds 250 feet of tether (may be added up to 1,100 feet total)
Neutral Tether	250 feet of tether (may be added up to 1,100 feet total)
Professional Performance Package	PPP includes: 100' of performance tether, and battery system with mounts
Professional Performance Battery	Battery system with mounts
SeaSprite Scanning Sonar	The world's smallest sonar, requires laptop computer
Desert Star ROV PILOT Positioning System	Requires laptop computer
Desert Star ROV PILOT with GPS Integration	Requires laptop computer
Desert Star AquaMap Ship Hull Inspection System	Requires laptop computer
Desert Star AquaMap Universe (Includes Desert Star PILOT with GPS Integration and Desert Star AquaMap Ship Hull)	Requires laptop computer
Thickness Gauge from Cygnus Instruments	Measure thickness through coatings
YSI Sonde with multiple water sensors	Measures water quality parameters
GM Tube Radiation Sensor
Field Service Spares Package	Includes two Main Domes, three Seal Cartridges, 50 mm and 60 mm Prop Sets and Thruster Guards, one Float Block, one O-ring Set (entire vehicle), one weight set, four 12 V bulbs, one skid assembly, one O-ring & gasket speed lubricator
Ultimate Field Service Spares Package	Includes the Field Package and one Pressure Sensor, All Circuit Boards and heat sink assemblies, one Main Power Supply, three motors, two Light Domes, Rods, one Chip Extractor, tie wraps, one Multimeter
Expedited Delivery	within 30 days
Advantage!	Comprehensive Support and Maintenance Program
VIPS	VideoRay International Partners Symposium
On-site Factory Training	Price per day of basic VideoRay operation and maintenance (All inclusive - USA Only)
