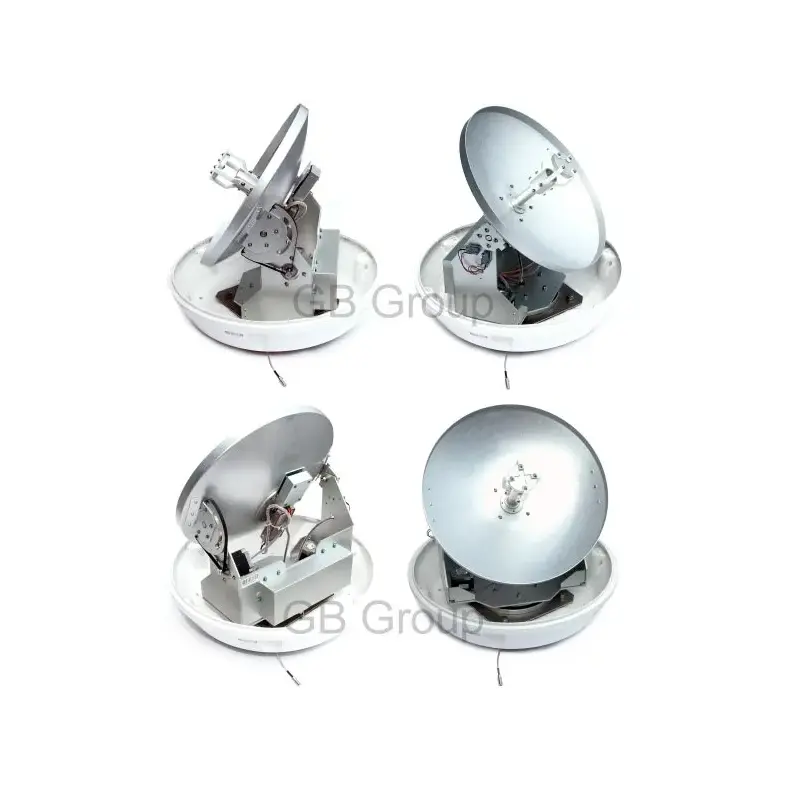

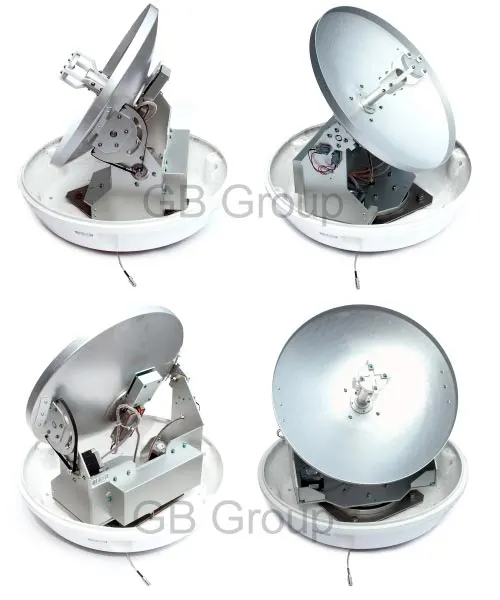

Camos Marine Satellite TV Dome Antenna D3121

Camos Marine Satellite TV Dome Antenna D3121

The fully automatic Camos Marine Satellite TV Dome Antenna D3121 was designed specifically particularly for use on ships and yachts.

The antenna aligns itself within 50 seconds to 2 minutes to the desired satellite, reacts within seconds to position changes and can receive signals from the Astra 1 and 2, Eutelsat/Hotbird, Atlantic Bird 3, Hispasat and Sirius satellites.

The dome protects the sophisticated electronics from seawater and is easily installed with just a normal power lead also receiving the antenna signal.
Apart from TV and radio signals, the Camos Marine Satellite TV Dome Antenna D3121 is also suitable also for the receipt of data services like the Internet and email.

A single co-ax cable connects the dome to the controller and the controller is linked to a receiver (not included) by a SCART cable. Operating the system consists of turning on the controller, selecting the required satellite and switching on the receiver. The dome’s antenna locates and locks on to the satellite even when the vessel is under way in rough conditions.

Specification

• Automatic adjustment
• Can be used with: Astra 2, Astra 1, Hotbird, Atlantic Bird 3, Hispasat and Sirius satellites
• Single co-ax connection to control box
• Control box connects to any satellite receiver
• Dimensions: Dome: 55 cm Diam. x 58 cm H
• Dimensions: Control box: 30 cm W x 18 cm D x 5 cm H
• Rugged, ABS plastic dome
• Weight of dome: approx. 15 kg
• Colour: White but can be painted any colour with a non-metallic paint
• Power supply: 10-30 V/3 amp max.
• Operating temperature: -22°C to +55°C
• Tracking rate: max. 50° per second
• Azimuth turn range: unlimited
• Elevation range: 5-90°
• 2-year warranty
