Lowrance Lcx-37c Chartplotter/echosounder

Lowrance LCX-37c Chartplotter/Echosounder

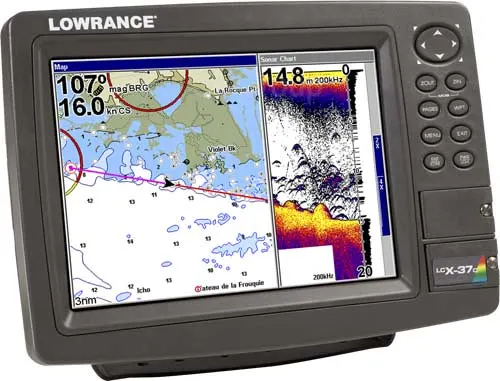

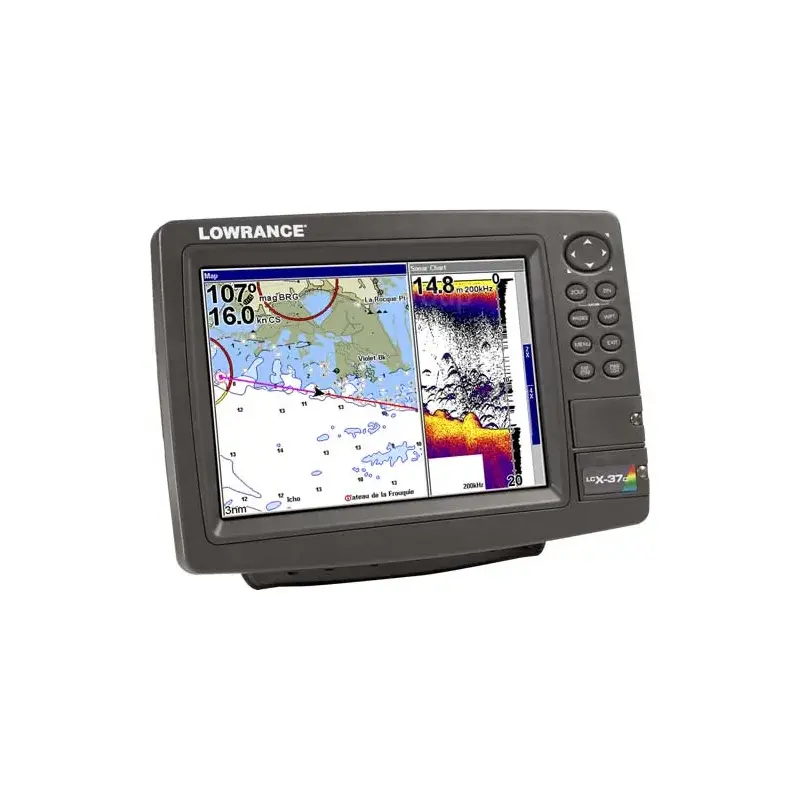

The Lowrance LCX-37c Chartplotter/Echosounder delivers a brilliant 8.4-inch diagonal TFT colour display and sonar/GPS chartplotter performance.

Features include newly-expanded built-in background map of the continental US and Hawaii with over 3,000 lakes with depth contours. Waterproof memory card slots are compatible with a superb variety of high-detail, plug-and-play electronic chart options loaded on MMC/SD cards.

Features

Display

• Incredible 8.4-inch (21.3-cm) diagonal SVGA, 16-bit colour SolarMax TFT display
• Briliiant 600V x 800H resolution
• Advanced cold cathode screen and keypad backlighting
• Multiple full- and split-screen sonar/GPS options
• Programmable colour palette
• 6 sonar display colour choices

Sonar/Sounder

• Choice of dual-frequency (50/200 kHz) or single-frequency (200 kHz) Skimmer transducer with built-in temperature sensor
• 8,000 W peak-to-peak (1,000 W RMS) power
• Depth range to 3,000 ft (915 m) and beyond
• FlashGraf LCD flasher+sonar graph with colourLINE
• Adjustable ping speed automatically engages HyperScroll for locating fish targets at higher boat speeds
• FasTrack vertical flasher bar
• Standard sonar features - Advanced Signal Processing (ASP), colourLINE, Advanced Fish Symbol ID, FishTrack, multi-zoom options, sonar alarms, backup memory and more

GPS/Mapping

• Precision 12-parallel channel GPS+WAAS receiver
• Expanded, built-in enhanced background map of the continental US and Hawaii with over 3,000 lakes with depth contours and additional
• features
• Optional MapCreate Accessory Pack to create higher-detail mapping
• Compatible with optional plug-and-play Lowrance FreedomMaps, Fishing Hot Spots Pro, LakeMaster Pro Maps, NauticPath and Navionics electronic charts
• One-touch MOB (man overboard)
• 1,000 waypoints/1,000 event markers/100 routes/100 waypoints per route
• 100 saveable plot trails/10,000 points per trail
• 37 map zoom ranges, 0.05–4,000 miles

Recording

• Two waterproof memory card slots accept industry-standard memory cards (MMC/SD)
• Advanced digital recording/playback of sonar graph and GPS detail plus custom map uploading.

Plus

• LowranceNET networking (NMEA 2000 certification pending)
• 5-pin Ethernet expansion port compatible for radar and satellite radio
• Two full RS-232 duplex ports for NMEA 0183 data communications
• Back-up memory saves customised settings
• Enhanced data processing speed
• Sealed and waterproof
• Full 1-year warranty
