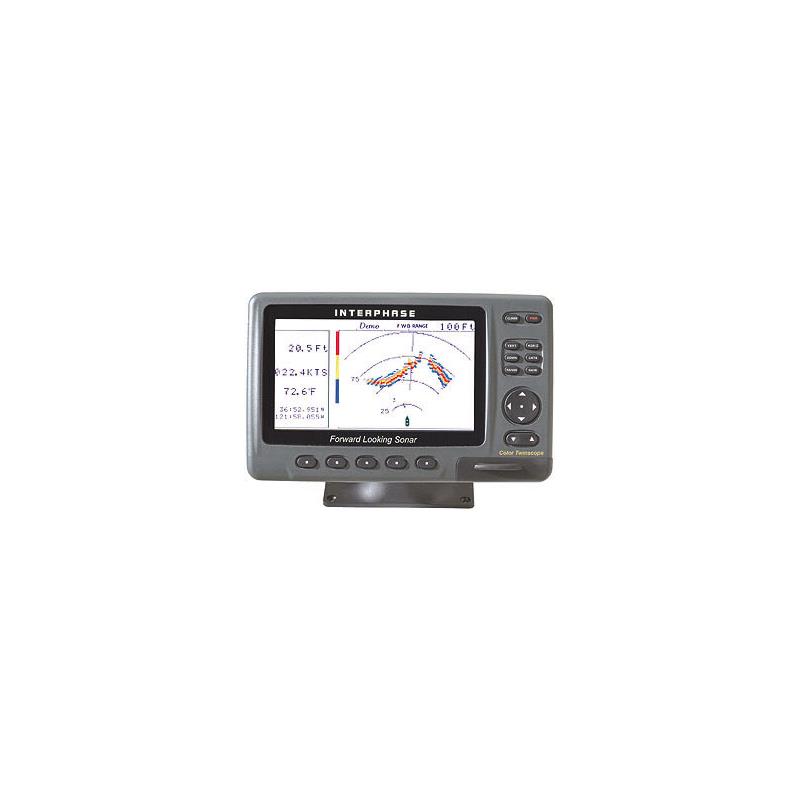

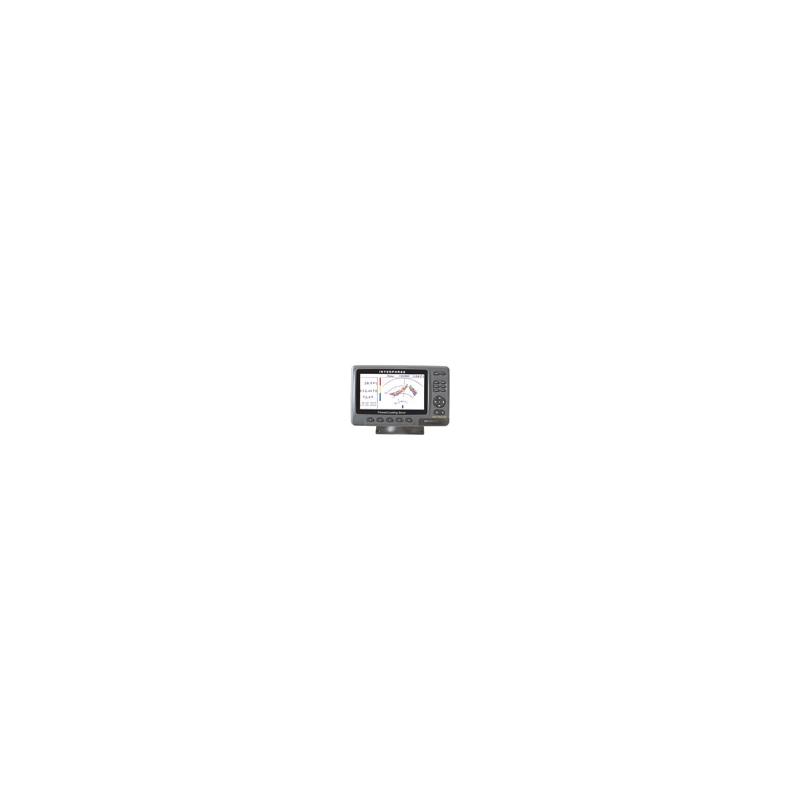

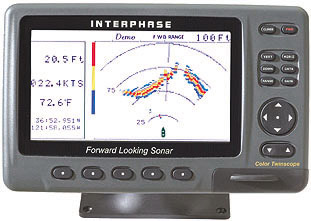

Interphase Color Twinscope Display Only - No Transducers

The new Interphase Color Twinscope is more than just a colour LCD version of the popular Twinscope unit.

While it retains the important features of the original Twinscope, it offers a new design and many added features that make it even more useful for navigation and fishing.

There's a completely new panoramic colour display with a 16:9 aspect ratio adapted from wide-screen TVs and computer monitors. This format allows for improved presentation of split-screen displays, such as when viewing sonar/digital data or traditional depth-sounder display with forward-looking sonar simultaneously.

With colours directly related to target strength, this display will make target identification easier than ever, whether you're navigating a tricky reef or pinpointing a school of gamefish ahead of the boat.

The Color Twinscope operates like underwater sonic radar, scanning a moving beam over a 90° arc either vertically or horizontally ahead of the boat.

In the Forward Vertical scanning mode, this gives the navigator an underwater sonar image of what's ahead from just under the surface to directly below the boat. In the Forward Horizontal scanning mode, the Color Twinscope electronically steers a searchlight-like beam from port to starboard across the bow, picking up targets in the 12° beam.

Features

• Sunlight viewable wide panoramic colour display
• Scans forward vertically and horizontally
• Immediate depth and range information with unique screen cursor
• High Power for Forward Range up to 1000 feet
• Full-Screen Vertical and Horizontal Forward-Looking Displays
• Split-Screen Displays Showing Downward-looking Depth or Large Digital Data
• Easy One-Touch User Interface
• NMEA 0183 Depth Output
• NMEA 0183 Ground Speed/Temp and lat/long inputs
• Power Off Memory Remembers All Settings
• Quick-Disconnect Mount
• Keel-Offset Adjustment
• Adjustable Display Backlight
• Backlit Keypad
• Video Input for Camera, VCR or DVD
• Forward Range and Depth Alarms
• External Alarm Capabilities
• Three Selectable Colour Schemes for Night, Sun and Normal Viewing
• Scan Sector Width and Direction Adjustments
• Simple Second-Station Connection
• User-Selectable Languages and Units
• Easy Upgrade: Can Use Pre-Existing Interphase Twinscope Transducer

Built to work, Built to last

• 480 x 234 Pixels
• Adjustable CCFL Backlight
• Large (3.41 H x 6.1 W inches) TFT Sunlight Viewable Colour LCD
• Flush-Mount Template Included
• Weight of Display Approx 3.5 lb
• Fog- and Waterproof
• Over 3000 W Peak-to-Peak Power
• 8-Channel Phased-Array Transducer, No Moving Parts
• 12° Beam Angle
• Compact Dimensions (W x H x D): 9.4 x 5.9 x 3.25 inches
• Time-Variable Gain Receiver
• 10 to 16 VDC, less than 1.0 Amp
• Sunlight, Normal and Night Colours
• Split-Screen Forward Vertical and Downlooking Display
• Split-Screen Forward Horizontal and Downlooking Display
• Split-Screen Forward Horizontal and Large Digital Data Display
• Split-Screen Forward Vertical and Large Digital Data Display
• Full-Screen Vertical, Horizontal and Setup Displays
• Full-Downlooking Display with Zoom
