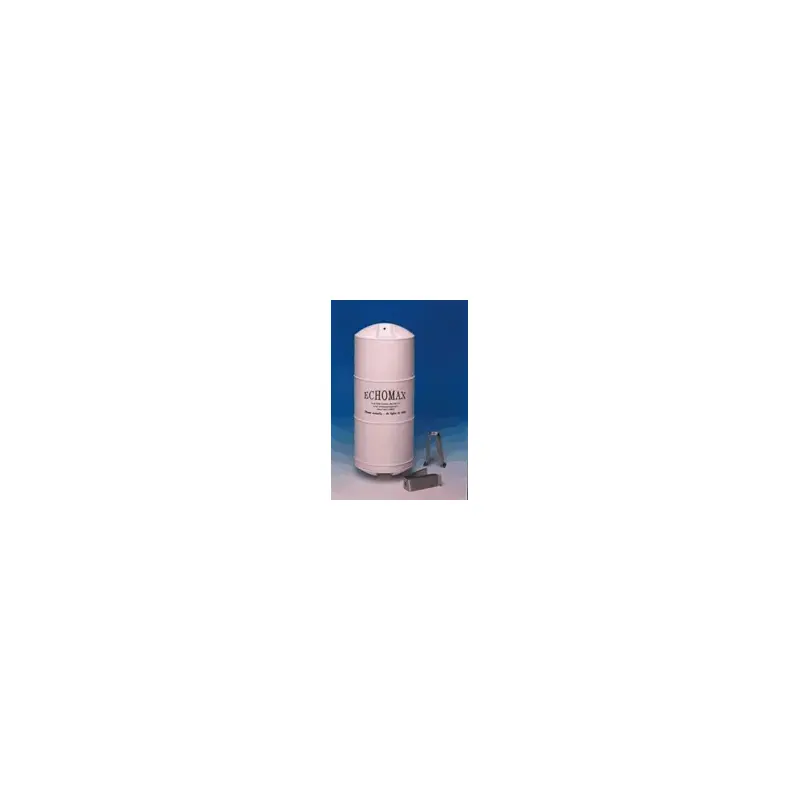

Echomax EM230 Radar Reflector

The Echomax EM230 Radar Reflector is suitable for medium-sized vessels.

Of lightweight construction in robust 2.5-mm polyethylene, the EM230 was proven in QinetiQ (DERA) tests to give an astonishing 24 sq m peak at ±3° and 10 sq m peak at ±15°.

The Echomax EM230 Radar Reflector has now been successfully tested by QinetiQ to ISO 8729, Ship's Wheel Mark, SOLAS, RORC, ORC and meets Sections A.1/1.33 and A.1/4.39 of Annex A1 of Marine Directive 98/95/EC.

Please note: claimed performance figures may vary slightly from product to product due to circumstances beyond the manufacturer's control.

Specification

• Length 610 mm
• Distance between centres 560 mm
• Overall diameter 248 mm
• Fixing holes 10 mm
• Weight 2.4 kg

The Echomax EM230 Radar Reflector is available in white, yellow, bright orange or black (other colours to order).
