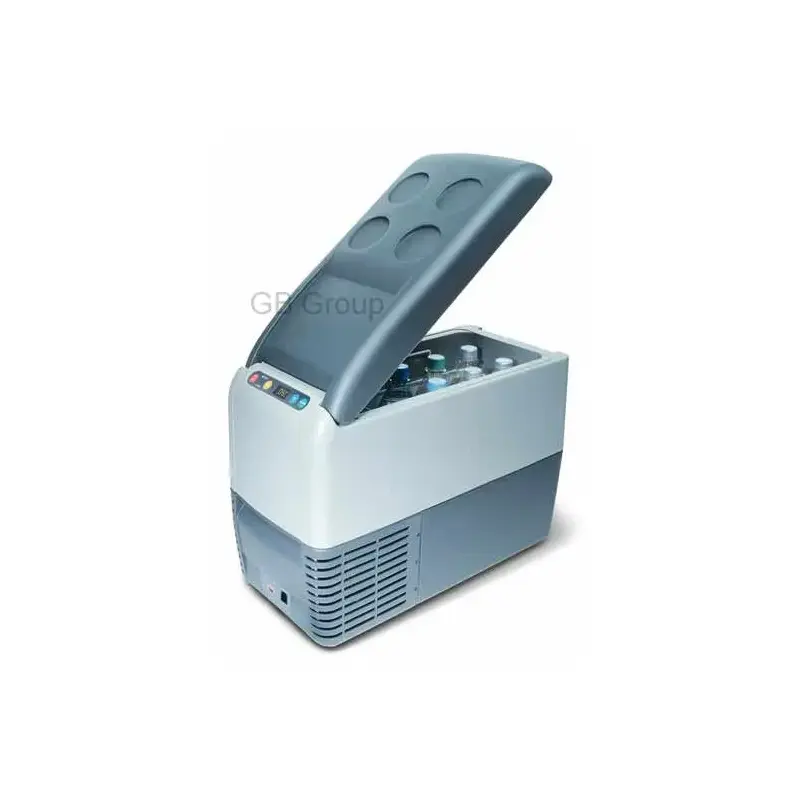

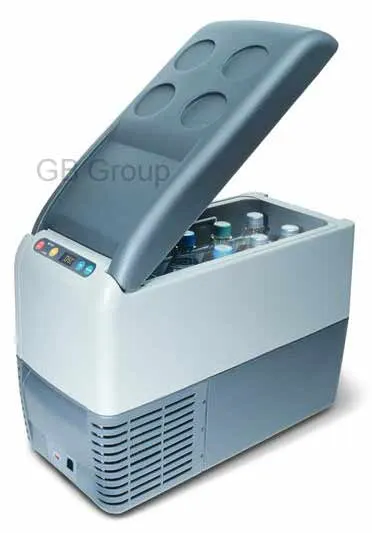

Waeco CoolFreeze CF-25DC 23 L Compressor Cooler/Freezer
 |
 |
 |
 |
 |
|
Waeco CoolFreeze CF-25DC 23 L Compressor Cooler/Freezer

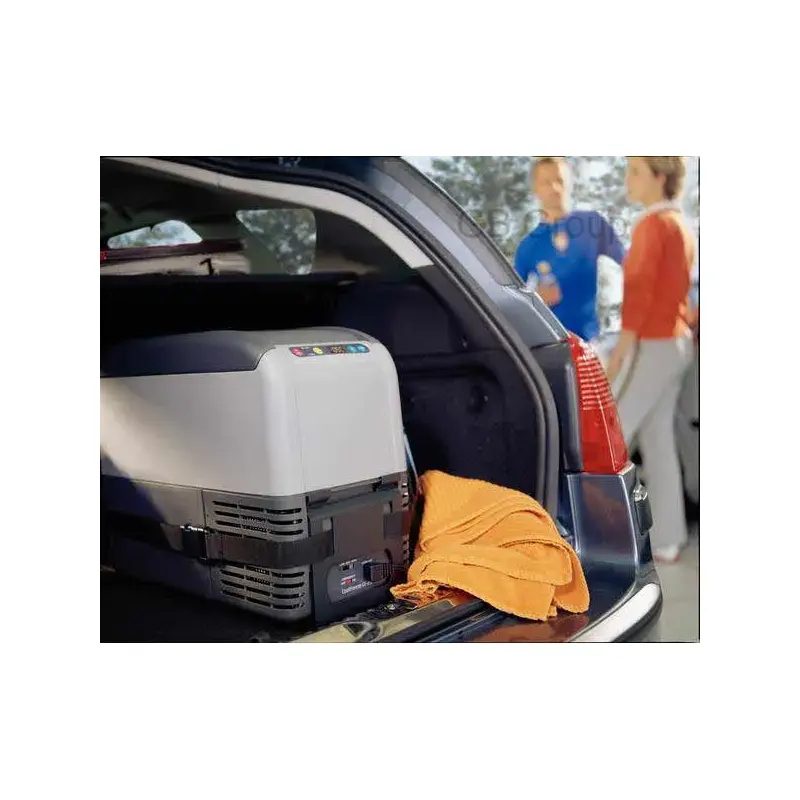

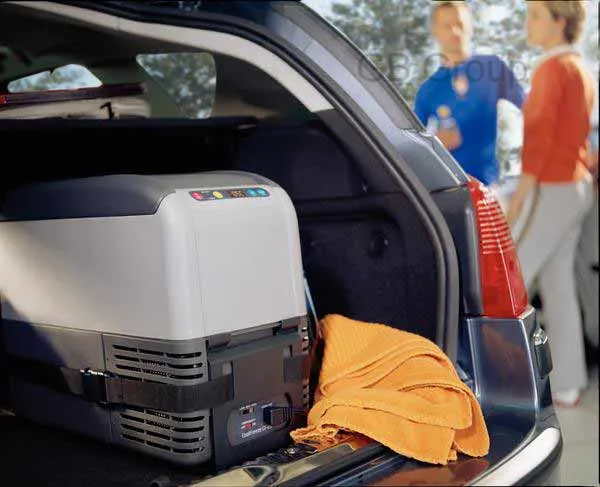

The Waeco CoolFreeze CF-25DC 23 L Compressor Cooler/Freezer is suitable for solar operation. It
has a slim body profile so uses as little space as possible in the vehicle.
A mains rectifier, EPS-100W, is available as an optional extra for this
product, allowing you to connect the coolbox to 230 V mains.
An insulated cover which protects the unit and significantly improves the
energy efficiency is available.
Features
- Temperature range +10°C to -18°C
- Suitable for solar operation
- Slim body for minimal space consumption
- Protective cover and fixing kit available as accessories
- CF special electronics
| Gross capacity |
23 L |
| Voltage |
12/24 volts DC (mains hook-up with rectifier) |
| Average power consumption |
35 watts |
| Power consumption |
Power input x average running time |
| Average running time |
15% at 20°C ambient temperature
19% at 32°C
ambient temperature
both at 5°C interior temperature |
| System |
Fully hermetic Danfoss BD35F compressor with integrated control
electronics, low-voltage protection adjustable for consumer or starter
battery by means of a slide switch, electronic fuse/automatic reverse
pole protection, dynamically ventilated wire condenser, aluminium
rollbond evaporator |
| Insulation |
CFC-free polyurethane foam |
| Material |
Cabinet PP, lid PE |
| Colour |
Body pale grey/dark grey, lid dark grey |
| Quality features |
Detachable lid (lid mount at the front), interior
light, vertical space for standing 2 L bottles,
CF special electronics |
| Temperature range |
+10°C to -18°C, variable via electronic thermostat
with LED indicator |
| Weight |
Approx. 12 kg |
| Test marks |
TÜV/GS, e-approved according to 95/54/EC (EMC
guidelines for vehicles) |
| Scope of delivery |
DC connection cable, detachable wire
basket | All technical information for this product is included within the description.
|
|
 |
|
|
|
|
