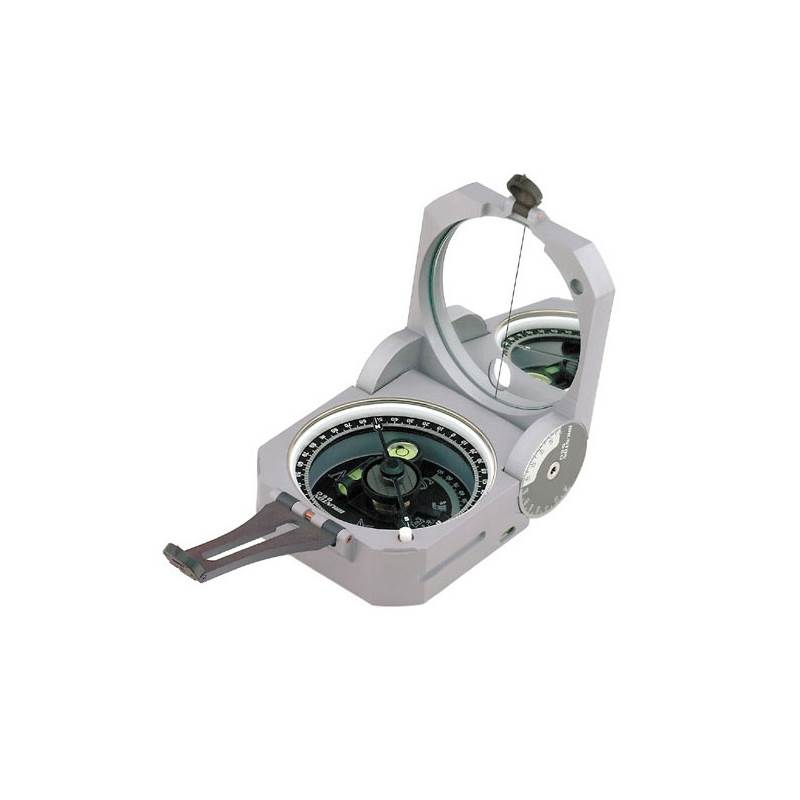

Brunton's commitment to their roots continues with the Brunton 5009 Geo Pocket Transit Quad Compass, the newest and most advanced Transit Brunton build.

Listening to owners of pocket Transits and implementing some of their ideas, Brunton have created the ultimate tool for professionals.

The solid aluminium, waterproof GEO Transit contains a fast magnetic North seeking rare-earth magnet, balanced on a sapphire jewel bearing for quick measurements.

The most noticeable feature is the hinge inclinometer, accurate to ±2°. This feature allows simultaneous trend and plunge measurements, reducing the number of measurements you must take in the field.

An innovative needle design can be locked or unlocked depending on your requirements.

The Brunton Geo is the ultimate tool and yours to cherish.

Features

• Adjustable needle locking mechanism
• Hinge clinometer with 1° increments for 1/2° readable dip measurements
• Two long-level bubbles on the outside of the aluminium housing for no-guess levelling from the sides or the bottom
• Cover hinge assembly designed for increased durability
• 'Buck Horn'-style sights for increased accuracy when sighting azimuth or vertical angles
• Single NdFeB magnet resists demagnetization better than any other type of magnet

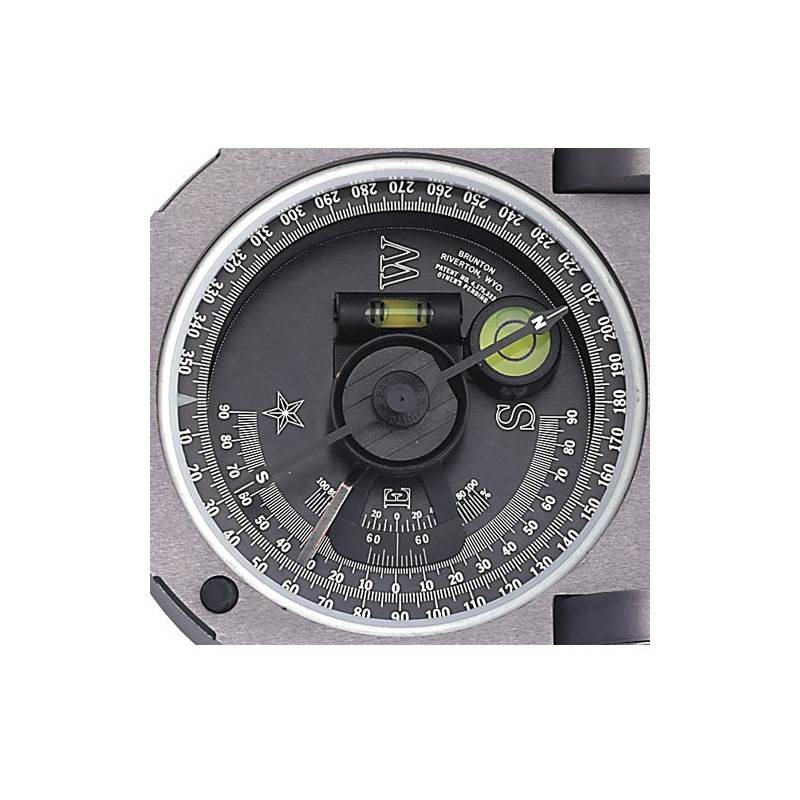

• Azimuth accuracy ±1/2° with 1° graduations
• Vertical angle accuracy ±1/2° with 1° graduations and 10-minute vernier
• Vertical angle measurements to ±90° or 100% grade
• Percent grade scale with increments of 5%
• Induction dampened needle for quick, accurate readings
• Sapphire jewel bearing allows for smooth needle movement
• Magnetic declination adjustment allows for east or west declination settings to ±180°
• Precision aligned mirror with convenient 'see-through' sighting capability
• Aluminium billet body assembly makes the GEO nearly indestructible
• 6061-T6 hard anodized aluminum body for permanent colour and scratch resistance
• Ball & socket tripod mount is centred for increased accuracy of rotation
• O-rings make the GEO waterproof for increased reliability
• Leather case included
• Overall dimensions: 97 x 71 x 33 mm
• Weight: 363 g
• Markings: 0-90° quads
• Limited lifetime warranty
