This well-known range - especially in the marine world -includes models for just about every possible requirement: from low-cost 6 A units to 100 A chargers for the most demanding situations.
All models are designed by Charles Sterling who has written detailed information on theory features, their applications and their comparative performance.
Sterling's range of chargers is made up of four types:

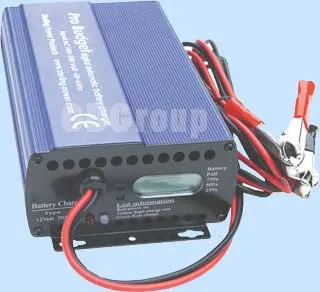

Pro Budget - A range of low-cost, compact, multi-stage chargers from 6 to 20 A (12 V) and 7 to 12 A (24 V)
International - High-quality, 3-output, 4-stage chargers from 10 to 20 A (12 V) and 15 A (24 V)
Pro-Digital- Digital, 3-output, 4-stage chargers from 30 to 50 A (12 V) and 25 A (24 V)
High Power Pro-Digital - Digital, 4-output, 4-stage chargers from 80 to 100 A (12 V) and 50 A (24 V)
Model: Part number
C8714
C8715
C8716
C8717
C8718
Maximum output power:
6 A
10 A
20 A
7 A
12 A
Output voltage:
High charge voltage - Max
14.4 V
14.4 V
14.4 V
28.8 V
29.8 V
Float voltage
13.6 V
13.6 V
13.6 V
27.2 V
27.2 V
Efficiency
87%
87%
87%
87%
87%
Protection:
Reverse polarity protected
Yes
Yes
Yes
Yes
Yes
Short circuit protected
Yes
Yes
Yes
Yes
Yes
Overload protected
Yes
Yes
Yes
Yes
Yes
Over temperature protected
Yes
Yes
Yes
Yes
Yes
Thermostatically controlled cooling fan
Yes
Yes
Yes
Yes
Yes
Charge cycle and protection indication:
L.E.D. R: power on G: float charge Y: high charge
Yes
Yes
Yes
Yes
Yes
L.C.D.
No
Yes
Yes
Yes
Yes
Meter, needle type
Yes
No
No
No
No
Size (mm) w x h x d
70 x 48 x 155
103 x 50 x 167
115 x 60 x 186
103 x 50 x 167
115 x 60 x 186
Weight (kg)
0.5
0.9
0.9
0.9
0.9
Accessories, Euro and English cable
No
Yes
Yes
Yes
Yes
6 A/12 V Sterling Pro-Budget Charger C8714
Specification
Voltage input: 230 V
Nominal voltage output: 12 V
Max. output power: 6 A
Protection against: reverse polarity, short circuit, overload, over-temperature
Thermostatically controlled cooling fan
Weight: 0.5 kg
Dimensions: 70 W x 48 H x 155 D mm
10 A/12 V Sterling Pro-Budget Charger C8715
Specification
Voltage input: 230 V
Nominal voltage output: 12 V
Max. output power: 10 A
Protection against: reverse polarity, short circuit, overload, over-temperature
Thermostatically controlled cooling fan
Weight: 0.9 kg
Dimensions: 103 W x 50 H x 167 D mm
20 A/12 V Sterling Pro-Budget Charger C8716
Specification
Voltage input: 230 V
Nominal voltage output: 12 V
Max. output power: 20 A
Protection against: reverse polarity, short circuit, overload, over-temperature
Thermostatically controlled cooling fan
Weight: 0.9 kg
Dimensions: 115 W x 60 H x 186 D mm
7 A/24 V Sterling Pro-Budget Charger C8717
Specification
Voltage input: 230 V
Nominal voltage output: 24 V
Max. output power: 7 A
Protection against: reverse polarity, short circuit, overload, over-temperature
Thermostatically controlled cooling fan
Weight: 0.9 kg
Dimensions: 103 W x 50 H x 167 D mm
12 A/24 V Sterling Pro-Budget Charger C8718
Specification
Voltage input: 230 V
Nominal voltage output: 24 V
Max. output power: 12 A
polarity, short circuit, overload, over-temperature
Thermostatically controlled cooling fan
Weight: 0.9 kg
Dimensions: 115 W x 60 H x 186 D mm
