C-TEK Battery Chargers
Designed and developed in Sweden by some of the worlds leading experts on battery technology, C-TEK chargers have become the best-selling chargers of their type in Scandinavia. Whether you want to charge batteries in a boat, a car, a truck or bus, a caravan, motor home or a motorbike, there is a C-TEK charger available which will ensure that you never suffer from a dead or poorly-performing battery ever again.
Part of the attraction of C-TEK chargers is that they can be used with any type of lead-acid battery (Wet, MF, VRLA, AGM and GEL), in all conditions, for any length of time and in complete safety. Just connect the charger to the battery and walk away. As long as the battery isn't faulty, C-TEK's intelligent, multi-stage charging regime will ensure that it's fully charged to its maximum capacity. Even sulphated batteries that won't respond to an ordinary charger can be completely revived thanks to the pulse maintenance stage in all C-TEK models. All models have full protection against short circuits and reverse polarity, are tough, weatherproof, easy to use and, they even look good!
C-TEK chargers have undergone stringent testing by several well known car manufactures, looking for a suitable charger to supply to their customers who may not use their cars for months at a time.
|
|
6V BATTERY CHARGER C8605
Description
The C-TEK XC800 battery charger is designed for use with 6-volt batteries such as are used on motorcycles, lawnmowers and jet-skis.
Like all models in the C-TEK range, it can be safely left connected indefinitely to ensure that a battery is in peak condition when it's needed. It is completely safe and can even be left out in the rain.
It will charge batteries at a constant rate of 0.8 Amps per hour.
Specification
- Voltage: AC 220-240 VAC, 50-60 Hz.
- Charge voltage: 7.2 V, Nominal: 6 V
- Ripple: Max 10 mV rms, max 12 mA (2%).
- Charging current: 0.8 A max.
- Ambient temperature: -20°C to + 50°C. (-4°F to +122°F) The output is reduced automatically with increased temperature.
- Cooling: Natural convection.
- Charger type: Three step, fully automatic IUoUp, with pulse maintenance.
- Battery types: All types of 6 V lead-acid batteries (Open, MF, VRLA, AGM and GEL).
- Battery capacity: 1.2 to 32 Ah, up to 100 Ah for maintenance.
- Dimensions: 142 x 51 x 36 mm (L x W x H)
- Enclosure class: IP 65
- Weight: 0.3 kg
|

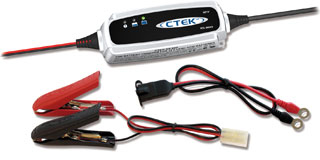

SMALL 12V BATTERY CHARGER C8607
Description
The C-TEK XS 800 battery charger is designed for use with small 12-volt batteries such as are used on small cars, motorcycles, lawnmowers and jet-skis. It's also useful for maintaining batteries up to 60Ah on vehicles which are used infrequently.
Like all models in the CTEK range, it can be safely left connected indefinitely to ensure that a battery is in peak condition when it's needed. It is completely safe and can even be left out in the rain.
It's designed to charge 12V batteries of up to 32Ah capacity at a constant rate of 0.8 Amps per hour.
Specification
- Voltage: AC 220-240 VAC, 50-60 Hz.
- Charge voltage: 14.4 V, Nominal: 12 V Ripple: Max 50 mV rms, max 0.05 A rms.
- Charging current: 0.8 A max.
- Ambient temperature: - 20°C to + 50°C. (- 4°F to +122°F) The output is reduced automatically with increased temperature.
- Cooling: Natural convection.
- Charger type: Three step, fully automatic IUoUp, with pulse maintenance.
- Battery types: All types of 12 V lead-acid batteries (Open, MF, VRLA, AGM and GEL).
- Battery capacity: 1.2 to 32 Ah, up to 60 Ah for maintenance.
- Dimensions: 142 x 51 x 36 mm (L x W x H)
- Enclosure class: IP 65
- Weight 0.3 kg
|
|
|
PROFESSIONAL 12V BATTERY CHARGER C8608
Description
The MULTI XS 25000 is a powerful unit for batteries that require rapid charging: in boats, vehicles and workshops.
With built-in functions that constantly analyse the state of the battery - including temperature sensing - the MULTI XS 25000 ensures that batteries up to 500Ah provide maximum performance at all times.
This charger can also be used as a power supply.
Specification
- Voltage: AC 220-240 VAC, 50-60 Hz.
- Charging Voltage Nominal: 12V
- Ripple(%): 4%
- Charging Current: 25A max
- Ambient Temperature: - 20°C / + 50°C. Automatic reduction of power at increased ambient temperature.
- Cooling: Natural convection.
- Charger type: Eight step fully automatic IUoUp, with pulse maintenance mode.
- Types of battery: All types of lead-acid batteries (Wet, MF, VRLA, AGM and GEL.)
- Battery Capacity: 50 - 500Ah
- Dimensions: 233 x 128 x 64 mm (L x W x H)
- Insulation: IP 44 (suitable for outdoor use)
- Weight: 1.4Kg
|
24V BATTERY CHARGER C8610
Description
The MULTI XT 14000 is a powerful charger for 24V battery banks: in boats, vehicles and workshops.
With built-in functions that constantly analyse the state of the battery - including temperature sensing - the MULTI XT 14000 ensures that batteries up to 300Ah (500Ah for maintenance) provide maximum performance at all times.
This charger can also be used as a power supply.
Specification
- Voltage: AC 220-240 VAC, 50-60 Hz.
- Charging Voltage Nominal: 12V
- Ripple(%): 4%
- Charging Current: 14A max
- Ambient Temperature: - 20°C / + 50°C. Automatic reduction of power at increased ambient temperature.
- Cooling: Natural convection.
- Charger type: Eight step fully automatic IUoUp, with pulse maintenance mode.
- Types of battery: All types of lead-acid batteries (Wet, MF, VRLA, AGM and GEL.)
- Battery Capacity: 28 - 300Ah (500Ah for maintenance)
- Dimensions: 233 x 128 x 64 mm (L x W x H)
- Insulation: IP 44 (suitable for outdoor use)
- Weight: 1.4Kg
|
|
|
MEDIUM 12V BATTERY CHARGER C8603
Description
The CTEK 3600 12V .battery charger is ideal for use in cars, caravans, motorhomes, boats and, in fact, just about any vehicle or craft with a battery of up to 125Ah.
Like all models in the CTEK range, it can be safely left connected indefinitely to ensure that a battery is in peak condition when it's needed. It is completely safe and can even be left out in the rain.
It will charge batteries at a constant rate of 3.6 Amps per hour unlike conventional linear chargers which may be rated at 10 Amps or more but which can rapidly drop down to as little as 1 Amp.
Specification
- Voltage: AC 220-240 VAC, 50-60 Hz.
- Charging Voltage Nominal: 12 V 14.4 V or 14.7 V.
- Ripple: Max 50 mV rms, max 0.13 A. Charging Current: 3.6 A max
- Ambient Temperature: - 20°C / + 50°C. Automatic reduction of power at increased ambient temperature.
- Cooling: Natural convection.
- Charger type: Three step fully automatic IUoUp, with pulse maintenance mode.
- Types of battery: All types of lead-acid batteries (Wet, MF, VRLA, AGM and GEL.).
- Battery Capacity: 1.2 - 120 Ah
- Dimensions: 165 x 61 x 38 mm (L x W x H)
- Insulation: IP 65
- Weight: 0.5 kg
- Warranty: 2 years
|
LARGE 12V BATTERY CHARGER C8604
Description
The CTEK 7000 battery charger is recommended for use with any type of battery with a capacity of up to 250Ah. Like the CTEK 3600, it can be used with any type of lead acid battery including gel and AGM types. Its unique multi-stage charging characteristics ensure that any battery will be charged to its maximum potential: even partially sulphated batteries can usually be revived by the CTEK's "pulsing" feature.
In addition to its charging capabilities, the 7000 can also be used as a power supply when 230V AC is available.
Like all models in the CTEK range, it can be safely left connected indefinitely to ensure that a battery is in peak condition when it's needed. It is completely safe and can even be left out in the rain.
Specification
- Voltage: AC 220-240 VAC, 50-60 Hz.
- Charging Voltage Nominal: 12 V 13.6 V, 14.4 V, 14.7 V or 16 V
- Ripple: Max 150 mV rms, max 0.3 A
- Charging Current: 7 A max
- Ambient Temperature: - 20°C / + 50°C. Automatic reduction of power at increased ambient temperature.
- Cooling: Natural convention
- Charge cycle: 5 step fully automatic IIUoIUp.
- Types of battery: All types of lead-acid batteries (Wet, MF, VRLA, AGM and GEL)
- Battery Capacity: 14-225 Ah
- Dimensions: 191 x 89 x 48 mm (L x W x H)
- Insulation: IP 65
- Weight: 0.8 kg
|
All technical information for this product is included within the description.
|
|
