Wavefinder-Wireless Autonomous Retrieval System Description Wavefinder-Wireless Autonomous Retrieval System

WaveFinder - Wireless Autonomous Retrieval System

Wavefinder® is an autonomous retrieval system that automatically alerts the crew and guides them to a person who has fallen overboard. Once activated, the Wavefinder® system provides continuously updated location information, always guiding the boat to the person to be rescued even in the roughest and most testing conditions.
This product targets every professional and occasional navigator who is concerned by the security for his guests, family and crew.

The system provides an automatic alarm should an overboard situation occur. It uses a state-of-the-art guidance system to accurately guide the boat to the person overboard in a timely manner, regardless of the severity of the weather and currents. It is an active, intelligent safety system complementing and enhancing existing products such as life jackets and flashing lights.
The complete installation (transmitters, antenna and display) can be tested at any time by the users.

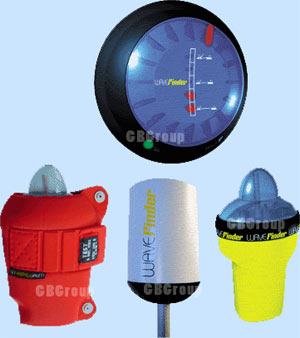

Display

The control console consists of a waterproof LED display and a horn that alerts the crew in case an overboard situation has occured. The display provides an easy to use visual indication of the direction and the distance to the person. This information is updated continuously so that the crew is always tracking in the right direction.

Antenna

The solid-state antenna is a lightweight device and it requires only one electrical connection. With a height smaller than 270 mm, it doesn't impact the boat performance. A special algorithm provides a protection against false alarms.

Transmitter

The transmitter is carried by the individual on a belt (it is delivered with a holder) or fixed on the life jacket. Its small size and low weight makes it easy and non-cumbersome to carry. Once ejected, the sophisticated electronics of the transmitter are automatically activated. The long-life battery provides more than four hours of continuous usage in an overboard situation. The battery is designed for a six years product lifetime.

Holder

A holding case is delivered with the transmitter. It allows carrying the transmitter on a belt. The holder's test strip activates shortly the transmitter in order to test the good operation of the whole system at any time. In distress situation, the release strip sets the transmitter free. It rises then to the surface and begins to transmit. The holder is also carrying a sticker indicating the expiration date of the product.

  • Crew / Number
    Can cover all members of the boat using just one system. It is easy to allow for extra crewmembers.
  • Long lifetime battery
    The product is highly reliable over time and with battery life of 6 years.
  • Activation
    Automatic.
  • Installation
    Easy to install for a non-professional.
  • Accuracy
    A sixteen LEDs display provides a fully accurate bearing, even in a strong sea condition.
  • Range up to 10 NM
    The system precision is stable when the distance between transmitter and receiver increases, up to 10 NM.
  • Waterproof
    Transmitter, antenna and receiver are waterproof.
  • Electrical and radio regulations
    WaveFinder® is compatible with the CE and ETSI 300-220 regulations.

Display Features:

  • Waterproof
  • Internal buzzer
  • Connection to ext. buzzer
  • Weight 160 g
  • Operating temperature-5 to 60°C
  • Supply voltage 9 to 30 Vdc
  • Current supply (stand by)
    • 100mA@12V
    • 60mA@24V
  • Current supply (active mode)
    • 140mA@12V
    • 80mA@24V
  • Accuracy +/- 2°
  • Resolution 22.5°
  • Max current for ext. alarmm 200 mA
  • Supply voltage for ext. alarm 12 V (when Valim > 13V)

Transmitter Features:

  • Waterproof
  • Weight 130 g
  • Operating temperature -5 to 60°C
  • System range up to 10 NM*
  • Frequency 869.5 MHz
  • Battery lifetime 6 years storage, 4 hours operation

Antenna Features:

  • Waterproof
  • Weight 660 g
  • Operating temperature -5 to 60°C
  • Power supply through display
* depends on receiver position, sea condition and electromagnetic noise; usually, the rougher the sea, the greater the range (1 NM = 1.853 km)
