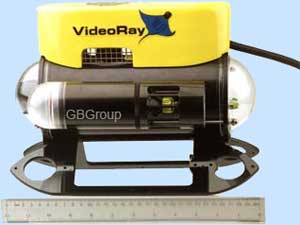

Videoray Scout Underwater Video Camera

VideoRay Scout Underwater Video Camera

The VideoRay Scout system includes the 8-pound submersible, control box, 40 m (131 ft) of neutrally buoyant tether, manual, and tool kit. All components fit neatly in a watertight, rolling Pelican case that fits easily in the trunk of a car or in airline luggage compartments. The entire system is stored in the Pelican case and weighs 32 kg (70 lbs).

The Scout is depth rated to 91 m (300 ft). Among the Scout's features are a new skid and nozzles developed by NASA, a boost in thrust by nearly 80 percent over previous models, and a three-axis joystick.

The Scout includes a color camera and a 5 inch LCD color display monitor. An external video monitoring/recording device that has a composite video input– typically a TV/VCR combination – is recommended for recording missions. The Tether Deployment System (TDS) is an excellent option for quick coiling and recoiling of the tether.

Standard features of the VideoRay Scout

• Fits in one included Pelican case, easily transported by one person and checked as airline baggage
• Total System Weight less than 32 kg (70 lbs)
• Depth rated to 91 m (300 ft)
• 40 m (131 ft) of Neutrally Buoyant Tether
• Joystick controls horizontal movement plus lights, allowing one hand control
• Depth rate of increase/decrease controllable from surface
• Two 20 Watt High Efficiency Halogen lights, controlled from surface
• Color camera with 420 lines of resolution and 0.3 lux
• 5 inch LCD color display monitor
• Composite Video Out works with wide variety of video display and recording devices (not included)
• Owners Manual, Spare Parts, and Basic Tool Kit included
• Submersible Power Consumption less than 300 Watts of 100-240VAC, 50-60Hz Power
• Maximum voltage in tether is 48VDC
