Solara Solar Panel Battery Regulators are an essential component for most solar charging systems.
A solar electric power system needs panels for generation, batteries for storage and a regulator to keep the batteries within a safe operating range. A solar panel has two main purposes. The first is to protect the battery from overcharge at times of strong sun and little consumption and the other is to protect it from excessive discharge in bad weather conditions.
The Solara Solar Panel Battery Regulators are highly sophisticated, making use of a microcontroller which provides high-efficiency charging technology combined with a 50% reduction of electronic components. This ensures excellent battery charging even when there doesnt seem to be much sun.The regulator comprises a 3-stage charging method, which provides an increase in battery life expectancy compared to simple on/off regulators. The regulator also adjusts to battery type, battery capacity and ambient temperature to increase battery life. Addiotional features include, the energy management control output. This makes use of excess solar energy providing much higher utilization of the energy sustained by the solar system.
A solar regulator should be mounted out of direct sunlight and in an area where there is decent air flow. The solar regulators are extremely robust, and offer high performance and a long life. In addition to this, a solar regulator requires no maintenance aside from regular checks of the wired in connections to see that they are tight and corrosion free.
| Type | Max Current |
Dimensions L x Wx H |
Power consumption |

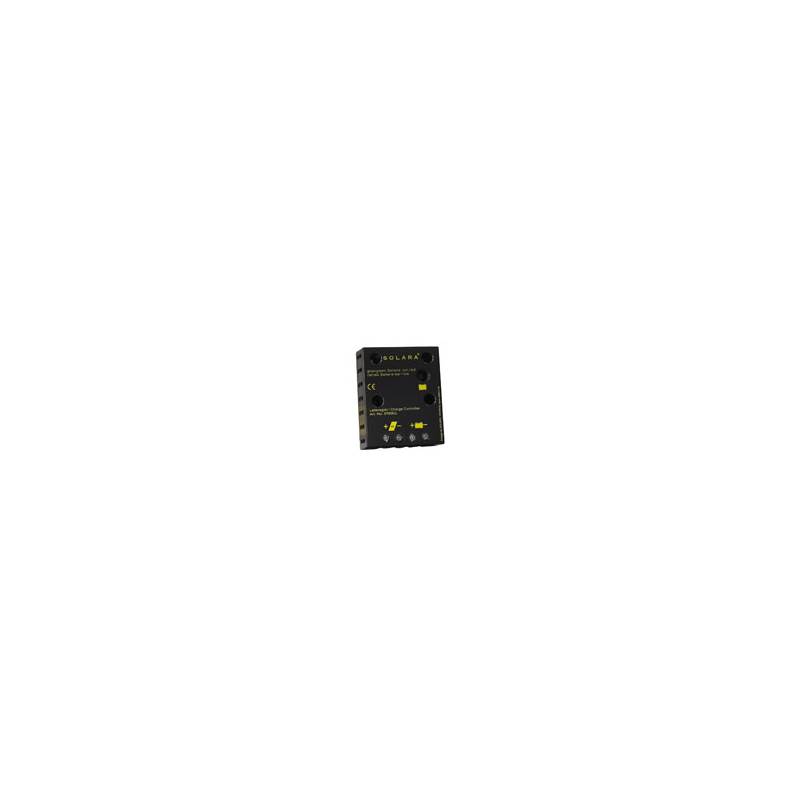

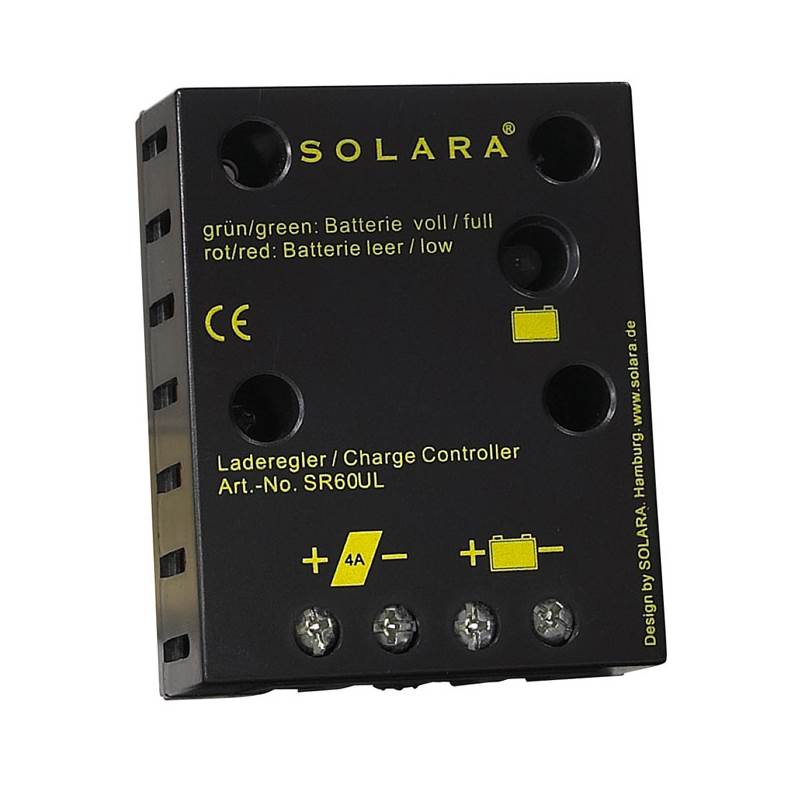

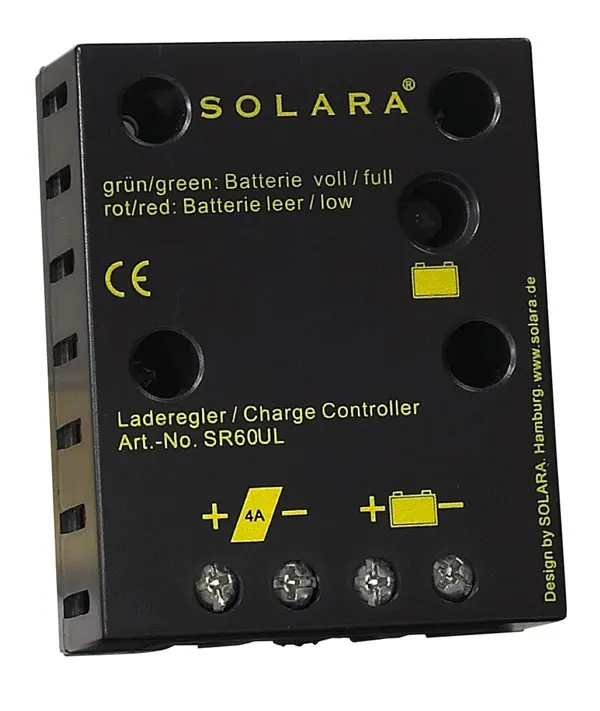

| SR60UL | 4A | 27 x 57 x 71 mm | <4 mA |
| SR135TL | 8A | 32 x 80 x 100 mm | <4 mA |
| Type | Max Current |
Dimensions L x Wx H |
Power consumption |
| SR170TL | 10A | 34 x 216 x 133 mm | < 4 mA |
| SR340TL | 20A | 34 x 216 x 133 mm | < 4 mA |
