Studer AJ Sine Wave Inverters

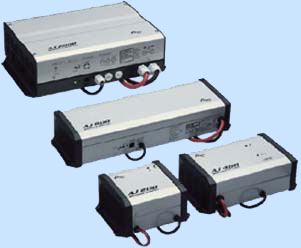

Sine wave inverters - Studer AJ series
The AJ series consist of pure sine wave inverters that convert your battery voltage to AC voltage for all AC devices.
The AJ series offers:
- a high and steady efficiency
- an outstandng overload capacity, thanks to the combined use of a toroidal transformer and
- a MOS power stage
- a digital regulation with microprocessor
- an electrical supply to any kind of electrical device
- a complete protection of the inverter (overload, overheat, short-circuit, reverse polarity)
- an adjustable stand-by level on a large range and from a very low level (optional
for AJ201, AJ252)
| Technical details | ||||||
Model |
AJ275 |
AJ350 |
AJ400 |
AJ500 |
AJ600 |
AJ700 |
Battery voltage (V) |
12 |
24 |
48 |
12 |
24 |
48 |
Input voltage (V) |
10.5-16 |
21-32 |
42-64 |
10.5-16 |
21-32 |
42-64 |
Nominal / Peak power (W) |
200 /275 |
300 /350 |
300 /400 |
400 /500 |
500 /600 |
500 /700 |
Standby /Idle power (W) |
0.3* /1.9 |
0.3* /3.3 |
0.4* /5 |
0.3 /3.8 |
0.4 /8.5 |
1.0 /10 |
Max efficiency (%) |
93 |
94 |
94 |
93 |
94 |
94 |
Dim. 142 x 84 x L (mm) L= |
163 |
240 |
||||
Weight in kg (approx.) |
2.4 |
2.6 |
4.5 |
|||
Remote control ability |
Option |
Option |
||||
Standby system (1 - 20 W) |
With option S |
Yes |
||||
Solar charger (option S) |
10A |
15A |
||||
IP protection Index |
IP 30 |
IP 30 |
||||
| Technical details | ||||
Model |
AJ1000 |
AJ1300 |
AJ2100 |
AJ2400 |
Battery voltage (V) |
12 |
24 |
12 |
24 |
Input voltage (V) |
10.5-16 |
21-32 |
10.5-16 |
21-32 |
Nominal / Peak power (W) |
800 /1000 |
1000 /1300 |
2000 /2100 |
2000 /2400 |
Standby /Idle power (W) |
0.3 /9 |
0.4 /10 |
0.5 /13 |
0.4 /18 |
Max efficiency (%) |
93 |
94 |
92 |
94 |
Dim. 142 x 84 x L (mm) L= |
428 |
273 x 399 x 117 |
||
Weight in kg (approx.) |
8.5 |
19 |
18 |
|
Remote control ability |
Yes |
Yes |
||
Standby system (1 - 20 W) |
Yes |
Yes |
||
Solar charger (option S) |
25 A |
30 A |
||
IP protection Index |
IP 30 |
IP 20 |
||
