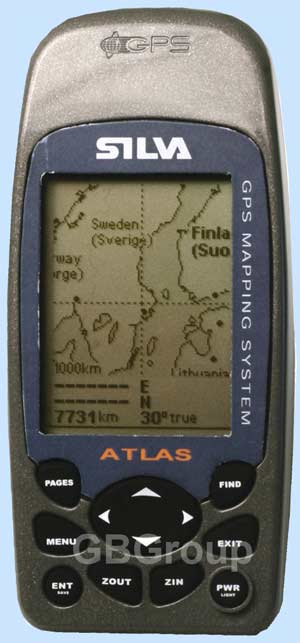

Silva Atlas GPS System
No matter if you are in the outdoors or if your main goal is to find a street in a city, Atlas will guide you to the correct destination.
Unique Easy/Advance mode makes it easy to get started no matter if you are a beginner in the GPS navigation field.
Pre-programmed mapping database covering the US with highways, rivers and lakes at your fingertips. It also has a built-in, low detail, world background mapping database.
Plug in one of a variety of Atlas Info MMC cards (optional) that represent your travel region and the resolution gets amazing! You can recall addresses and phone numbers of your favourite restaurants and points of interest, such as attractions, airports, cultural, entertainment, lodging, shopping etc., not to mention every back road on the map.
Technical Data
- Navigation
- Waypoints: 1,000 Waypoints
- Waypoint icons: 42 symbols
- Event markers: 1,000
- Routes: 10 reversible routes, each with up to 100 waypoints. Easy point and map cursor navigation/route planning
- Plot trails: 10 trails, max 10 000 trail points
- Unique Find Home navigation
- Map datums: More than 170 local map datums
- Grid systems: More than 10 including UTM, MGRS, plus British, Irish, Finnish, German, New Zealand, Swedish, Swiss, Taiwanese and Greek
Mapping
Built in maps: US road map. Low detail world map.
Atlas Info cards: High detail mapping including points of interest (attractions, airports, cultural, entertainment, lodging, shopping etc.) MMC1-Germany, MMC2-France/Monaco, MMC3-UK/Ireland, MMC4-Denmark/Norway/Sweden/Finland, MMC5-Italy/Liechtenstein/San Marino/Switzerland, MMC6-BeNeLux, MMC7-Spain/Andorra/Portugal, MMC8-Czech/Poland/Austria
Zoom range: Mutiple zoom ranges: 0.02 km-4,000 m
GPS Receiver
Receiver type: 12-channel parallel GPS + WAAS
Position update rate: 1 per second when in continuous GPS navigation mode down to 10 seconds update rate in power save mode.
Differential GPS/WAAS: Ready for differential corrections/WAAS.
Antenna: Built-in patch antenna, connection for external antenna.
Accuracy: 15 metres RMS. 1-5 metres RMS with DGPS/WAAS
Data I/O
NMEA 0183 Out
RTCM-SC104 DGPS Input
Miscellaneous
LCD: High-contrast backlit LCD, 4 level greyscale
LCD Resolution: 120x160 Pixels, 19 200 total.
Internal power: 2 pcs AA batteries (not included)
External power: 8-30 VDC
Battery life: Continuous GPS navigation up to 12 hours
Power save GPS navigation -up to 20 hours
Languages: English, French, German, Spanish, Italian, Danish, Swedish, Russian, Dutch and Finnish
Operating temperature range: –10°C to +60°C
Dimensions
Size: 142x65x25 mm
Weight: 153 g (excluding AA batteries)
Article number: 22581-901
Optional accessories
|
|
|
|
|
| Atlas Cig Plug Power Adapter – Art.no. 22608 |
Black holster Atlas – Art.no. 22606 |
Atlas Info Cards |
Atlas, Atlas Pro Remote antenna – Art.no. 22607 |
Vehicle kit Atlas (incl. cradle, RAM mount) – Art.no. 22604 |
Warranty
1-year limited warranty
