Pilot 12v Gas Valve Controller And Solenoid Valve 33114
 |
 |
 |
 |
 |
|

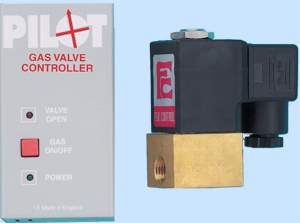

33114 Pilot 12V Gas Valve Controller and Solenoid Valve
The Pilot 12V Gas Valve Controller and Solenoid Valve unit is a remote electronic switch with a “solenoid” gas shut-off valve.
The Pilot 12V Gas Valve Controller and Solenoid Valve can be linked with the Mini or Dual Gas Alarms as a gas shutdown system. It has no sensors.
With the valve closed the controller draws 215 milliamps and 400 milliamps with the valve open.
Dimensions: 35 x 53 x 100 mm
The Solenoid Valve itself is mounted close to the gas bottle, downstream of the pressure-reducing valve. The value can only open when powered and when no leak is detected.
The solenoid valve is connected by two-core cable to the Gas Valve Controller.
The Pilot range and accessories
| Part no. |
Item |
Detail |
| 33110 |
Mini Gas Alarm |
One gas sensor |
| 33111 |
Dual Gas Alarm |
Two gas sensors |
| 33112 |
Gas Monitoring System |
Two sensors and shut-off valve |
| 33113 |
CO (Carbon Monoxide) Detector |
Built-in CO detector |
| 33114 |
Gas Valve Controller/Solenoid Valve |
Shut-off valve and switch |
| 33115 |
Detector/Sensor Head + 3.5 m Cable |
Spare sensor |
All technical information for this product is included within the description.
|
|
 |
|
|
|
|
