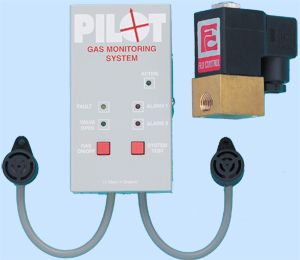

The Pilot 12 Volt Gas Monitoring System 33112 is supplied complete with two sensors and a solenoid valve.

The Pilot 12 Volt Gas Monitoring System unit is connected to the two sensors and it will automatically release the gas-shut off solenoid valve if gas is detected.

The Pilot 12 Volt Gas Monitoring System is versatile in that it can also be used as a remote switch for the solenoid valve. I is also possible to make a wire connection to other dual gas alarms and sensors.

The Pilot 12 Volt Gas Monitoring System draws 170 milliamps on standby, 400 milliamps with the valve open and 210 milliamps when it is in alarm mode.

Pilot gas alarms are powered directly by a 12-volt battery and they sense and give an alarm alert for LPG, butane and propane. The units are not calibrated for diesel fumes and petrol vapour but these will be detected at higher concentrations.

Sensors should be fitted as low as possible but the must not be allowed to get wet. They are important and effective safety equipment and are complemented by the solenoid gas shut-off valve available with some specifications.

Dimensions: 35 x 65 x 120 mm
