Status 315 Omni-Directional Antenna + 5 m Coax Cable
Status 315 Omni-Directional Antenna
Designed for mobile use, the Status 315 satisfies a number of important criteria, whilst overcoming some of the compromises associated with this design of antenna.
In the UK and a number of overseas countries TV signals are transmitted horizontally and vertically. Vertical reception requires a vertical receiver. The S315 achieves this with the Central Pinnacle. A clever solution which creates a distinctive profile setting it apart from the rest.
TV reception can be greatly affected by the orientation of the antenna and it is crucial that all antennas are mounted level. Therefore the S315 has the ability to be finely adjusted to remain level on gradients up to 22° – a unique feature only offered by Status.
The Omni-Directional S315 receives TV signals through 360° using an electronic amplifier to boost signals.
The S315 is available in two models depending on your particular installation. Both are designed to be versatile, offering three fitting options as standard - Permanent Fitting - 25 mm Mast Fitting and Suction Pad Fitting. The Permanent option can even be mounted over a small locker, as well as a wardrobe. The S315/5 has 5 metres of coaxial cable and the S315/10 has 10 metres.

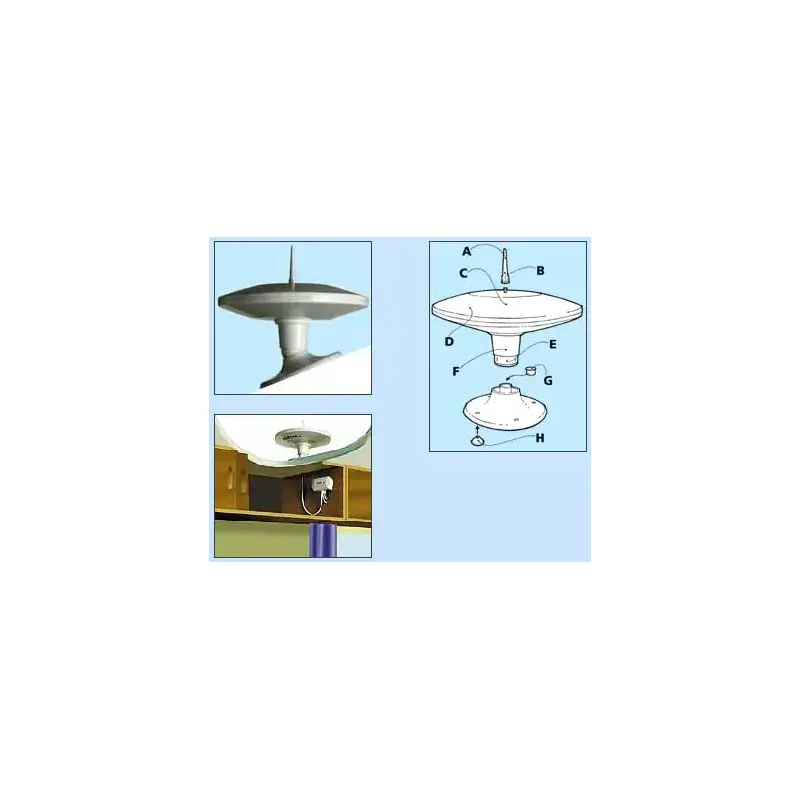

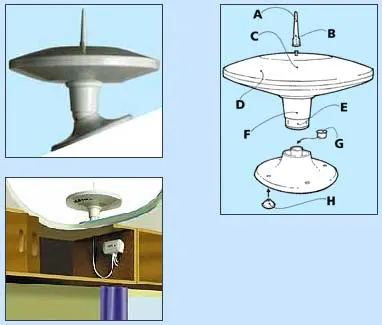

For ease of use the Pinnacle can be simply unscrewed in those instances where storage height is a problem. Furthermore, the antenna itself can be removed leaving in place the Mounting Foot, which can be sealed with a blanking cap.
And finally – Operation couldn't be simpler. Simply switch on your television and tune in.
The S315 has a proven track record of being the countries most popular Omni-Directional Antenna. By combining the latest in technology and design we believe we manufacture the best all round Omni-Directional antenna on the market today.
Features
Technical Specification Status 315
04-2064/5 Model |
5 m coaxial cable |
04-2064/10 Model |
10 m coaxial cable |
Frequency Range |
TV UHF 470-860 Mhz |
TV VHF 40-230 Mhz |
|
Radio FM 88-108 Mhz |
|
Amplifier Gain |
18 db* |
Gain Adjustment |
15 db |
Flatness |
+2 db |
Noise Figure |
3 db |
Output Impedance |
75 ohms |
Output |
98dbuv |
Power Supply |
12-24 v DC |
Power Consumption |
35 ma |
TV Lead |
2 metres |
Power Pack |
1520 x 80 x 36 mm |
* Gain figures must not be judged in isolation. A greater figure does not mean a better picture. Status is designed for optimum performance. Conforms to the European directive 89/336/EEC.
Dimensions
- Diameter - Antenna dome 315 mm
- Diameter - Mounting foot 185 mm
- Height - Overall 280 mm
- Height - No pinnacle 180 mm
- Height - No antenna dome 50 mm
