Lowrance LMS 525c DF iGPS Chartplotter/Echosounder

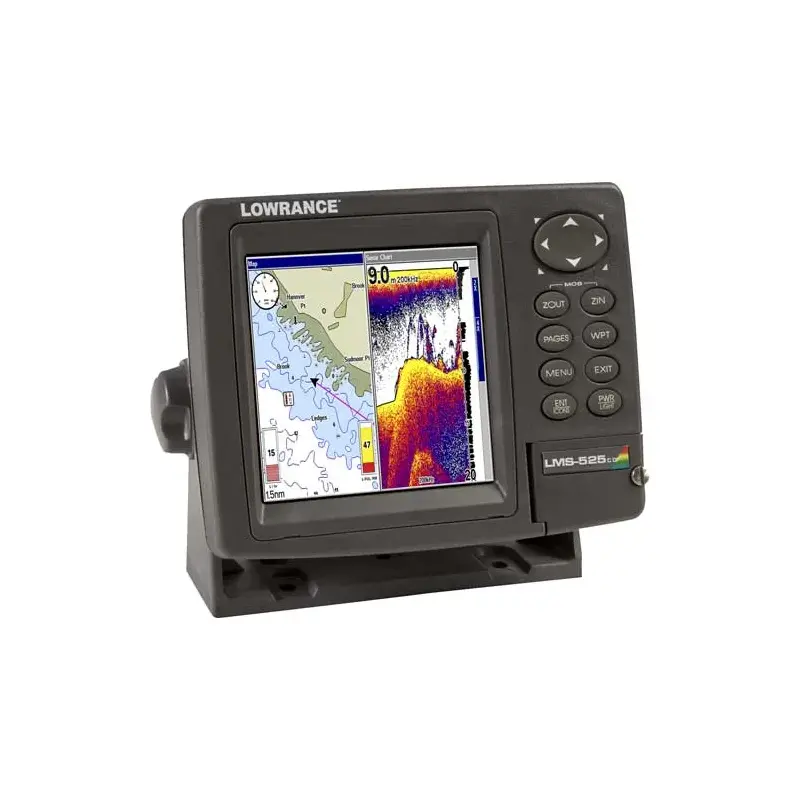

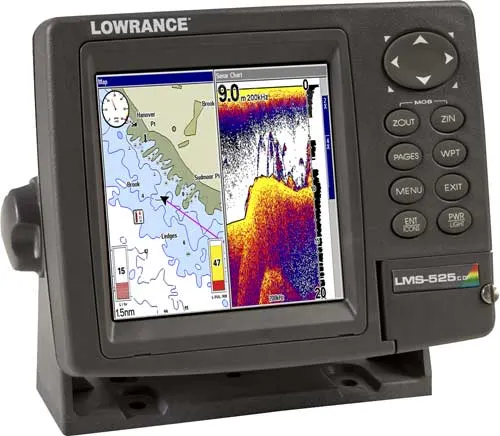

The Lowrance LMS 525c DF iGPS Chartplotter/Echosounder is designed for salt water or downrigger tracking. This dual-frequency sonar/GPS chartplotter provides extra 50 kHz readings in addition to a high-res 480 x 480 display on a 5-inch screen and many professional features.

Features

Display

• 5.0-inch (12.7-cm) diagonal 16-bit colour SolarMax TFT display
• High-detail 480V x 480H pixel resolution
• High-speed screen updates
• Wide viewing angles in all light conditions
• Advanced cold-cathode screen and keypad backlighting
• Multiple sonar display colour choices

Sonar/Sounder

• Depth penetration to 2,500 ft (760 m) at 50 kHz
• 4,000 W peak-to-peak power
• Dual frequency 200/50 kHz Skimmer transducer
• temperature/speed/distance readings
• Adjustable ping speed with automatic HyperScroll for high-speed sounding
• FasTrack vertical flasher bar
• Standard sonar features - Advanced Signal Processing (ASP), colourLINE, Advanced Fish Symbol ID, FishTrack, multi-zoom options, sonar alarms, backup memory and more

GPS/WAAS/Mapping

• Precision 12-parallel channel external GPS+WAAS receiver
• Expanded, built-in enhanced background map of the continental US and Hawaii with over 3,000 lakes with depth contours and additional features
• Optional MapCreate Accessory Pack to create higher-detail mapping
• Compatible with optional plug-and-play Lowrance FreedomMaps, Fishing Hot Spots Pro, LakeMaster Pro Maps, NauticPath and Navionics electronic charts
• One-touch MOB (man overboard)
• 1,000 waypoints/1,000 event markers/100 routes
• 100 saveable plot trails/10,000 points per trail
• 42 different graphic icons to mark your favourite spots
• 40 map zoom ranges, 0.02–4,000 miles

Plus

• LowranceNET networking (NMEA 2000 certification pending)
• 5-pin Ethernet expansion port compatible for radar and satellite radio
• One full RS-232 port for NMEA 0183 data communications
• One waterproof slot for digital media card (MMC/SD not included) to record graphs, GPS details and display optional custom mapping
• Back-up memory saves customised settings
• Sealed and waterproof
• Full 1-year warranty
