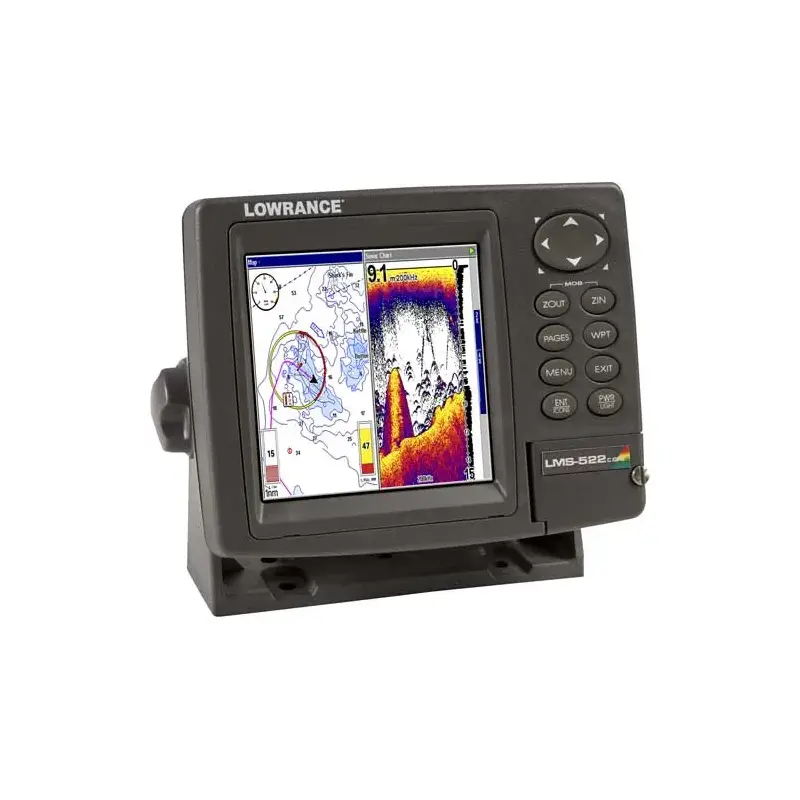

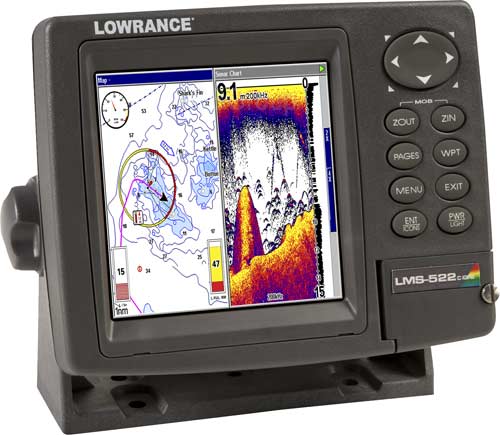

Lowrance LMS 522c iGPS Sonar/Chartplotter

The Lowrance LMS 522C iGPS Sonar/Chartplotter is a superb new colour 200 kHz sonar/GPS chartplotter with the convenience of a built-in precision GPS+WAAS satellite antenna that’s perfect for vertical console mounting on open cockpit boats for inshore and inland fishfinding and navigation.

Features

Display

• 5.0-inch (12.7-cm) diagonal 16-bit colour SolarMax TFT display
• High-detail 480V x 480H pixel resolution
• High-speed screen updates
• Wide viewing angles in all light conditions
• Advanced cold-cathode screen and keypad backlighting
• Multiple sonar display colour choices

Sonar/Sounder

• Depth penetration to 900 ft (275 m)
• 2,400 W peak-to-peak power
• High-performance transom-mount 200 kHz Skimmer transducer with up to 60º of fish detection coverage and a built-in temperature sensor
• Adjustable ping speed with automatic HyperScroll for high-speed sounding
• FasTrack vertical flasher bar
• Standard sonar features - Advanced Signal Processing (ASP), colourLINE, Advanced Fish Symbol ID, FishTrack, multi-zoom options, sonar alarms, backup memory and more

GPS/WAAS/Mapping

• Precise internal 12-parallel channel GPS+WAAS receiver
• Expanded, built-in enhanced background map of the continental US and Hawaii with over 3,000 lakes with depth contours and additional features
• Optional MapCreate Accessory Pack to create higher-detail mapping
• Compatible with optional plug-and-play Lowrance FreedomMaps, Fishing Hot Spots Pro, LakeMaster Pro Maps, NauticPath and Navionics electronic charts
• One waterproof slot for digital media card (MMC/SD not included) to record graphs, GPS details and display optional custom mapping
• One-touch MOB (man overboard)
• 1,000 waypoints/1,000 event markers/100 routes
• 100 saveable plot trails/10,000 points per trail
• 42 different graphic icons to mark your favourite spots
• 40 map zoom ranges, 0.02–4,000 miles

Plus

• LowranceNET networking (NMEA 2000 certification pending)
• 5-pin Ethernet expansion port compatible for radar and satellite radio
• One full RS-232 port for NMEA 0183 data communications
• One waterproof slot for digital media card (MMC/SD not included) to record graphs, GPS details and display optional custom mapping
• Back-up memory saves customised settings
• Sealed and waterproof
• Full 1-year warranty
