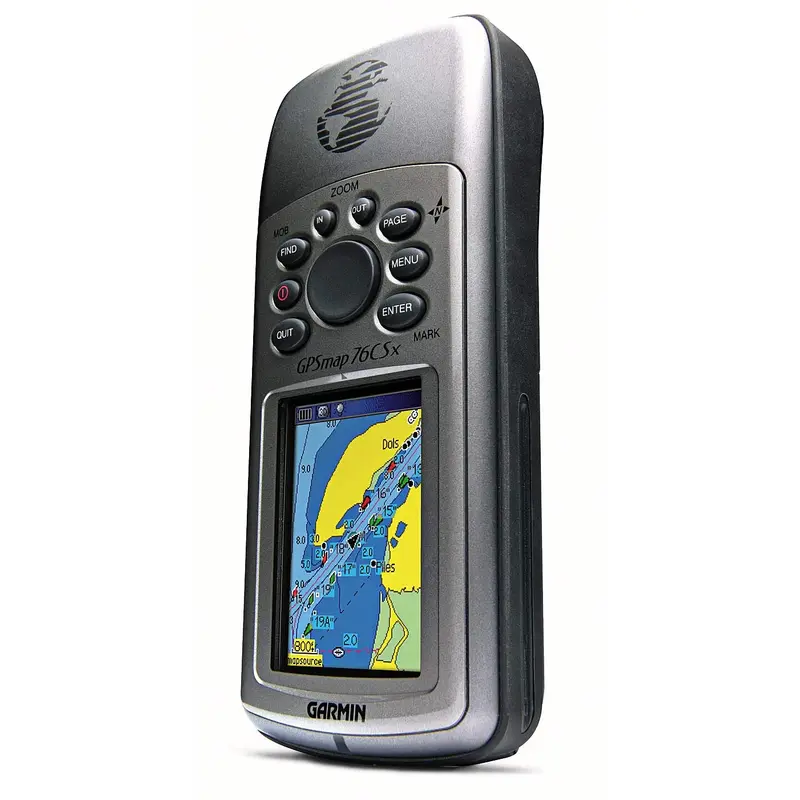

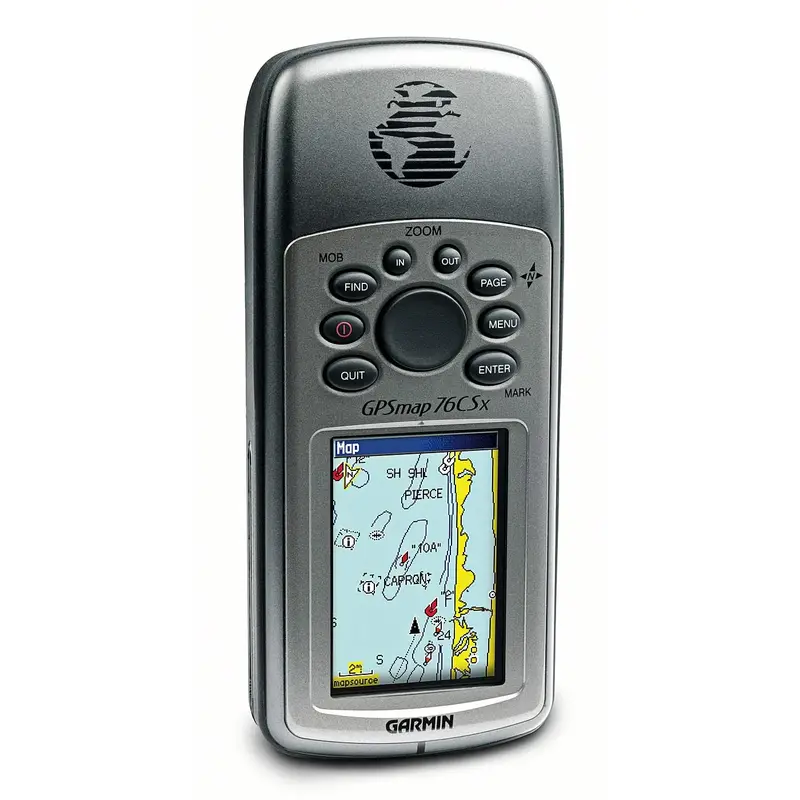

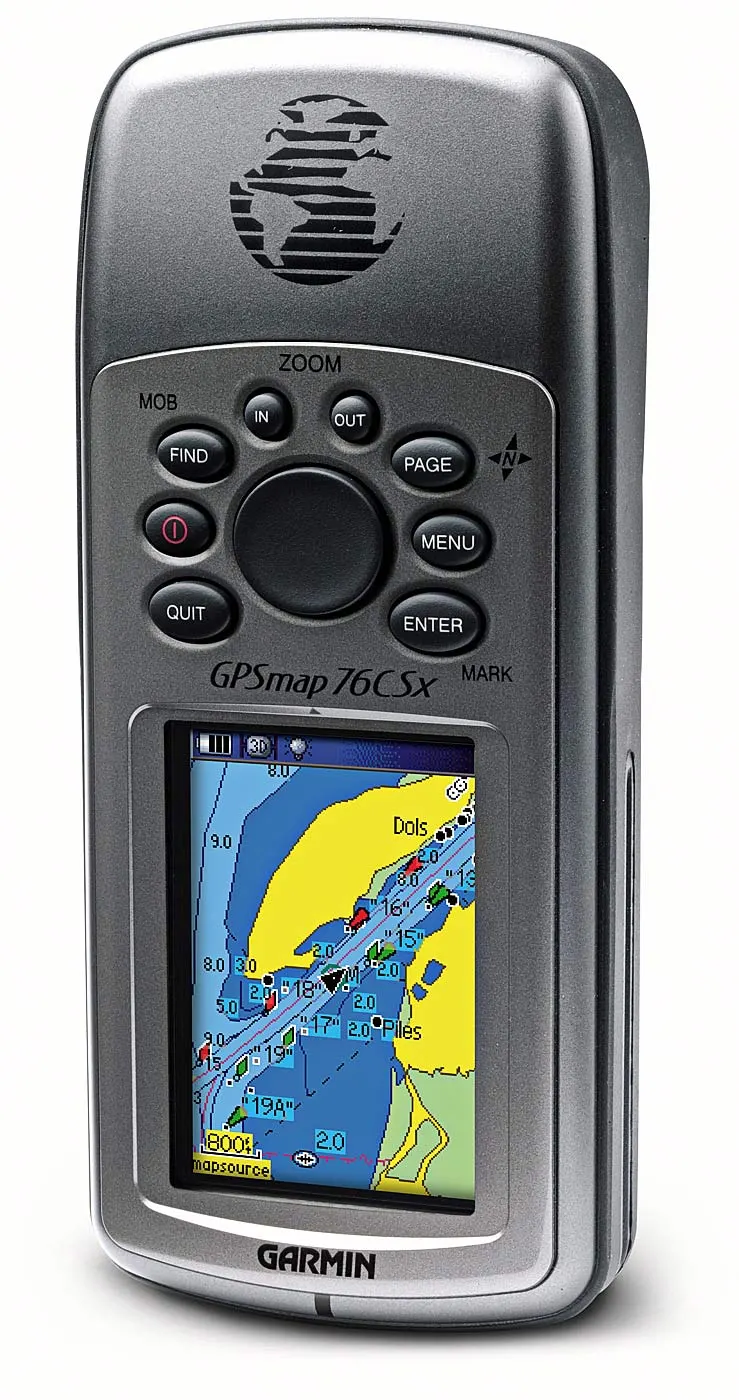

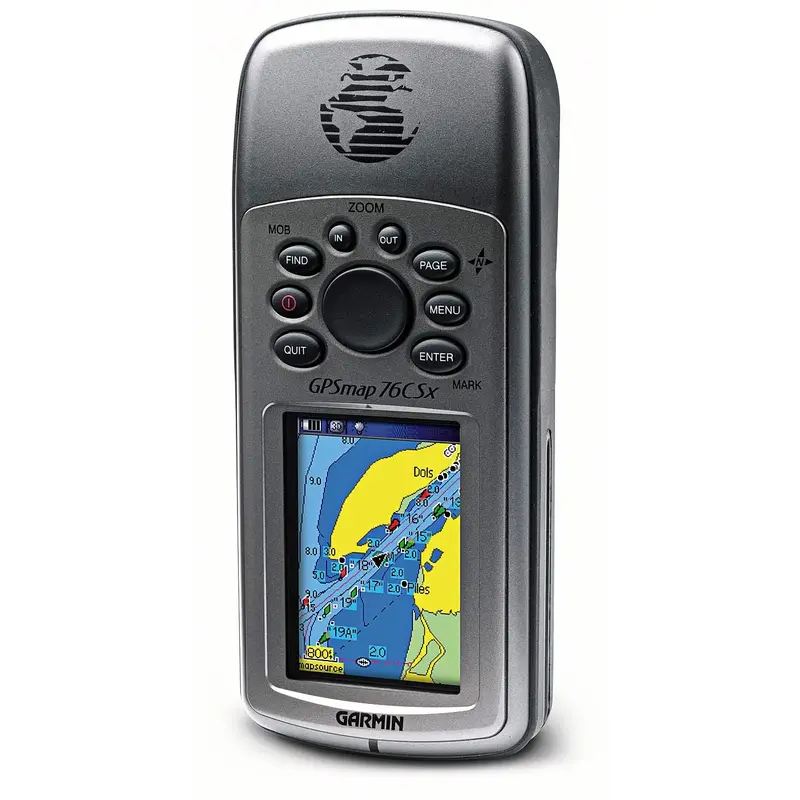

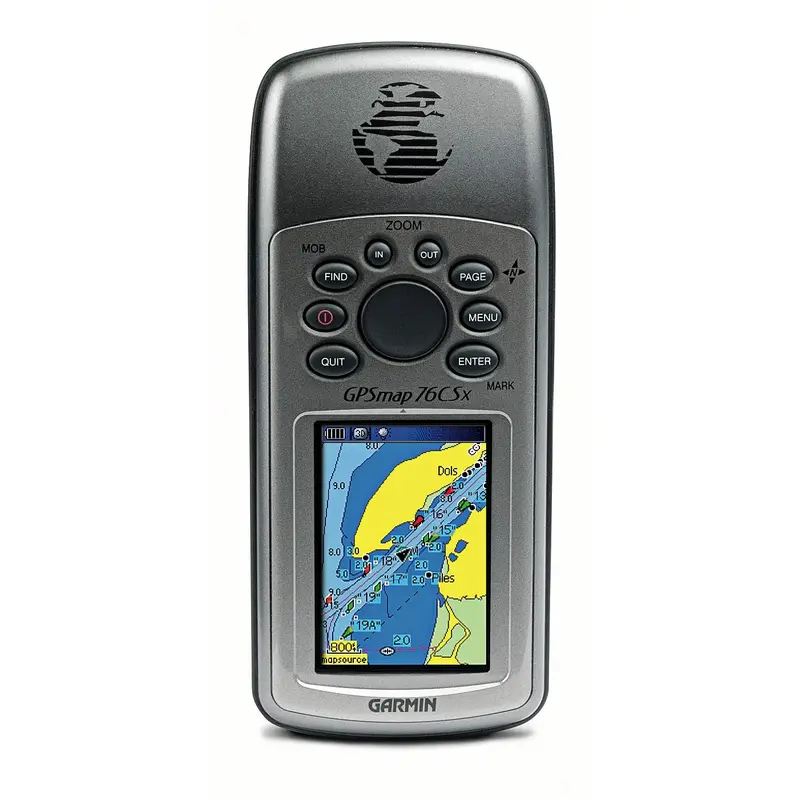

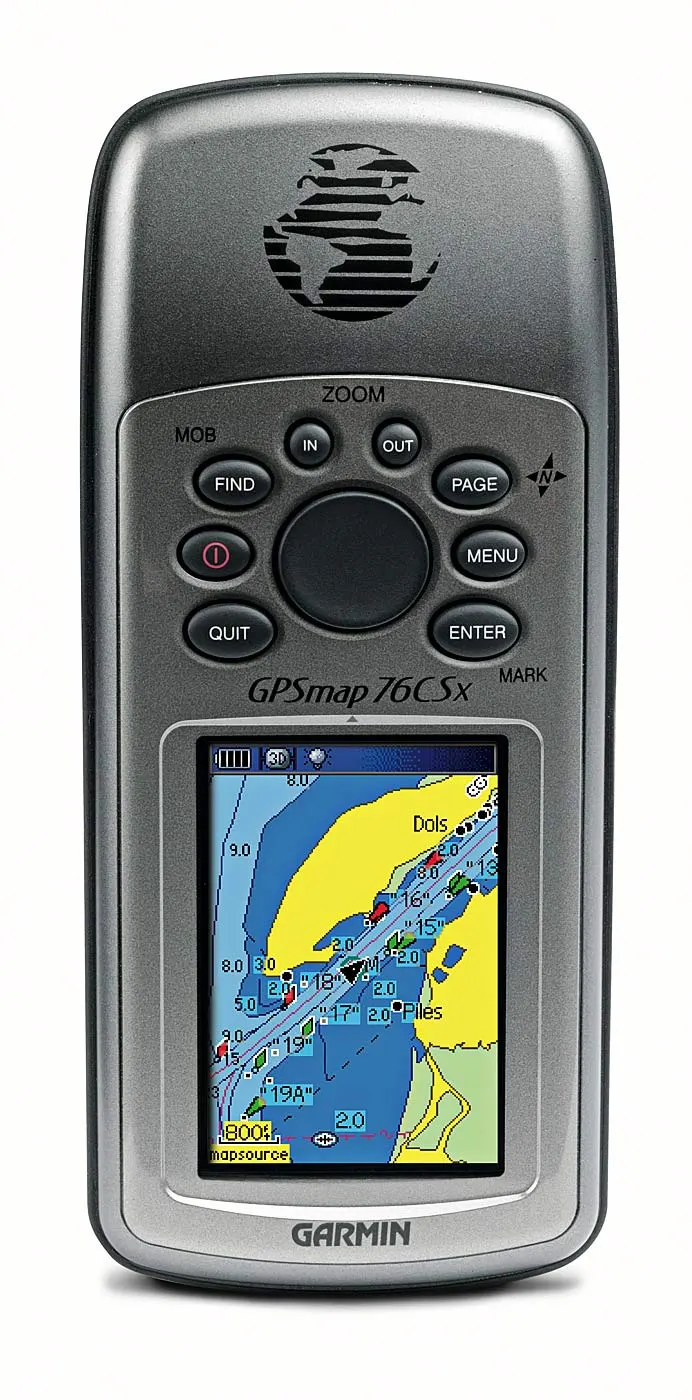

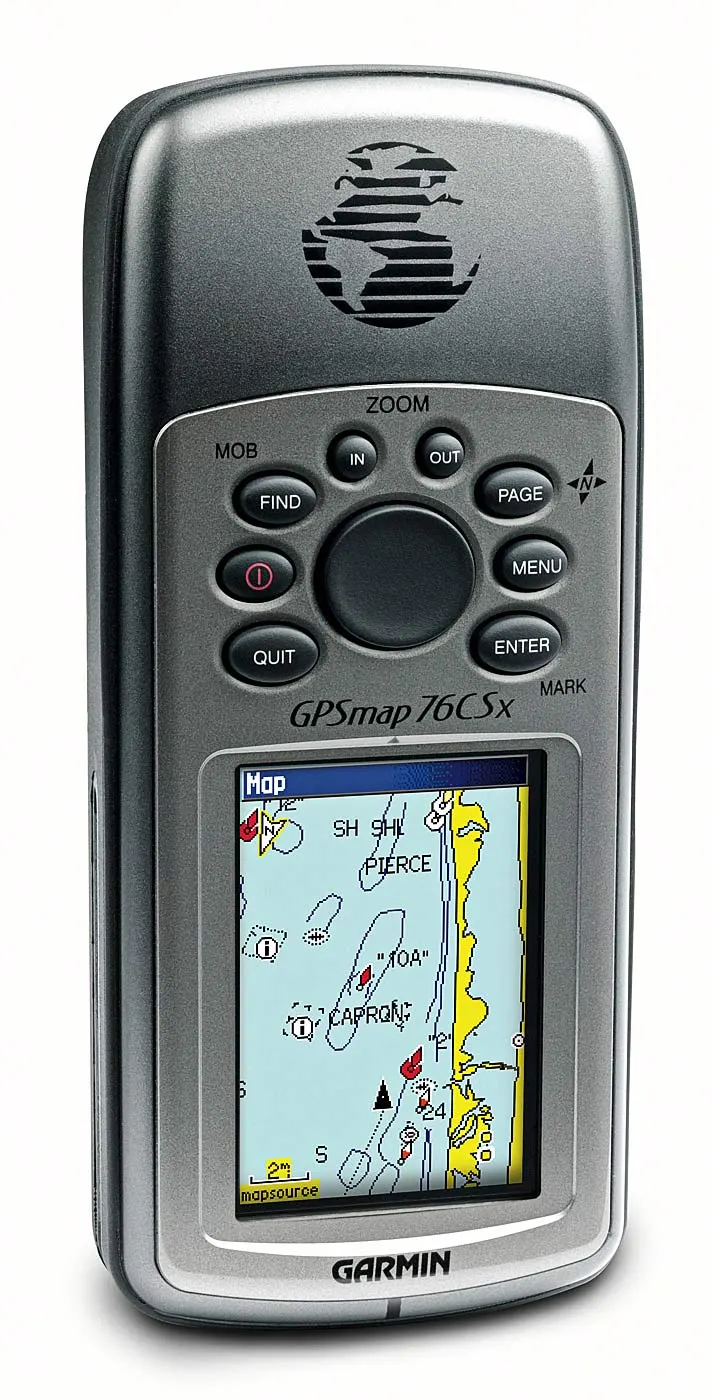

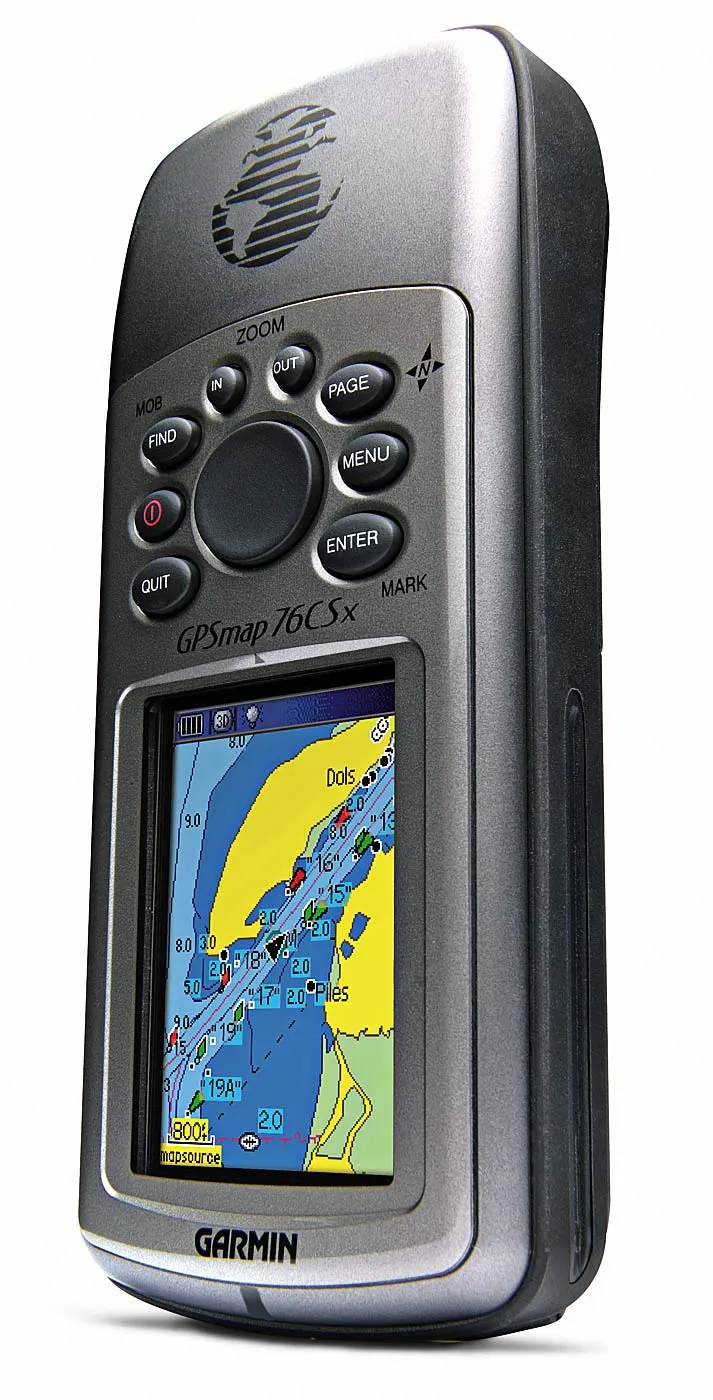

Garmin GPSMAP 76Csx Handheld GPS Unit

Refreshing a GPS standard, the Garmin GPSMAP 76Csx Handheld GPS Unit is the latest in the GPSMAP 76 range.

With its larger screen and popular anchor drag alarm, the GPSMAP 76Csx is the top handheld model for outdoor and marine use.

The 76Csx comes with a removable microSD card for additional map or chart memory and a waterproof, rugged housing. The microSD card slot is located inside the waterproof battery compartment. Users can load map data and transfer routes and waypoints through the unit’s fast USB connection.

In addition, this unit features a highly sensitive GPS receiver that acquires satellites faster and lets users track their location in challenging conditions, such as heavy foliage or deep canyons. The GPSMAP 76Csx also incorporates a barometric altimeter for extremely accurate elevation data and an electronic compass that displays an accurate heading while standing still.

Now the most advanced product serious outdoor enthusiasts, the GPSMAP 76Csx and offers a large colour TFT display and turn-by-turn routing capability. These units also float when dropped in the water.

Each unit comes with a blank 128 MB microSD card. Owners of these new x-series handhelds can also purchase new microSD cards that are pre-loaded with MapSource Topo and inland lake maps, BlueChart marine cartography and City Navigator street maps.

GPSMAP 76Csx Features

• High-sensitivity WAAS-capable GPS receiver by SiRF
• Built-in quad-helix receiving antenna with remote antenna capability
• Unit dimensions: 2.7 W x 6.2 H x 1.4 D inches
• Display: 1.5 W x 2.2 H inches, 2.6-inch diagonal, 256-colour, transflective TFT (160 x 240 pixels)
• Weight: 7.6 ounces with batteries (not included)
• Sensors:
• Electronic compass displays accurate heading while standing still
• Barometric altimeter with automatic pressure trend recording
• microSD card slot allows for storage of optional MapSource detail (128 MB microSD included)
• LED backlit display and keypad
• Battery life: 20 hours (typical use) using 2 x AA alkaline batteries
• Includes a built-in Americas autoroute basemap with automatic routing capabilities, including highways, exits and tide data (USA only)
• Internal memory is preloaded with a marine point database
• 1000 user waypoints with name and graphic symbol; 50 reversible routes
• Position formats include Lat/Lon, UTM, Loran TDs, Maidenhead, MGRS, user grid and more
• Audible alarms for anchor drag, arrival, off-course, proximity waypoint, and clock
• Large-numbers option for easy viewing; dual-position display mode
• Trip computer provides odometer, stopped time, moving average, overall average, total time, max speed and more
• 10,000-point automatic track log; 20 saved tracks (500 points each) let you retrace your path in both directions
• Elevation computer provides current elevation, ascent/descent rate, minimum/maximum elevation, total ascent and descent, average and maximum ascent and descent rate
• Navigation instructions can be shared with repeaters, plotters, and autopilots using NMEA protocols through the dedicated serial port
• Built-in celestial tables for sun and moon calculations and the best times to fish and hunt
• Compatible with most MapSource products including BlueChart, City Navigator, US TOPO 24K, US TOPO and Recreational Lakes with Fishing Hot Spots
• Water resistance: IEC 60529 IPX7 standards
• Unit floats when dropped in the water

Package Includes

• GPSMAP 76Csx unit
• 128 MB microSD
• USB interface cable
• MapSource Trip & Waypoint Manager CD
• Lanyard
• Owner's Manual
• Quick-Start Guide
