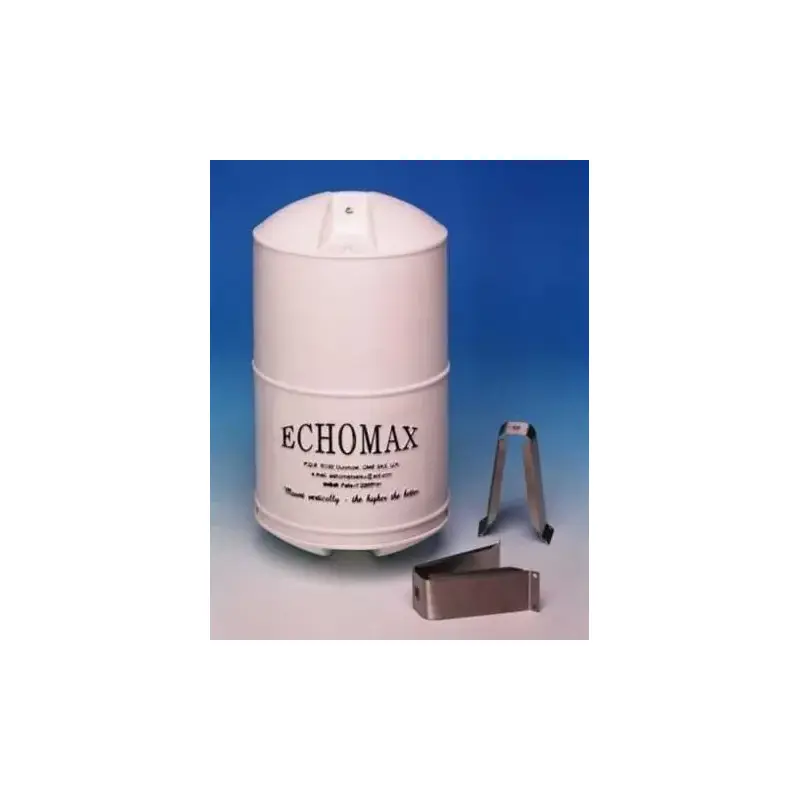

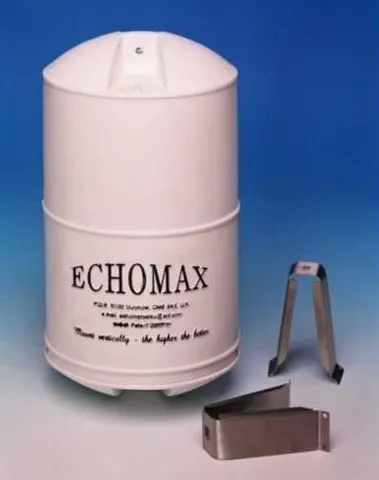

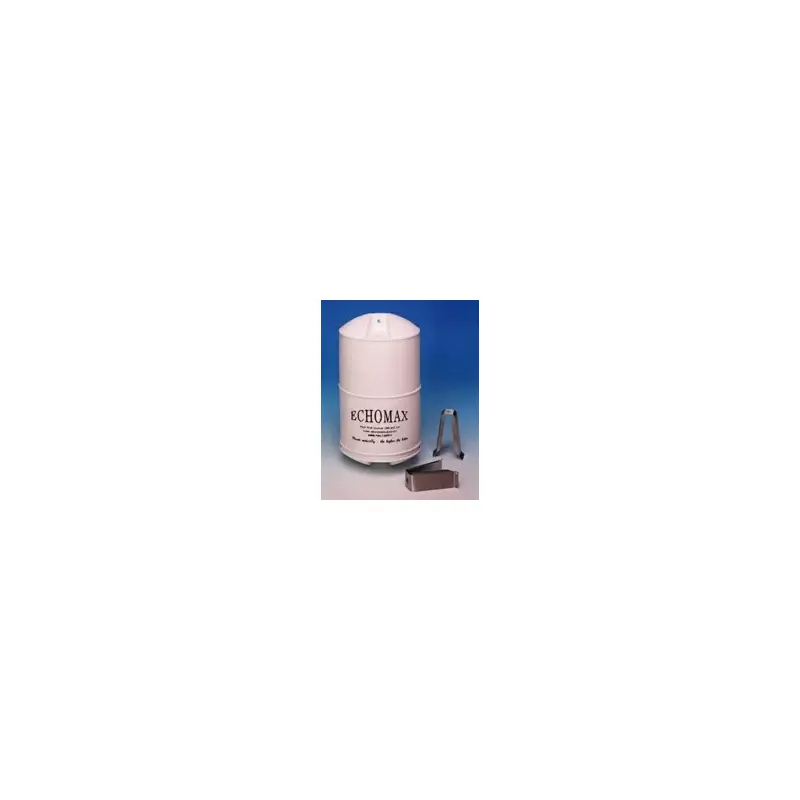

Echomax EM230 Midi Original Radar Reflector

The Echomax EM230 Midi Original Radar Reflector is the smallest of the Echomax polyethylene models.

Compact and highly efficient, QinetiQ (DERA) tests proved the Echomax EM230 Midi to give a peak response of 20 sq m at ±3° with four 90° azimuth sectors, responding at 10 sq m; response of 75% at 2.5 sq m; and 100% response at 1.25 sq m.

An ideal reflector for sailing yachts, RIBs, motor cruisers and angling boats, the Echomax EM230 Midi Original Radar Reflector meets the RORC/ORC requirement of 10 sq m peak but fails ISO 8729 by 2° per sector.

Please note: Claimed performance figures may vary slightly from product to product due to circumstances beyond the manufacturer's control.

The EM230 Midi is available in white, bright orange or black (other colours to order).

Specification

• Length 450 mm
• Distance between centres 400 mm
• Overall diameter 245 mm
• Fixing holes 10 mm
• Weight 1.7 kg
