Eagle IntelliMap 502c iGPS Chartplotter

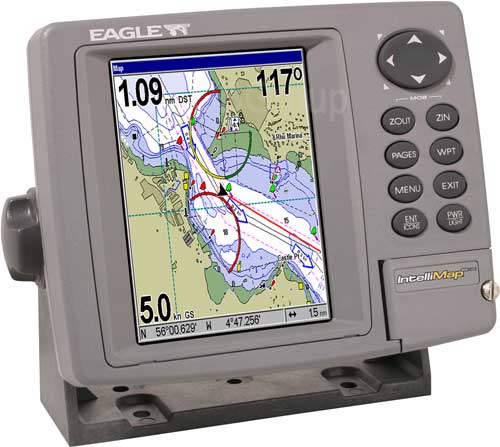

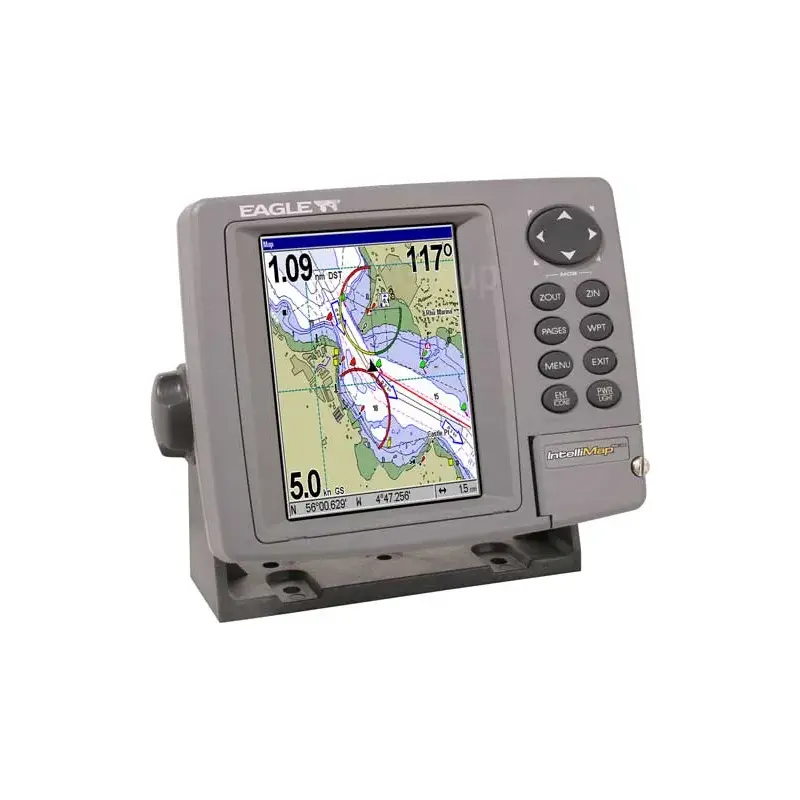

The Eagle IntelliMap 502c iGPS Chartplotter is a full-size, stand-alone mapping GPS+WAAS with 256-colour, sunlight-viewable 320 V x 240 H pixel, high-res TFT display.

The IntelliMap 502c iGPS now features an internal GPS+WAAS antenna.

Features

• Ultra-bright, 5-inch (12.7-cm) diagonal screen
• 256-colour, enhanced TFT LCD
• 320 V x 240 H resolution
• Fluorescent cold-cathode backlit screen and keypad
• Unique resize window to adjust split-screen display
• Overlay data feature displays GPS data on any full- or split-screen display

• Waterproof card slot for one MMC/SD memory card (not included) to record GPS data files and to load high-detail electronic chart options for navigational display
• Compatible with optional plug-and-play Lowrance FreedomMaps, Fishing Hot Spots Elite, LakeMaster Pro Maps, NauticPath Coastal and Navionics electronic charts on MMC/SD cards

• Built-in, 12-parallel channel GPS+WAAS antenna
• WAAS-enabled for enhanced position accuracy to 3 m (under 10 ft) at select locations
• Custom, built-in background map with enhanced continental US and Hawaii detail including over 60,000 navigational aids and 10,000 wrecks and obstructions in coastal and Lakes waters as well as interstate exit services and more inland navigation features
• Optional GPS Mapping Accessories Pack with MapCreate CD software, one digital media card and an MMC/SD card reader/writer that:
  • Lets you create unlimited, custom, detailed maps on reuseable digital media cards (MMC/SD)
  • Includes unique, searchable database of streets, addresses and over 2,000,000 Pointss-of-Interest (POI) to easily find/identify marinas, fuel, restaurants, hotels, airports, emergency services and more
• Saves up to 1,000 waypoints, 1,000 event markers and 100 routes (up to 100 waypoints/route)
• 100 saveable plot trails with up to 10,000 points in any trail
• 42 graphic icons to mark your favourite spots
• 40 map zoom ranges from 0.02 to 4,000 miles with easy zoom-in/out control
• Selectable on/off GPS alarms: Off Course, Arrival and Anchor
• One-touch MOB (man overboard) navigation
• High-speed screen updates

• Internal back-up memory keeps your preferred GPS settings and stored GPS data safe and accessible for years
• Rugged, reliable, completely sealed and waterproof casing, even for use in harsh saltwater environments
• Full 1-year warranty
