Eagle Intellimap 480 Chartplotter
 |
 |
 |
 |
 |
|

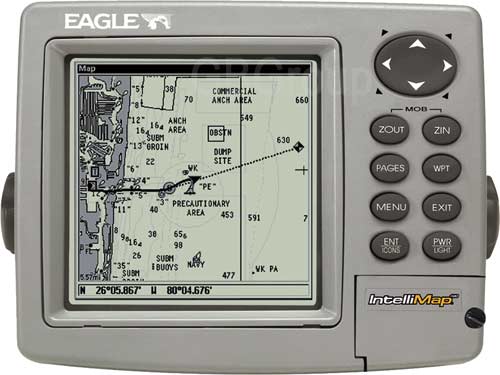

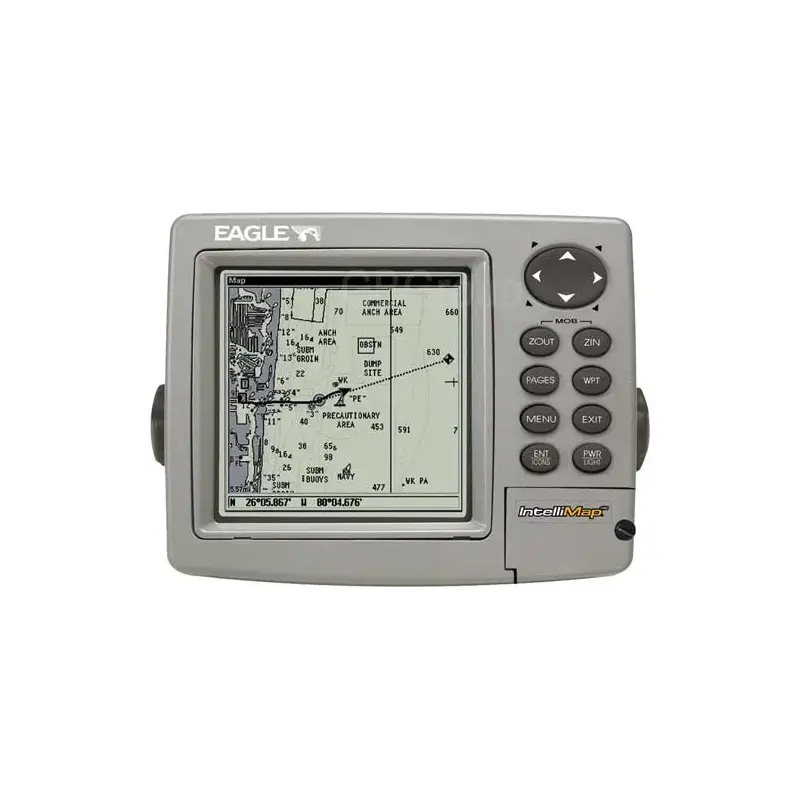

Eagle IntelliMap 480 Chartplotter
The Eagle IntelliMap 480 Chartplotter is a new world-class, stand-alone Eagle
GPS+WAAS mapping system.
Its 480 x 480 high-resolution display
provides fantastic mapping detail and the IntelliMap 480 is so smart,
it displays MapCreate, Navionics and HotMaps mapping.
Features
Display
- 5-inch (12.7-cm) diagonal screen
- Film SuperTwist LCD
- High-definition 480 x 480 resolution
- Amber LED backlit screen and keypad
- 16-level greyscale
GPS+WAAS
- 12-parallel channel GPS+WAAS reception with fast satellite
lock-ons, precise tracking and position updates every second with the
external EGC-12W receiver
- Selectable on/off WAAS reception for enhanced position accuracy to 3 m (under 10 ft) at select locations
- Digitally
record/play GPS trip details and display custom mapping with optional,
reuseable compact Multi-Media Cards (MMC) or Secure Digital (SD) memory
cards plus one waterproof slot for instantly expandable memory using a
single 8-512 MB card
- All-new, built-in Eagle background map with enhanced continental US and Hawaii detail including navigational aids
- High-speed screen updates
- Optional MapCreate Accessories Pack with MapCreate CD software that:
- Lets you create unlimited, custom, detailed maps on MMC or SD memory cards
- Includes
unique, searchable database of streets, addresses and over 700,000
Pointss-of-Interest (POI) to easily find/identify marinas, restaurants,
airports, emergency services and more
- Saves up to 1,000 waypoints, 1,000 event markers and 100 routes (up to 100 waypoints/route)
- 100 saveable plot trails with up to 10,000 points per trail
- 42 graphic icons to mark your favourite spots
- 38 map zoom ranges from 0.04 to 4,000 miles with easy zoom-in/out control
- Selectable on/off GPS alarms: Off Course, Arrival and Anchor
- Compatible
with optional plug-and-play Lowrance FreedomMaps, Fishing Hot Spots
Elite, LakeMaster Pro Maps and Navionics electronic charts on MMC/SD
cards
Performance
- Internal back-up memory keeps stored GPS data and settings safe and accessible for years
- Completely sealed and waterproof, even for use in harsh saltwater environments
- Full 1-year warranty
All technical information for this product is included within the description.
|
|
 |
|
|
|
|
