Eagle Fishelite 640c Chartplotter & Echosounder

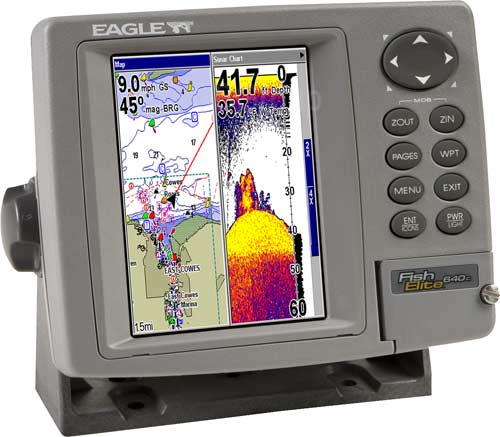

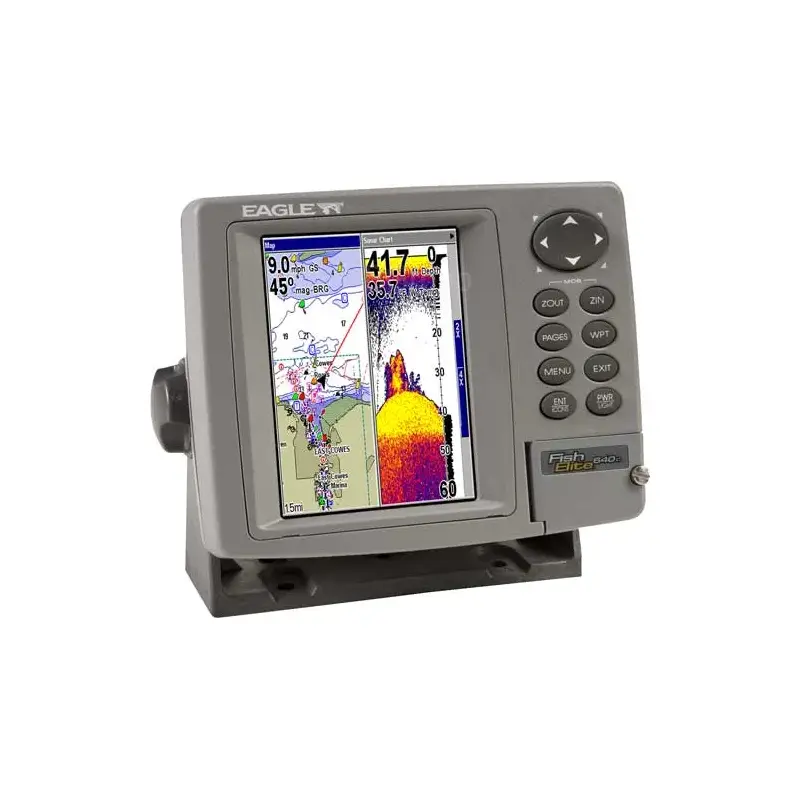

Eagle FishElite 640c Chartplotter and Echosounder

The full-size, high-definition, 256-colour, 640Vx480H pixel, TFT display of the Eagle FishElite 640c Chartplotter and Echosounder makes this combo 200 kHz sonar and mapping GPS+WAAS unit the choice of the pros.

Features

• Ultra-bright, 5-inch (12.7-cm) diagonal screen
• 256-colour, enhanced TFT LCD
• High-definition 640V x 480H resolution
• Fluorescent cold-cathode backlit screen and keypad
• Unique resize window to adjust split-screen display
• Overlay data feature displays sonar/GPS data on any full- or split-screen display

• Depth capability to 800 ft* (244 m) with 1500 W of peak-to-peak power (187W RMS)
• High-performance, low-profile 200 kHz Skimmer transducer with built-in temperature sensor delivers up to 60° of fish detection area with high sensitivity settings - operates at boat speeds up to 70 mph (61 knots); variety of other transducer purchase options available
• Trolling speed and distance log readings available with purchase of an optional sensor
• Adjustable ping speed with automatic HyperScroll to display fish targets at higher boat speeds
• Choice of six colour display modes to match outdoor light conditions and to help reveal fish hidden in underwater cover
• FasTrack vertical bar flasher displays real-time sonar returns and relative strength of each target
• Advanced Signal Processing (ASP) automatically adjusts your settings for the best sonar picture
• colourLINE separates fish from nearby structure and bottom and helps define bottom composition and hardness
• Advanced Fish ID shows underwater targets in different sizes of fish symbols
• FishTrack displays target depth readings above fish symbols
• Surface water temperature readings come from a built-in temperature sensor in the transducer
• Zoom with zoom bottom tracking and easy zoom-in/out control
• Selective on/off sonar alarms: Shallow, Deep, Fish and Zone

• Waterproof card slot for one MMC/SD memory card (not included) to record sonar graphs and GPS data files and to load high-detail electronic chart options for navigational display
• Compatible with optional plug-and-play Lowrance FreedomMaps, Fishing Hot Spots Elite, LakeMaster Pro Maps, NauticPath Coastal and Navionics electronic charts on MMC/SD cards

• 12-parallel channel GPS+WAAS reception with fast, strong satellite lock-ons, precise tracking and position updates every second with the external EGC-12W receiver
• WAAS-enabled for enhanced position accuracy to 3 m (under 10 ft) at select locations
• Custom, built-in background map with enhanced continental US and Hawaii detail including over 60,000 navigational aids and 10,000 wrecks and obstructions in coastal and Lakes waters, as well as interstate exit services and more inland navigation features
• Optional GPS Mapping Accessories Pack with MapCreate CD software, one digital media card and an MMC/SD card reader/writer that:
  • Lets you create unlimited, custom, detailed maps on reusable digital media cards (MMC/SD)
  • Includes unique, searchable database of streets, addresses and over 2,000,000 Pointss-of-Interest (POI) to easily find/identify marinas, fuel, restaurants, hotels, airports, emergency services and more
• Saves up to 1,000 waypoints, 1,000 event markers and 100 routes (up to 100 waypoints/route)
• 100 saveable plot trails with up to 10,000 points per trail
• 42 graphic icons to mark your favourite spots
• 40 map zoom ranges from 0.02 to 4,000 miles with easy zoom-in/out control
• High-speed screen updates

• Internal back-up memory keeps stored GPS data and sonar settings safe and accessible for years
• Rugged, reliable, completely sealed and waterproof casing, even for use in harsh saltwater environments
• Full 1-year warranty

* Actual depth capabilities depend on transducer configuration and installation, bottom composition and water conditions. All sonar units typically read deeper in freshwater than saltwater.
