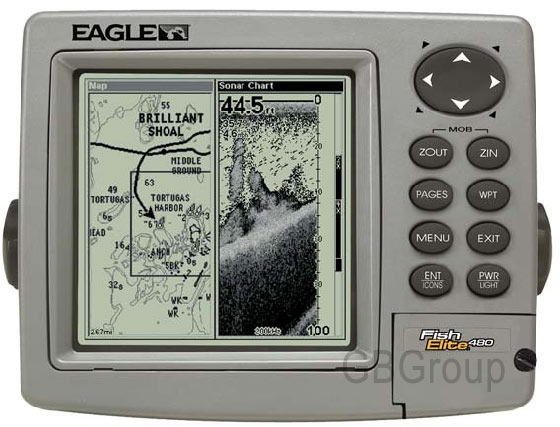

Eagle Fishelite 480 Chartplotter And Echosounder

Eagle FishElite 480 Chartplotter and Echosounder

The Eagle FishElite 480 Chartplotter and Echosounder is the topflight 480 x 480 recording sonar/GPS + WAAS/mapping combo.

The Eagle FishElite 480 has it all, with superior resolution, target separation and power.

Features

• 5-inch (12.7-cm) diagonal screen
• Film SuperTwist LCD
• High-definition 480 x 480 resolution
• Amber LED backlit screen and keypad
• 16-level greyscale
• Overlay data feature displays GPS data on sonar screens and sonar data on GPS screens
• Resize window feature allows width adjustment of either picture panel when in split-screen display

• Digitally record/play sonar graphs and GPS trip details with optional, reuseable compact Multi-Media Cards (MMC) or Secure Digital (SD) memory cards plus one waterproof slot for instantly expandable memory using a single 8-512 MB card
• Depth capability to 800 ft (244 m) with 1500 W of peak-to-peak power
• High-performance, low-profile 200 kHz Skimmer transducer with built-in temperature sensor delivers up to 60° of fish detection area with high sensitivity settings - operates at boat speeds up to 70 mph (61 knots)
• Trolling speed and distance log readings available with purchase of an optional sensor
• FishReveal feature exposes fish targets hidden in surface clutter, weed beds, thermoclines and other types of underwater cover
• HyperScroll feature locates and displays fish targets at higher boat speeds
• FasTrack vertical bar flasher displays real-time sonar returns and relative strength of each target
• Advanced Signal Processing (ASP) automatically adjusts your settings for the best sonar picture
• Patented greyLINE separates fish from nearby structure and bottom
• Advanced Fish ID shows underwater targets in different sizes of fish symbols
• FishTrack displays target depth readings above fish symbols
• Surface water temperature readings come from a built-in temperature sensor in the transducer
• Zoom with zoom bottom tracking and easy zoom-in/out control
• Selective on/off sonar alarms: Shallow, Deep, Fish and Zone

• 12-parallel channel GPS+WAAS reception with fast, strong satellite lock-ons, precise tracking and position updates every second with the external EGC-12W receiver
• Selectable on/off WAAS reception for enhanced position accuracy to 3 m (under 10 ft) at select locations
• All-new, built-in Eagle background map with enhanced continental US and Hawaii detail including nav aids
• High-speed map screen updates
• Optional MapCreate Accessories Pack with MapCreate CD software that:
  • Lets you create unlimited, custom, detailed maps on MMC or SD memory cards
  • Includes unique, searchable database of streets, addresses and over 700,000 Points-of-Interest (POI) to easily find/identify marinas, restaurants, airports, emergency services and more
• Saves up to 1,000 waypoints, 1,000 event markers and 100 routes (up to 100 waypoints/route)
• 100 saveable plot trails with up to 10,000 points per trail
• 42 graphic icons to mark your favourite spots
• 38 map zoom ranges from 0.04 to 4,000 miles with easy zoom-in/out control
• Compatible with optional plug-and-play Lowrance FreedomMaps, Fishing Hot Spots Elite, LakeMaster Pro Maps and Navionics electronic charts

• Internal back-up memory keeps stored GPS data and sonar settings safe and accessible for years
• Completely sealed and waterproof, even for use in harsh saltwater environments
• Full 1-year warranty
