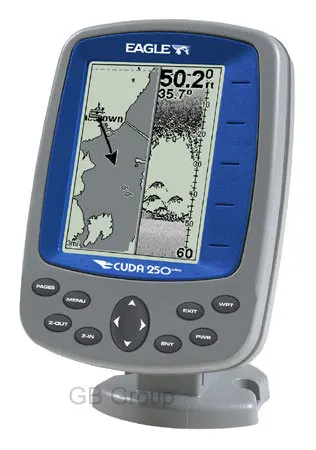

Eagle Cuda 250i GPS Fishfinder

Eagle Cuda 250i GPS Fishfinder

The Cuda 250i GPS Fishfinder makes finding fish and finding your way really straightforward.

As well as offering a full list of fish-finding features in a compact case, the Cuda 250i also incorporates an internal GPS + WAAS antenna and mapping.

Display

• 4-inch (10.2-cm) diagonal screen
• Film SuperTwist LCD
• 240 V x 160 H resolution
• Backlit screen
• 16-level greyscale
• Overlay data feature displays GPS data on sonar screens and sonar data on GPS screens

Sonar

• Depth capability to 600 ft* (183 m) with 800 watts of peak-to-peak power
• High-performance, low-profile 200 kHz Skimmer transducer with built-in temp delivers a wider, more effective fish detection area of up to 60° with high-sensitivity settings; operates at boat speeds up to 70 mph (61 knots)
• FishReveal feature exposes fish targets hidden in surface clutter, weed beds, thermoclines and other types of underwater cover
• HyperScroll feature locates and displays fish targets at higher boat speeds
• Advanced Signal Processing (ASP) automatically adjusts your settings for the best sonar picture
• Patented GrayLine separates fish from nearby structure and bottom
• Advanced Fish I.D. shows underwater targets in different sizes of fish symbols
• FishTrack displays target depth readings above fish symbols
• Surface-water temperature readings come from a built-in temp sensor in the transducer
• Zoom with zoom bottom tracking and easy zoom-in/out control

GPS + WAAS

• Full 12-parallel channel GPS and WAAS receiver with advanced internal satellite antenna
• Built-in high-detail mapping of lakes, rivers, Great Lakes and US coastal waters with enhanced shoreline detail and nav aids
• Full-screen map, map with digital data, steer-to navigation screen and GPS satellite status display choices
• Saves up to 1,000 waypoints, 1,000 event markers and 100 routes (up to 100 waypoints/route)
• 100 saveable plot trails with up to 10,000 points per trail
• 42 graphic icons to mark your favourite spots
• 40 zoom ranges from 0.02 to 4,000 miles with easy zoom-in/out control
• Off course, arrival and anchor GPS alarms

Performance

• Internal back-up memory keeps stored GPS data and sonar settings safe and accessible for years
• Completely sealed and waterproof for use in the harshest environments
• Full 2-year warranty

* Actual depth capabilities depend on transducer configuration and installation, bottom composition and water conditions. All sonar units typically read deeper in fresh water than salt water.
