Icom DS-100 DSC Controller

VHF DSC controller and watch keeping receiver

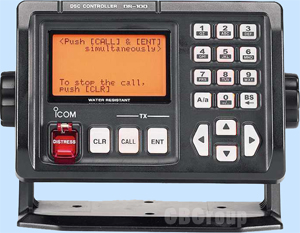

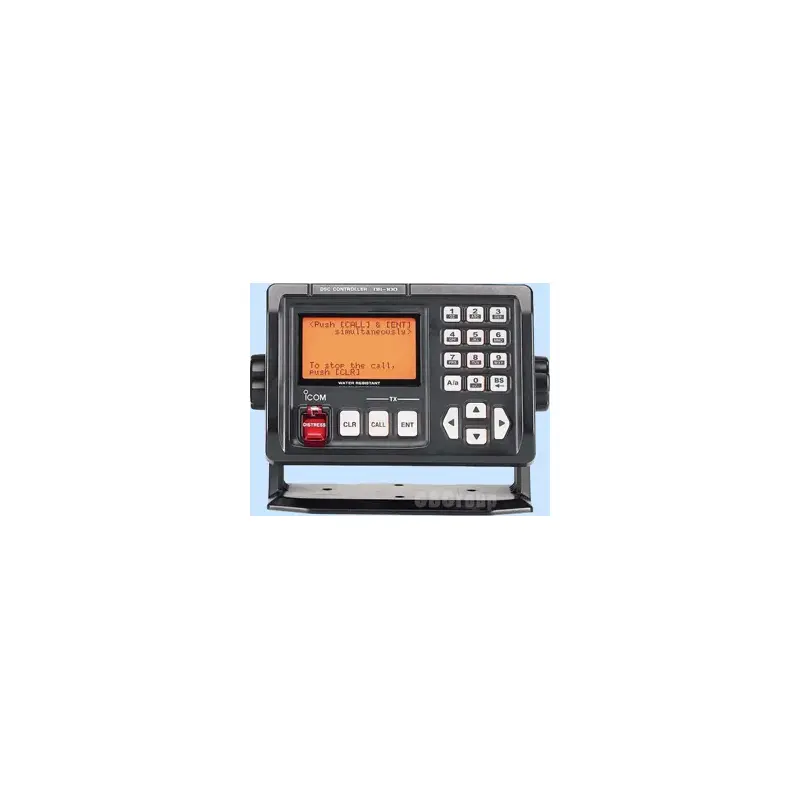

The Icom DS-100 DSC Controller is an independent VHF DSC Class D controller with built-in Channel 70 watch-keeping receiver. Designed to complement the IC-M501, the DS-100 is compact and very easy to use.

The 160-character display and large, clearly labelled controls lend themselves to simple intuitive operation. Although the DS-100 has been designed to complement the IC-M501Euro, it may also be used with other DSC-compatible VHF radios using the correct communications protocol.

Vertically orientated, the DS-100 has been designed to match traditional marine instrumentation and blend with other elements of a vessel's control panel. The DS-100 is also extremely shallow, improving the mounting possibilities where depth is often a crucial factor. In addition, when flush mounted, the DS-100 is waterproof to IPX7, providing reliable GMDSS-compatible communications for the most inhospitable environments such as fly-bridges and RIB's.

The Icom DS-100 has been designed to comply with the latest specifications, specifically EN 301 025 which will exceed minimum requirements for VHF DSC in the UK and throughout Europe.

Specifications

• Dimensions: 165(W) x 110(H) x 84.4(D) mm
• Weight: 1 kg
