Compact Set Top TV (VHF/UHF) Antenna

Portable televisions sets are meant to be portable. Unfortunately portable set-top antennas have always been a compromise, the better performers are usually cumbersome and obtrusive or they are small and neat but invariably give poorer performance.

That is until now - because with the Vision Plus Compact you can have the best of both worlds - a directional antenna with a built-in battery powered booster system which is slim and discrete which then unfolds into a powerful superior performer.

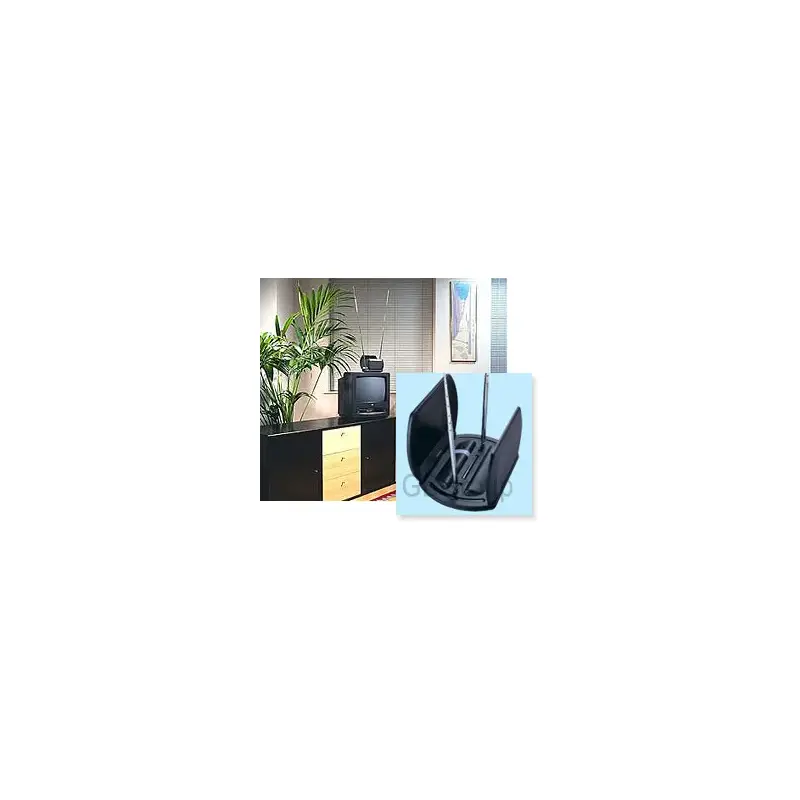

To operate, simply position Compact on or near your television or video recorder and connect up with the TV lead. Then, unfold the two panels, extend the telescopics if you have the VHF model and slide the coloured switch to turn on the booster. Although Compact is directional, it needs less fine positioning when tuning into your favourite programmes and once the best signal has been found, simply adjust Compacts position to further improve reception.

What is revolutionary is its folding design. When required, it cleverly unfolds into a clean functional design tuned for performance. Yet - when not in use - it simply folds away into a stylish slim line case which is discrete when left in situ or can be easily stored away ready for when next needed.

COMPACT UHF/FM/VHF ANTENNA

• Frequency Range VHF 40 - 230 Mhz
• UHF 470 - 860 Mhz
• Dimensions Closed 135 x 180 x 35mm
• Open 140 x 180 x 150mm
• Telescopics 125 to 720mm
• Amplifier Gain 16 db *
• Flatness +2 db
• Noise Figure 3 db
• Output Impedance 75 ohms
• Output 78 dbuv
• Battery 2 x AA Alkaline
• Power Consumption Average 8 ma
• Battery Life 350 Hours
• External Power Supply Regulated 12 volts
• Adapter Plug Size DC Plug 2.5 x 5.5mm
• Guarantee 2 Years

Gain figures must not be judged in isolation. A greater figure does not mean a better picture. Compact is designed for optimum performance

Code 06-7020
