Alden Ssc Platinum 90 Cm Satellite Dish
 |
 |
 |
 |
 |
|

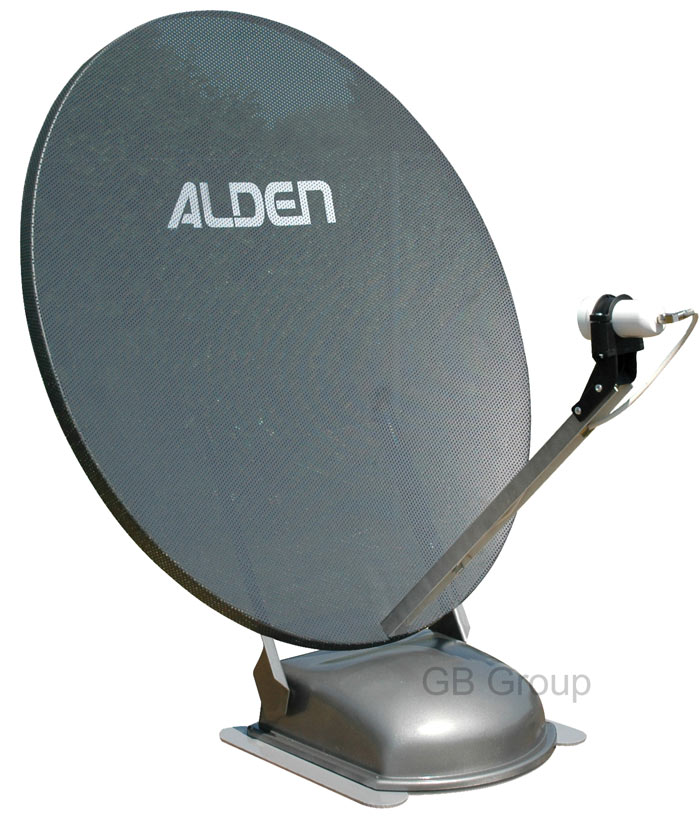

Alden SSC Platinum 90 cm Satellite Dish
For people who want the best chance of picking up BBC, ITV, Channels 4 and 5, even when in southern and eastern parts of Europe, we recommend this automatic satellite TV system from Alden.
At 90 cm, the dish is the biggest available on a roof-mounted system but the dish’s construction means that, even when wind speeds strengthen, the effect on the dish will be kept to a minimum. This is due to the fact that, like domestic SKY dishes, there are thousands of perforations which allow the wind to pass through freely.
Like all Alden SSC systems, this model is very simple to use: switch it on, press a button and the dish rises up and locates the satellite - it’s as easy as that!
Specification
- Operating voltage: 12 V
- Dish type: Raven dish made of high-performance perforated steel
- Dish size: 90 cm
- L.N.B. type: Universal (suitable for digital and analogue transmissions)
- Mounting method: Fixes to roof with Sikaflex and/or screws
- Dish colour: Charcoal grey
- Search method: Uses SSC (satellite search controller) which can be mounted in any convenient place.
- Search controller dimensions: 175 mm W x 125 mm D x 40 mm H
- Typical search time after first use: Less than 1 minute
- Satellite search options: (available satellites will vary according to geographical location) Astra 2, Eurobird, Astra 1, Hotbird, Atlantic Bird
- Receiver options: Can be used with any satellite receiver including SKY receivers
- Remote control: Yes - available as an optional extra (D2195A)
- Weight of dish and motor: 16 kg
- Current consumption during search: Approx.0.9 amps
- Current consumption when in use and search completed: Approx. <0.1 amp
- Dish height when down: 240 mm
- Required roof space area: 170 cm diameter
All technical information for this product is included within the description.
|
|
 |
|
|
|
|
