Alden Platinum Orbiter (ssc)-60 Cm Dish
 |
 |
 |
 |
 |
|

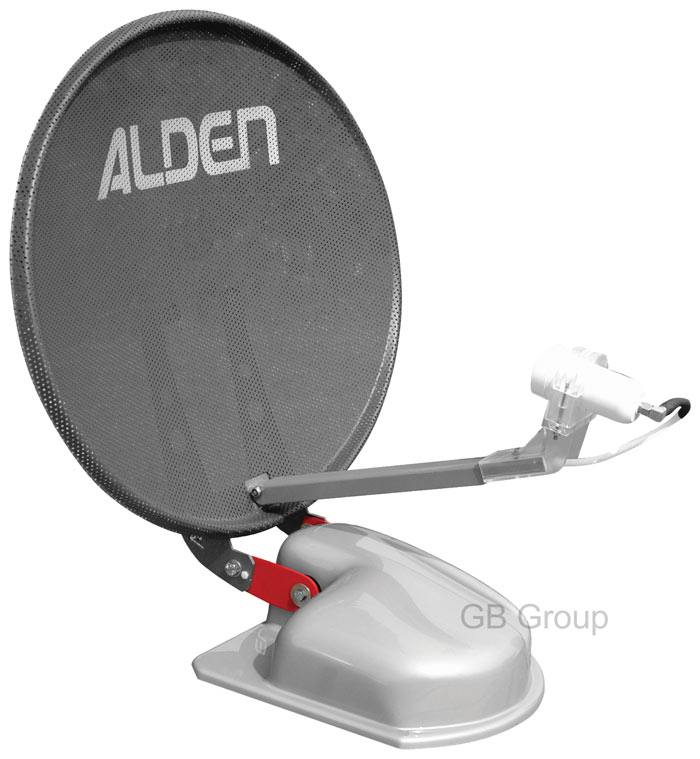

Alden Platinum Orbiter (SSC) - 60 cm Dish
Suitable for use on motorhomes of all sizes as well as other vehicles with suitable mounting places, the Orbiter is a good, general-purpose satellite TV system.
Platinum models are finished with a hard-wearing silver coating and the dish itself is constructed of perforated steel for maximum protection against movement caused by wind.
Any digital satellite receiver can be used with the Orbiter and, if a free to air receiver is used, thousands of channels transmitted via Astra 1, Astra 2, Atlantic Bird, Hotbird and Hispasat can be accessed. These include all those from BBC & ITV to be accessed as well as most U.K. radio stations. (As with all satellite TV systems, the programmes which can be received will vary according to geographical location.)
With its distinctive colour and specially designed elliptical dish, the Orbiter Platinum looks spectacular and performs superbly.
Using the simple SSC controller, various satellites – including Astra 2, Astra 1 & Hotbird - can be easily and quickly located.
A free to air receiver or SKY digibox - or both - can be connected to the system.
Specification
- Operating voltage: 12V
- Dish type: Off-set oval dish made of perforated steel (for greater stability in winds)
- Dish size: 60cm
- L.N.B. type: Universal (suitable for digital and analogue transmissions)
- Mounting method: Fixes to roof with Sikaflex and / or screws
- Dish colour: Graphite grey
- Search method: Can only be used when vehicle is stationary. Uses S.S.C. (satellite search controller) which can be mounted in any convenient place.
- Search controller dimensions: 175mm W x 125mm D x 40mm H
- Typical search time – after first use: Less than one minute
- Satellite search options: (available satellites will vary according to geographical location) Astra 2, Eurobird, Astra 1, Hotbird, Atlantic Bird
- Receiver options: Can be used with any satellite receiver including SKY receivers
- Remote control: Yes
- Weight of dish & motor: 11.7 Kgs
- Current consumption during search: Approx. 0.9 Amps
- Current consumption when in use and search completed: Approx. <0.1 Amp
- Other features: N/A
- Dish height when down: 220mm
- Space required for operation of dish: 105cm diameter
- Warranty: 5 years (subject to correct installation)
All technical information for this product is included within the description.
|
|
 |
|
|
|
|
