Waeco PerfectPower 8024-DC24 20a, 24v to 12v converter

Waeco PerfectPower 8024-DC24 20a, 24v to 12v converter

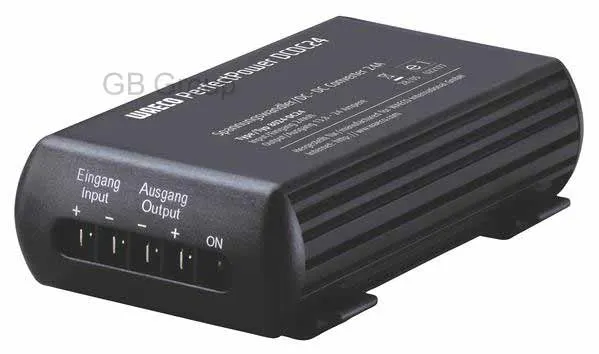

8024-DC24 Inexpensive, super compact voltage converter in switch mode design for operation of 12v, 24a appliances on a 24v battery.

  • High energy efficiency
  • Low heat output
  • e-approved according to 95/54/EC (EMC guidelines for vehicles)
  • Easy to fit with clip-on system
Input voltage 20 to 30 volts DC
No load input current 60 Ma
Nominal input current 18 A
Output voltage 13.8 V ±10%
Nominal output current 20 A
Peak output current 30 A
Efficiency Up to 90 %
Dimensions w x h x d mm 105 x 47 x 158
Weight 0.7 kg
Test Mark e-approved according to 95/54/EC (EMC guidelines for vehicles)
Product description

Waeco PerfectPower 8024-DC24 20a, 24v to 12v converter

Waeco PerfectPower 8024-DC24 20a, 24v to 12v converter

8024-DC24 Inexpensive, super compact voltage converter in switch mode design for operation of 12v, 24a appliances on a 24v battery.

  • High energy efficiency
  • Low heat output
  • e-approved according to 95/54/EC (EMC guidelines for vehicles)
  • Easy to fit with clip-on system
Input voltage 20 to 30 volts DC
No load input current 60 Ma
Nominal input current 18 A
Output voltage 13.8 V ±10%
Nominal output current 20 A
Peak output current 30 A
Efficiency Up to 90 %
Dimensions w x h x d mm 105 x 47 x 158
Weight 0.7 kg
Test Mark e-approved according to 95/54/EC (EMC guidelines for vehicles)
