Waeco 8006-DC24 6A, 24V to 12V Converter

  • Unavailable

There was problem with adding product to the basket. Please contact our support.

Waeco 8006-DC24 6A, 24V to 12V Converter

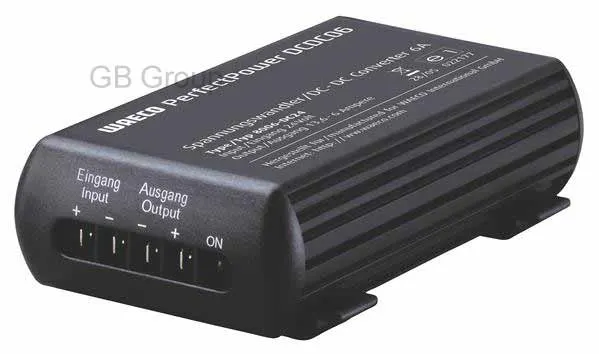

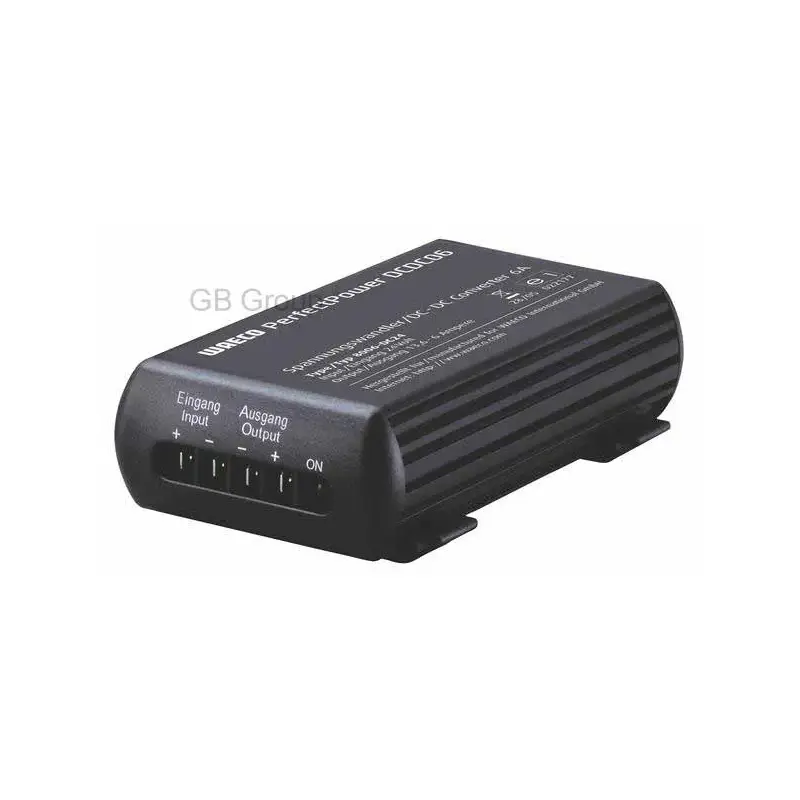

The Waeco 8006-DC24 6A, 24V to 12V Converter is an inexpensive, super-compact voltage converter in switch mode design for operation of 12v, 6a appliances on a 24v battery.

Input voltage 20 to 30 volts
No-load input current 45 mA
Nominal input current 5 A
Output voltage 13.8 volts ± 10%
Nominal output current 6 A
Peak output current 10 A
Efficiency up to 90%
Dimensions (W x H x D) 105 x 47 x 118 mm
Weight 0.45 kg
Quality features High efficiency and low heat output thanks to switch-mode technology, clip-on fixing system
Test marks e-Approved according to 95/54/EC (EMC guidelines for vehicles)
Product description

Waeco 8006-DC24 6A, 24V to 12V Converter

The Waeco 8006-DC24 6A, 24V to 12V Converter is an inexpensive, super-compact voltage converter in switch mode design for operation of 12v, 6a appliances on a 24v battery.

Input voltage 20 to 30 volts
No-load input current 45 mA
Nominal input current 5 A
Output voltage 13.8 volts ± 10%
Nominal output current 6 A
Peak output current 10 A
Efficiency up to 90%
Dimensions (W x H x D) 105 x 47 x 118 mm
Weight 0.45 kg
Quality features High efficiency and low heat output thanks to switch-mode technology, clip-on fixing system
Test marks e-Approved according to 95/54/EC (EMC guidelines for vehicles)
