NOA Solar Panel Mounts
Mount Type: Adjustable Solar Panel Mount
$87.05
Qty:
Retail price: $119.21
Mount Type:
Product description
Reviews
Returns policy

NOA Solar Panel Mounts

NOA Solar Panel Mounts are available in a number of versions to help meet the needs for the installation of solar panels in the way that best suits you and your boat.

All NOA solar panel mounts are manufactured in anodized aluminium. It is recommended that 50-mm poles are used for larger solar panels.

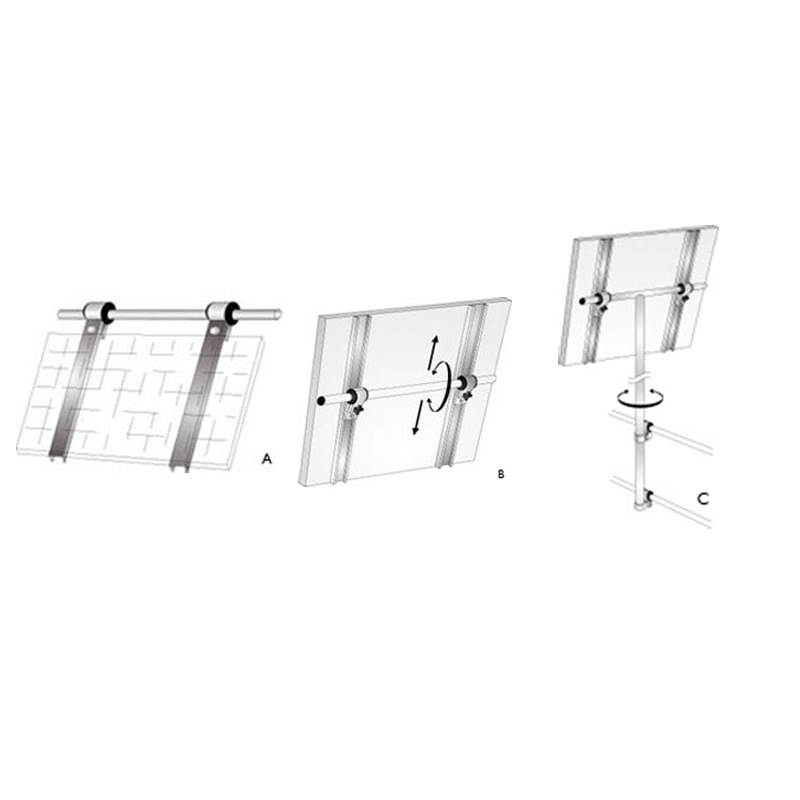

31611: Standard Rail Mount for Solar Panel

This mount will rotate on the rail. The kit comprises two 650-mm stays and two standard NOA 25-mm rail fittings. A hole is drilled into the stays and the panel is attached with bolts or self-tapping screws and mounted on the rail.

31613: Adjustable Rail Mount for Solar Panel

This mount will rotate and slide up and down on the rail. The kit is made up of two 650-mm stays and two adjustable NOA 25-mm rail fittings. A hole is drilled into the stays and the panel is attached with bolts or self-tapping screws and mounted on the rail.

31614: Turning Pole Mount for Solar Panel 30 mm

The solar panel can be rotated during the day to be facing the sun as much as possible. The package includes a 30-mm diameter, 1.8-metre long support pole, two 650-mm stays to fix to the panel, two adjustable NOA 25-mm rail fittings to fix the stays to the cross tube, a connection to fix the cross tube to the support pole, a 25-mm diameter, 600-mm long cross tube and two cross 25-mm/30-mm diameter NOA rail fittings to fix the support pole to the rail. The vertical support pole is not affixed to the deck so it requires to be fixed to two horizontal rails.

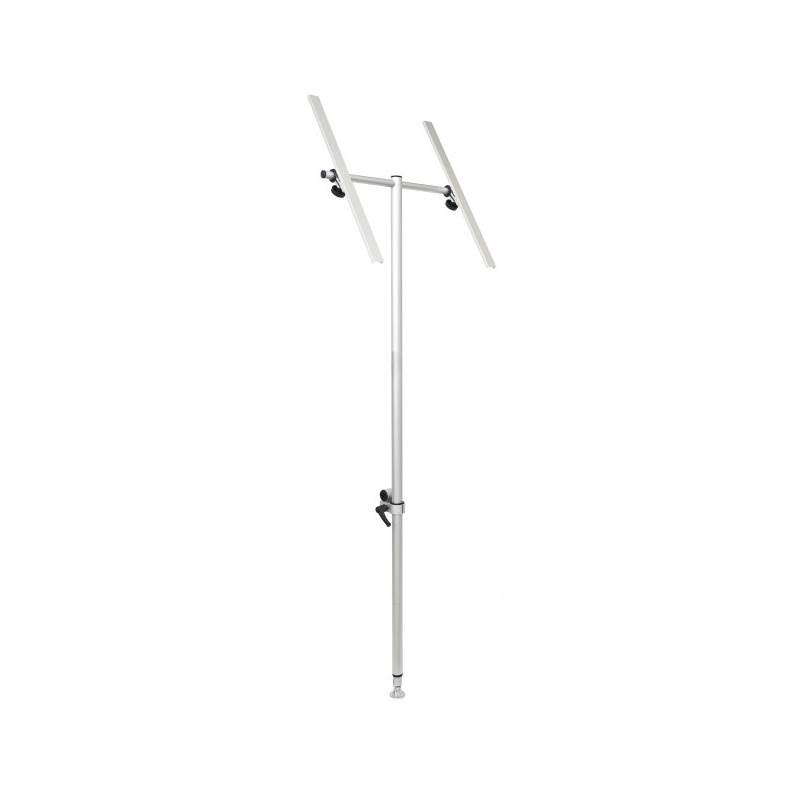

31618: Turning Pole Mount for Solar Panel 40 mm

NOA solar panel mount fastens on the rail and includes all fittings. The vertical support of the turning panel mount can be twisted within the NOA fittings to face different directions and the panel can adjusted about the horizontal to face the sun. The package includes 1.8m length support in 40mm diameter, 650mm stays on a 600mm cross tube, one NOA rail fittings for fixing support to rail and one Adjustable base for screw fixing.
