Glomex Oasis TV Aerial

The antenna with the most compact dimensions in the market.

Features an excellent performance on all UHF frequencies (channels from 21 to 69). It is omni-directional, therefore the orientation is not required. Covered by Glomex Lifetime Warranty, also against the age-ing and the yellowing of its white finish. The high gain totally screened amplifier and low noise factor allow the reception, also of the digital terrestrial television, and has gain control. It can be installed on the wall or dashboard thanks to the mount supplied with the antenna.

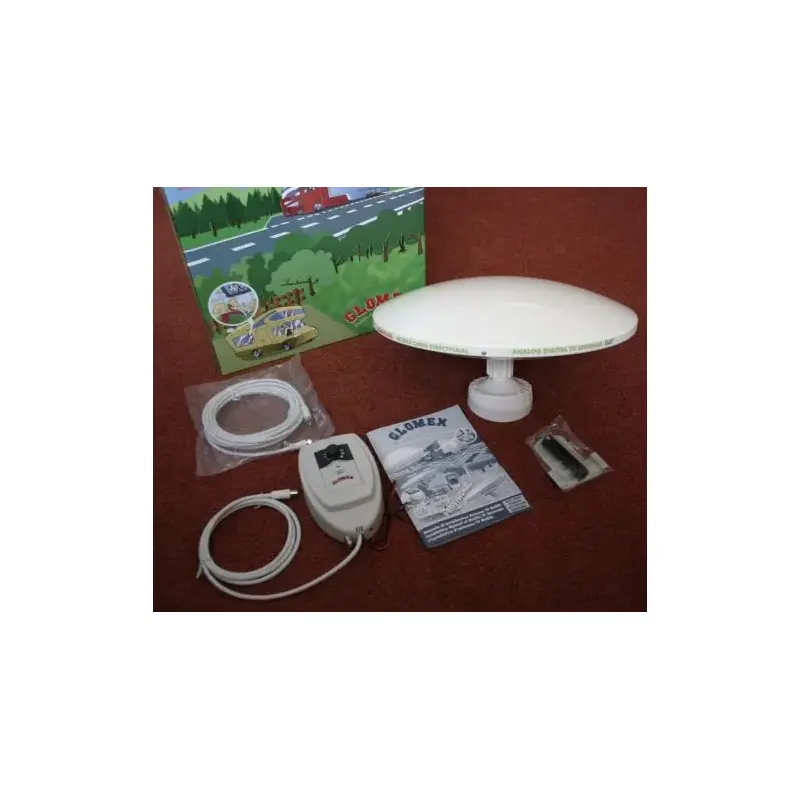

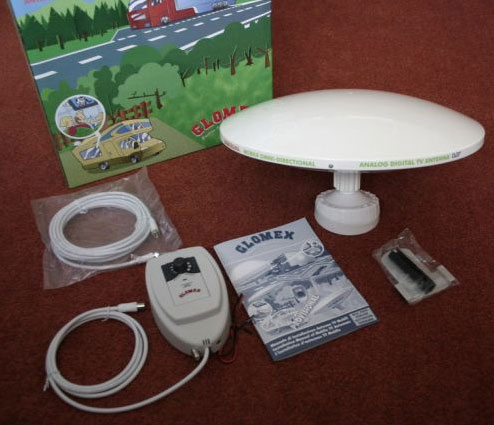

The Oasis comes complete with all the accessories for the installation. Five meter coaxial cable, wall and dashboard mount, amplifier and TV cable. All is included in the standard equipment as well as a roof mount with adjustable inclination. Glomex innovative SHIFT system allows a quick and temporary installation, ensuring a fast and easy change from one vehicle to another. The new suction pad mount T196 is adjustable in inclination and thanks to the pre-wiring of all the cables and connectors, it allows a quick installation.

Specifications

• Angle of reception: 360 degrees
• Frequency range: 40/890MHz
• Noise Factor: 2.2db
• Gain Average: 26db
• Impedance: 75 Ohms
• Amplifier adjustable gain
• Power consumption: 20mA
• Power Supply: 12V dc
• Base diameter: 25mm
• Disc diameter: 250mm
• Height: 120mm
• Weight: 350grs
• TV Set Max: 2
• Construction material: UV resistant ASA
• Termination: connectors F
