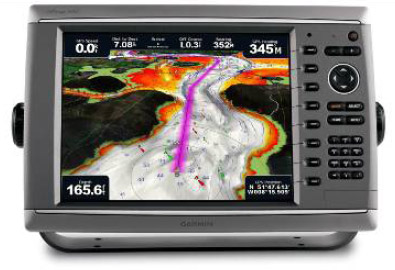

Garmin GPSMap 6012 High Performance GPS Chartplotter

With the Garmin GPSMap 6012 High Performance GPS Chartplotter, Garmin International is pleased to introduce the GPSMap 6000 series.

For mariners who want one of the smoothest, fastest displays in Garmin’s chartplotter line up, the GPSMap 6000 series is clearly in a class by itself.

Incorporating new high-speed graphical processors that are setting a new standard in speed and performance, these top-of-the-line multi-function displays offer Garmin G Motion technology for ultra-smooth map panning and zooming with virtually seamless graphical updating in all dimensions.

This is some of the most stunning marine cartographic technology ever seen in this class of equipment.

Plus, with its new sleek and stylish design the GPSMap 6000 series complements all of today’s modern nav-stations.

The GPSMap 6000 series offers expanded plug-and-play access to onboard sensors with NMEA 2000 and Garmin Marine Network connectivity so it’s easy to access and control a whole array of network assets from any compatible plotter on your boat - everything from autopilot and engine sensors to VHF radios, onboard radar, digital sonar, XM WX Satellite Weather with NEXRAD (US only), AIS traffic monitoring, live-cam security video and more.

Garmin networking puts it all at your fingertips.

All GPSMAP 6000 series chartplotters accept optional BlueChart g2 Vision cards, allowing you to access such premium features as true 3D MarinerEye and underwater FishEye perspective views, plus Auto Guidance capability to suggest the best passages, and 'real-picture' aerial photo reference with marine points-of-interest (POI) location data.

That’s the Garmin GPSMap 6000 series: today’s new high-water mark in network navigation and data access.

Product Features and Specification

• Includes GPS 17x NMEA 2000 – high-sensitivity, WAAS-enabled, 12 parallel channel GPS sensor
• Display: 12.1-inch diagonal, colour XGA sunlight readable, high-brightness display (1024 x 768)
• Unmatched low-light, nighttime visibility – display dims to 0.5 nits and features a backlit keypad
• Garmin G Motion ultra-smooth map panning and zooming – setting a new standard in speed and performance
• With Garmin’s line of xHD marine radars mariners can expect superior radar performance – 2x finer image resolution, user-selectable high-colour presentations and up to 256 levels of intensity information for a wide range of target identification from birds to large ships
• Built in ports: 3 networks ports, 1 NMEA 2000 port, 1 NMEA 0183 port (blue), 1 power port (red), 1 video port (yellow)
• NMEA 2000 certified – compatible with various NMEA 2000 components, including Garmin’s full line up of NMEA 2000 marine sensors, marine VHF radios and autopilots
• Features a pre-loaded worldwide imagery basemap
• Streamlined user interface offers easy selection of functions and features
• Single SD memory card slot for BlueChart g2 and BlueChart g2 Vision cards, as well as saving waypoints, routes and tracks to a SD card which can be shared with others
• Adding optional BlueChart g2 Vision cards provide enhanced navigation features like Auto Guidance, high-resolution satellite imagery, 3D MarinerEye View and 3D FishEye view
• Compatible with optional wireless remote control for added flexibility and greater control
• New sleek and stylish design looks great in any helm
• Flush-mountable case design – removable top and bottom snap covers provide for easier flush mounting
• Easier installation thanks to new colour-coded ports which take plug-and-play to a whole new level
• Four NMEA 0183 inputs, two NMEA 0183 outputs (supports both AIS and DSC), PC output and 2 composite video inputs
• Alpha-numeric keypad for easy data entry
• Auto-dimming display
• Unit dimensions (W x H x D): 15.0 x 9.9 x 5.9 inches
• Alarms for anchor drag, arrival, off-course, clock, low battery voltage and GPS accuracy
• Waterproof: IPX7 – submersible

Standard Configuration

• GPSMap 6000 series MFD
• Top and bottom snap covers
• Bail mount and knobs
• GPS 17x NMEA 2000 (with pole mount, flush mount and under-deck mount adapters)
• Protective front cover
• Power cable
• NMEA 0183 cable
• Video cable
• NMEA 2000 drop cable
• NMEA 2000 10 m backbone cable
• NMEA 2000 power cable
• NMEA 2000 T-connector and terminator kit
• Flush-mount hardware
• Flush-mount gasket
• Marine grommet kit
• Manual case with user documentation
