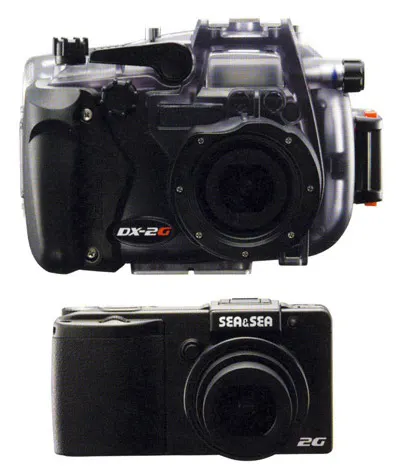

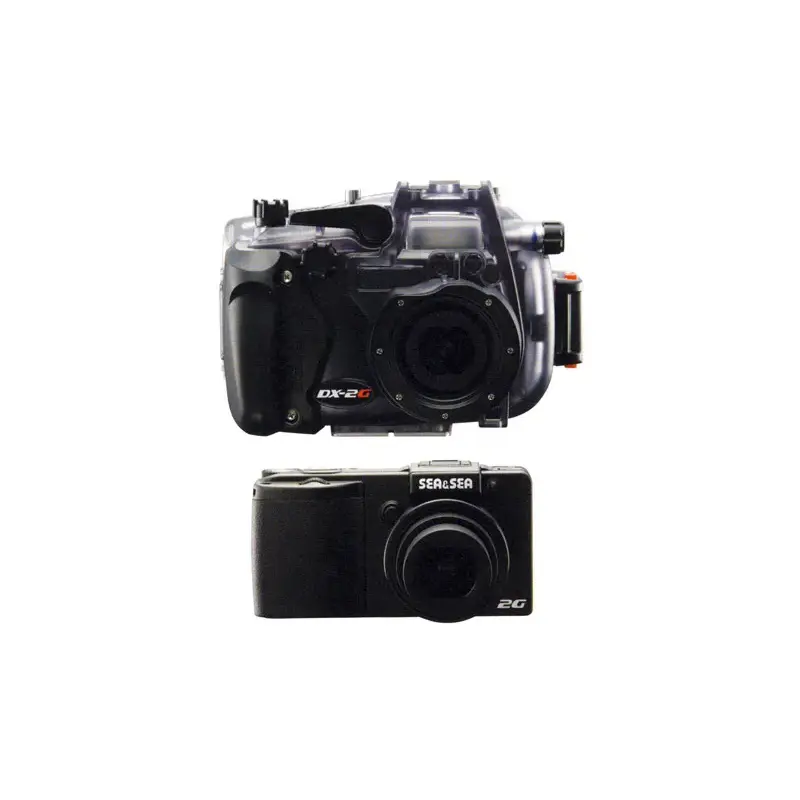

The Sea & Sea DX-2G Camera and Housing Set: from super macro to wide-angle photography.

The Sea & Sea DX-2G Camera and Housing Set features a macro mode for close-up photography, allowing you to get as close as 1 cm (0.4 inches) to the subject at the wide-angle end or 4 cm (1.6 inches) at the telephoto end. Even with a standard lens, you can achieve an angle of view of 24 mm at the wide-angle end.

An evolution in beauty – SEA&SEA mode perfect for underwater photography:

The Sea & Sea DX-2G Camera and Housing Set features SEA&SEA mode, a still image mode for optimal underwater photography.

The colour balance is automatically set so anyone can easily take pictures of beautiful deep blues to enable you to capture the underwater world as vividly in your pictures as in your memories.

The highest reliability with a depth rating of 55 m (180 ft):

Based on the DX-1G, SEA&SEA has applied its state-of-the-art technology to develop the housing design, paying special attention to even finer and more detailed controls.

Now you can effortlessly operate all the capture-related buttons on the DX-2G camera’s body.

Features

• 1/1.7-inch CCD with approximately 12.1 effective megapixels
• High image quality with low noise and rich, smooth gradation range that lets you capture perfect underwater images from highlights to shadows
• Large, high-definition 2.7-inch LCD monitor with 460,000 pixels
• Vivid and bright display that lets you see even the finest details in the picture
• The monitor features a wide angle of view (160° in any direction) and high contrast, and offers excellent visibility underwater
• 24-72 mm, 3.0x optical zoom lens that demonstrates excellent optical qualities for any lighting situation and focal length
• Capable of RAW image photography
• A newly-developed image engine and enlarged buffer memory allow you to take up to 5 continuous shots in RAW mode
• The recording speed has improved to 3 seconds
• Up to three individual settings of the My Setting function allow you to customise recording settings to your preference
• This is convenient to assign frequently used functions to these customized settings.
• Convenient built-in electronic level allows you to easily verify that the camera is level using the level indicator displayed on the LCD monitor

Specification

• Image sensor: Effective 12.1 megapixels (total 12.4 megapixels), 1/1.7-inch primary-colour CCD
• Lens:
• Focal length: f = 5.1 to 15.3 mm (35 mm film equivalent focal length 24 to 72 mm
• With step zoom set, the following fixed focal lengths are possible: 24, 28, 35, 50, 72 mm)
• F-aperture: F2.5 (W) to F4.4 (T)
• Lens construction: 11 elements in 7 groups
• Motion blur reduction: CCD shift method image stabiliser
• Zoom:
• Optical zoom: 3.0x (35 mm film equivalent focal length 24 to 72 mm)
• Digital zoom: 4.0x, up to 12 times (288 mm equivalent)
• Shooting distance (from the front of the lens):
• Normal shooting: ~30 cm to infinity (W & T)
• Macro shooting: ~1.0 cm to infinity (W), approx. 4.0 cm to infinity (T), approx. 1.0 cm to infinity (zoom macro)
• Shutter speed:
• Still image: 180, 120, 60, 30, 15, 8, 4, 2, 1-1/2000 sec
• Movie image: 1/30-1/2000 sec
• Number of recorded pixels:
• Still image: [4:3] 4000x3000, 3264x2448, 2592x1944, 2048x1536, 1280x960, 640x480 [3:2], 3984x2656, [1:1] 2992x2992
• Text: 4000x3000, 2048x1536
• Movie: 640x480, 320x240
• Picture quality mode: F (fine)/N (normal)/RAW (DNG file format)
• ISO sensitivity (standard output sensitivity): AUTO/AUTO-HI/ISO64/ISO100/ ISO200/ISO400/ISO800/ISO1600
• Flash: Auto (during low light and when subject is backlit)/red-eye flash/flash on/flash synchro/manual flash (full, 1/1.4, 1/2, 1/2.8, 1/4, 1/5.6, 1/8, 1/11, 1/16, 1/22, 1/32)/flash off ~20 cm to 5.0 m (wide angle), ~15 cm to 3.0 m (telephoto) (ISO AUTO/ISO 400, from the front of the lens) ±2.0 EV (1/3 EV steps)
• Focus mode: Multi AF (CCD method)/spot AF (CCD method)/manual focus/snap/infinity (with focus lock and AF auxiliary light)
• Exposure metering mode: Multi light metering (256 segments)/centre-weighted light metering/spot metering (TTL-CCD metering, AE lock available)
• Exposure mode: Programme AE/aperture priority AE/manual exposure
• Exposure compensation: Manual exposure compensation (+2.0 to -2.0 EV in 1/3 EV steps); auto bracket function (-0.5 EV, ±0, +0.5 EV/-0.3 EV, ±0, +0.3 EV)
• White balance mode: Auto/outdoors/cloudy/incandescent lamp/fluorescent lamp/manual settings/detail, white balance bracket function
• Recording media: SD memory card, SDHC memory card (up to 16 GB), internal memory (~54 MB)
• Storage capacity/time *1 (with 1 GB recording media): RAW (12M): 43, F4000 (12M): 207, N4000 (12M): 359, RAW 3:2 (10M): 49, F 3:2 (10M): 234, N 3:2 (10M): 405, RAW 1:1 (10M): 57, F1:1 (9M): 276, N 1:1 (9M): 479, N2364 (8M): 534, N2592 (5M): 839, N2048 (3M): 1313, N1280 (1M): 2323, N640 (VGA): 8632 640x480 (15 frames/sec): 24 min 2 sec, 640x480 (30 frames/sec): 11 min 59 sec, 320x240 (15 frames/sec): 46 min. 19 sec, 320x240 (30 frames/sec): 24 min 2 sec
• Recording format: JPEG (Exif ver2.21), RAW (DNG) AVI (open DML motion JPEG format compliant)
• Shooting mode: Auto shooting mode/programme shift mode/aperture priority mode/manual exposure mode/tcene mode (movie/portrait/SEA&SEA/ landscape/nightscape/zoom macro/skew correct mode/text mode)/my settings mode
• Other major shooting functions: Cont/S-cont/M-cont, self-timer (operation time: ~10 sec/2 sec), interval shooting (shooting interval: 5 sec to 3 hr, in increments of 5 sec), colour bracket, B&W (TE), noise reduction, histogram, grid guide, electronic level, hot shoe
• Other major playback functions: Auto rotate, grid view, enlarged view (maximum 16 times), resize
• LCD monitor: 2.7-inch Transparent amorphous silicon TFT LCD, ~460,000 dots
• Interface: USB2.0 (high-speed USB) Mini-B, mass storage, audio output 1.0Vp-p (75O)/Video OUT
• Video signal format: NTSC/PAL
• Dimensions (WxHxD): 111.6x58.0x25.0 mm/4.5x2.3x1.0 inch (excluding projecting parts)
• Weight: ~208 g/7.3 oz (excluding battery, SD memory card and strap)
• Power Source: Rechargeable battery (DB60) x 1, AAA alkaline battery x 2, AAA oxlyde battery x 2, AC adapter (AC-4c optional) 3.8V
• Shooting capacity: Based on CIPA standard DB60 usage: ~350 pictures, AAA alkaline battery usage: ~30 pictures
• Operating temperature: 0-40°C

*1 The estimated number of pictures that can be recorded or the estimated recording time.
