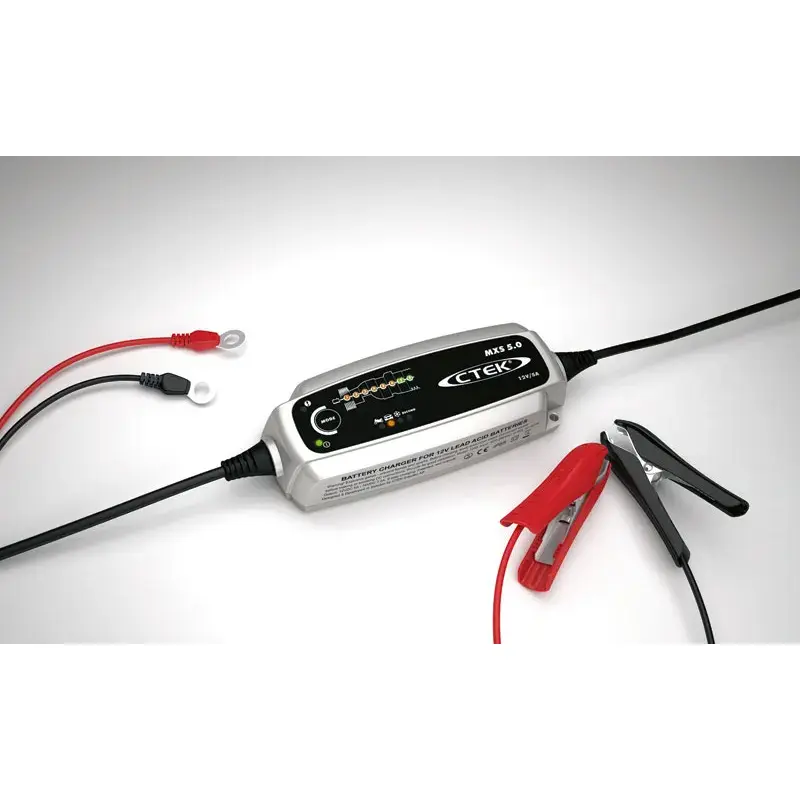

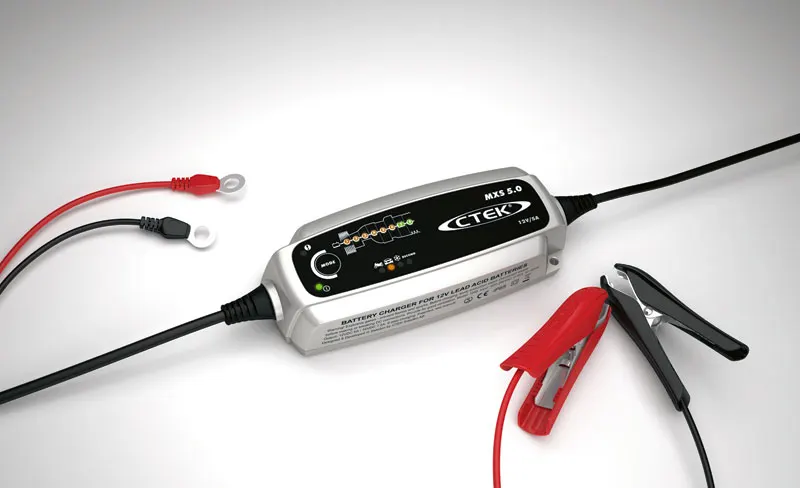

CTEK MXS 5.0 Battery Charger

The CTEK MXS 5.0 Battery Charger offers state-of-the-art technology that was previously only found in CTEK’s professional product range.

The charger can solve a broad range of battery-related problems and is the perfect unit for those with high demands.

The MXS 5.0 offers features such as battery diagnosis that shows if a battery can receive and retain a charge, a special reconditioning function that restores stratified and deeply discharged batteries, unique maintenance charging, a mode for optimised charging during cold winter days and the charging of demanding AGM batteries (e.g. Optima).

The unique display allows the user to follow the entire charging process.

The MXS 5.0 is a fully automatic 8-step charger that delivers selectable 0.8A or 5A to 12V batteries from 1.2 to 110 Ah and is suitable for maintenance charging up to 160 Ah.

The MXS 5.0 is IP 65 classified (splash- and dustproof), designed to protect vehicle electronics and non-sparking, reverse polarity-protected and shortcircuit-proof.

It is delivered with a 5-year warranty.

Features

  • Auto: Fully automatic for optimal charging
  • 12V: For all lead-acid batteries
  • Step 7: Fully charged battery
  • Step 8: Maintenance charging
  • COLD/AGM: Charging in cold conditions and AGM batteries
  • RECOND: Recondition of deeply discharged batteries

Specification

  • Volt: 12V
  • Rated voltage AC: 220–240VAC, 50–60 Hz
  • Charging voltage: SMALL, NORMAL: 14.4V, COLD/AGM: 14.7V, RECOND: 15.8V
  • Min battery voltage: 2.0V
  • Charging current: 5A max
  • Current, mains: 0.65A rms (at full charging current)
  • Back current drain: <1 Ah/month
  • Ripple: <4%
  • Ambient temperature: -20°C to +50°C, output power is reduced automatically at high temperatures
  • Charger type: 8-step, fully automatic charging cycle
  • Battery types: All types of 12V lead-acid batteries (WET, MF, Ca/Ca, AGM and GEL)
  • Battery capacity: 1.2–110 Ah up to 160 Ah for maintenance
  • Dimensions (L x W x H): 168 x 65 x 38 mm
  • Insulation class: IP65
  • Weight: 0.6 kg
Product description

CTEK MXS 5.0 Battery Charger

The CTEK MXS 5.0 Battery Charger offers state-of-the-art technology that was previously only found in CTEK’s professional product range.

The charger can solve a broad range of battery-related problems and is the perfect unit for those with high demands.

The MXS 5.0 offers features such as battery diagnosis that shows if a battery can receive and retain a charge, a special reconditioning function that restores stratified and deeply discharged batteries, unique maintenance charging, a mode for optimised charging during cold winter days and the charging of demanding AGM batteries (e.g. Optima).

The unique display allows the user to follow the entire charging process.

The MXS 5.0 is a fully automatic 8-step charger that delivers selectable 0.8A or 5A to 12V batteries from 1.2 to 110 Ah and is suitable for maintenance charging up to 160 Ah.

The MXS 5.0 is IP 65 classified (splash- and dustproof), designed to protect vehicle electronics and non-sparking, reverse polarity-protected and shortcircuit-proof.

It is delivered with a 5-year warranty.

Features

  • Auto: Fully automatic for optimal charging
  • 12V: For all lead-acid batteries
  • Step 7: Fully charged battery
  • Step 8: Maintenance charging
  • COLD/AGM: Charging in cold conditions and AGM batteries
  • RECOND: Recondition of deeply discharged batteries

Specification

  • Volt: 12V
  • Rated voltage AC: 220–240VAC, 50–60 Hz
  • Charging voltage: SMALL, NORMAL: 14.4V, COLD/AGM: 14.7V, RECOND: 15.8V
  • Min battery voltage: 2.0V
  • Charging current: 5A max
  • Current, mains: 0.65A rms (at full charging current)
  • Back current drain: <1 Ah/month
  • Ripple: <4%
  • Ambient temperature: -20°C to +50°C, output power is reduced automatically at high temperatures
  • Charger type: 8-step, fully automatic charging cycle
  • Battery types: All types of 12V lead-acid batteries (WET, MF, Ca/Ca, AGM and GEL)
  • Battery capacity: 1.2–110 Ah up to 160 Ah for maintenance
  • Dimensions (L x W x H): 168 x 65 x 38 mm
  • Insulation class: IP65
  • Weight: 0.6 kg
